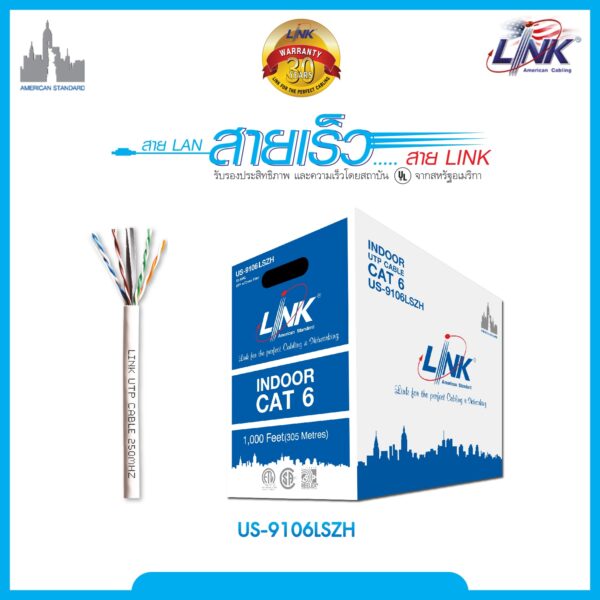

Specifications LINK US-9106LSZH
| Features | Description |
|---|---|
| Device Type | Indoor Horizontal UTP LAN Cable |
| Cable Category | CAT6 U/UTP LSZH Cable |
| Conductor | Solid Bare Copper 23 AWG |
| Core Count | 4 Pairs (8 Wires) |
| Bandwidth | 250 MHz |
| Cable Construction | U/UTP with Cross Filler Structure |
| Insulation | High Density Polyethylene (HDPE) |
| Outer Jacket | Lead Free FR-LSZH White Jacket |
| Cable Length | 305 Meter / Reel |
| Application | Indoor Horizontal Cabling, Gigabit Ethernet, PoE, PoE+, Data, Voice, Video and Enterprise Network Infrastructure |
| Cable Standard | ANSI/TIA-568.2-E Category 6, ISO/IEC 11801:2017 Class E |
|---|---|
| Category | Category 6 U/UTP |
| Frequency | 250 MHz |
| Conductor Size | 23 AWG Solid Bare Copper |
| Number of Pairs | 4 Pairs (8 Conductors) |
| Cross Filler | FRPE Cross Filler for Pair Separation |
| Cable Diameter | 5.9 ± 0.2 mm |
| Characteristic Impedance | 100 ± 5 Ohms |
| Packaging | 305 Meter Reel |
| SMART FEATURES | |
|---|---|
| CAT6 Performance | Supports High-Speed Data Transmission up to Gigabit Ethernet and Multi-Gigabit Network Applications |
| Cross Filler Design | Improves Pair Separation and Reduces Crosstalk for Better Signal Performance |
| LSZH Flame Retardant Jacket | Low Smoke Zero Halogen Jacket Reduces Toxic Smoke and Corrosive Gas During Fire Conditions |
| PoE Support | Supports IEEE 802.3af PoE, IEEE 802.3at PoE+ and Modern PoE Network Applications |
| Reliable Connectivity | Designed for Data, Voice, Video, VoIP and Structured Cabling Systems |
| GENERAL | |
|---|---|
| Cable Type | CAT6 U/UTP Indoor LSZH LAN Cable |
| Installation Method | Indoor Horizontal Cabling Installation |
| Minimum Bend Radius | 4 × Cable Diameter |
| Installation / Operating Temperature | -20°C to +75°C |
| Storage Temperature | -20°C to +80°C |
| Standards Compliance | ANSI/TIA-568.2-E, ANSI/TIA-568.2-D, ANSI/TIA-568-C.2, ISO/IEC 11801:2017 Class E, EN 50173-1 Category 6, EN 50288-6-1, IEC 61156-5, IEC 60332-1, IEC 60754-1, IEC 60754-2, IEC 61034-1, IEC 61034-2, ICEA S-102-700, UL 444, CSA 22.2 No.214, RoHS |
| Warranty | 30 Years |
Note: The LINK US-9106LSZH is a CAT6 U/UTP indoor LAN cable featuring 23 AWG solid bare copper conductors, 4-pair construction with cross filler, and 250 MHz bandwidth performance. It uses an LSZH (Low Smoke Zero Halogen) jacket designed to reduce toxic smoke and corrosive gas emissions during fire conditions, making it suitable for enterprise structured cabling systems and indoor network installations.
Important: The LINK US-9106LSZH supports high-speed Ethernet, PoE and PoE+ applications. Its CAT6 performance provides reliable transmission for data, voice, video, VoIP and modern network infrastructure, while the LSZH jacket improves safety in indoor environments where fire protection is required.
