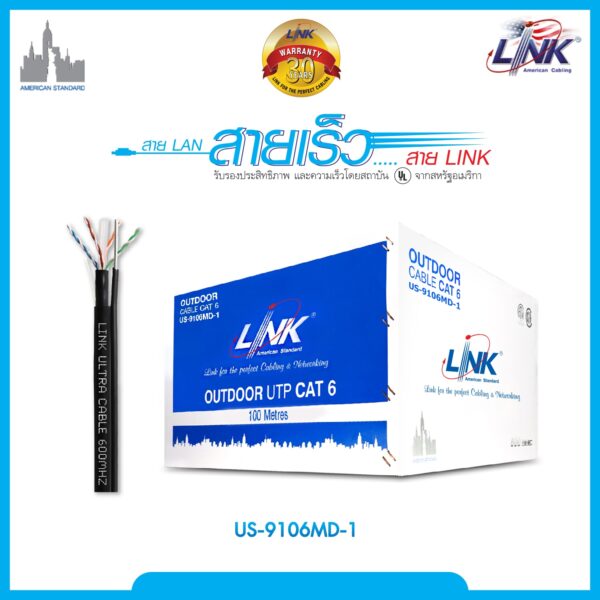

Specifications LINK US-9106MD-1
| Features | Description |
|---|---|
| Device Type | Outdoor/Indoor UTP LAN Cable with Drop Wire |
| Cable Category | CAT6 U/UTP Outdoor Double Jacket Cable |
| Conductor | Solid Bare Copper 23 AWG |
| Core Count | 4 Pairs (8 Wires) |
| Bandwidth | 600 MHz |
| Cable Construction | U/UTP with FRPE Cross Filler and Double Jacket |
| Drop Wire | Galvanized Steel Messenger Wire 1.3 mm |
| Inner Jacket | Lead-Free FR-PVC Black Jacket |
| Outer Jacket | UV-Proof PE Black Jacket |
| Cable Length | 100 Meter / Reel in Box |
| Application | Outdoor Aerial, Building-to-Building, CCTV, IP Camera, Gigabit Ethernet, 10G Ethernet, PoE, VoIP and Network Infrastructure |
| Cable Standard | ANSI/TIA-568.2-D Category 6, ISO/IEC 11801:2017 Class E |
|---|---|
| Category | Category 6 U/UTP Outdoor |
| Frequency | 600 MHz |
| Conductor Size | 23 AWG Solid Bare Copper |
| Number of Pairs | 4 Pairs (8 Conductors) |
| Cross Filler | FRPE Cross Filler |
| Drop Wire | Galvanized Steel Wire 1.3 ± 0.2 mm |
| Cable Diameter | 7.4 ± 0.2 mm |
| Overall Diameter | 11.5 ± 0.2 mm |
| Characteristic Impedance | 100 ± 15 Ohms, 1 MHz to 600 MHz |
| Packaging | 100 Meter / Reel in Box |
| SMART FEATURES | |
|---|---|
| CAT6 High Performance | Supports High-Speed Network Applications with Bandwidth up to 600 MHz and 10 Gigabit Ethernet |
| Double Jacket Design | Inner FR-PVC and UV-Proof PE Outer Jacket Provide Additional Protection for Outdoor Installation |
| Integrated Drop Wire | Galvanized Steel Messenger Wire Provides Mechanical Support for Aerial and Suspended Outdoor Cable Installation |
| Solid Bare Copper | 23 AWG Solid Bare Copper Conductors Provide Reliable Signal Transmission and Stable Network Performance |
| PoE Support | Supports IEEE 802.3af PoE and IEEE 802.3at PoE+ Applications |
| GENERAL | |
|---|---|
| Cable Type | CAT6 U/UTP Outdoor Double Jacket Cable with Drop Wire |
| Installation Method | Outdoor Aerial, Building-to-Building and Pole Installation |
| Minimum Bend Radius | 4 × Cable Diameter |
| Installation / Operating Temperature | -40°C to +75°C |
| Storage Temperature | -40°C to +80°C |
| Flame Rating | CMX |
| Standards Compliance | ANSI/TIA-568.2-D, ANSI/TIA-568-C.2, ISO/IEC 11801:2017 Class E, EN 50173-1 Category 6, EN 50288-6-1, IEC 61156-5, ICEA S-102-700 Category 6, UL 444 / NEC Article 800, ASTM D4566-98, CSA 22.2 No.214, RoHS |
| Warranty | 30 Years |
Note: The LINK US-9106MD-1 is a CAT6 U/UTP outdoor LAN cable featuring 23 AWG solid bare copper conductors, 4-pair construction and 600 MHz bandwidth performance. It uses a double jacket construction with a lead-free FR-PVC inner jacket and UV-proof PE outer jacket, together with a 1.3 mm galvanized steel drop wire for mechanical support during aerial installations. The cable is supplied in a 100-meter Reel in Box package.
Important: The LINK US-9106MD-1 supports Gigabit Ethernet and 10 Gigabit Ethernet applications, with 10G BASE-T designed for appropriate cable lengths. It also supports IEEE 802.3af PoE and IEEE 802.3at PoE+ applications. The double-jacket construction and integrated galvanized steel messenger wire make it suitable for outdoor CCTV, IP Camera, building-to-building and aerial network installations.
