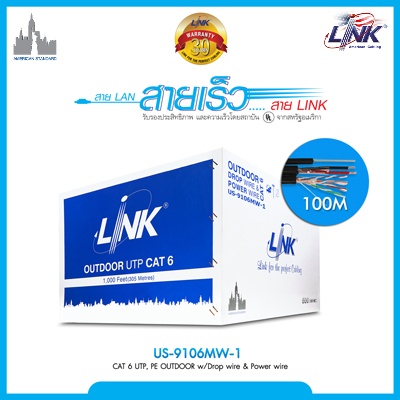

Specifications LINK US-9106MW-1
| Features | Description |
|---|---|
| Device Type | Outdoor CAT6 UTP LAN Cable with Drop Wire and Power Wire |
| Cable Category | CAT6 U/UTP Outdoor Cable with Drop Wire and Power Wire |
| Conductor | Solid Bare Copper 23 AWG |
| Core Count | 4 Pairs (8 Wires) |
| Bandwidth | 600 MHz |
| Cable Construction | U/UTP with FRPE Cross Filler, Drop Wire and Power Wire |
| Power Wire | 18 AWG Stranded Bare Copper, 2 Conductors |
| Drop Wire | Galvanized Steel Wire 1.3 mm |
| Outer Jacket | UV-Proof PE Black Jacket |
| Cable Length | 100 Meter / Reel in Box |
| Application | Outdoor Aerial Cabling, Building-to-Building Cabling, CCTV, IP Camera, Gigabit Ethernet, 10G Ethernet, PoE, PoE+, Data and Network Infrastructure |
| Cable Standard | ANSI/TIA-568.2-E Category 6, ISO/IEC 11801:2017 Class E |
|---|---|
| Category | Category 6 U/UTP Outdoor |
| Frequency | 600 MHz |
| Conductor Size | 23 AWG Solid Bare Copper |
| Number of Pairs | 4 Pairs (8 Conductors) |
| Power Wire | 24 × 0.2 mm Stranded Bare Copper (18 AWG), 2 Conductors |
| Drop Wire | Galvanized Steel Wire 1.3 mm |
| Cross Filler | FRPE |
| Jacket | UV-Proof PE Black |
| Cable Diameter | 6.5 mm |
| Overall Diameter | 16.5 mm |
| Characteristic Impedance | 100 ± 15 Ohms, 1 MHz to 600 MHz |
| Propagation Delay | 536 ns/100 m Max. at 600 MHz |
| Delay Skew | 30 ns Max. |
| Packaging | 100 Meter / Reel in Box |
| SMART FEATURES | |
|---|---|
| CAT6 High Performance | Supports High-Speed Network Applications with Bandwidth up to 600 MHz and 10 Gigabit Ethernet |
| Integrated Drop Wire | Galvanized Steel Messenger Wire Provides Mechanical Support for Aerial and Suspended Outdoor Cable Installation |
| Built-in Power Wire | Two Integrated 18 AWG Stranded Bare Copper Power Wires Provide Separate Power Connections for Outdoor Devices |
| UV-Proof Outdoor Jacket | Black PE Jacket Provides Protection Against UV Radiation, Moisture and Outdoor Environmental Conditions |
| Outdoor Installation Ready | Combines LAN Cable, Power Wire and Messenger Wire in a Single Cable for Convenient Outdoor Installation |
| GENERAL | |
|---|---|
| Cable Type | CAT6 U/UTP Outdoor PE Cable with Drop Wire and Power Wire |
| Installation Method | Outdoor Aerial, Building-to-Building and Pole Installation |
| Minimum Bend Radius | 4 × Cable Diameter |
| Installation / Operating Temperature | -40°C to +75°C |
| Storage Temperature | -40°C to +80°C |
| Flame Rating | CMX |
| Standards Compliance | ANSI/TIA-568.2-E, ANSI/TIA-568.2-D, ANSI/TIA-568-C.2, ISO/IEC 11801:2017 Class E, EN 50173-1 Category 6, EN 50288-6-1, IEC 61156-5, ICEA S-102-700 Category 6, UL 444 / NEC Article 800, ASTM D4566-98, CSA 22.2 No.214, RoHS |
| Warranty | 30 Years |
Note: The LINK US-9106MW-1 is a CAT6 U/UTP outdoor LAN cable featuring 23 AWG solid bare copper conductors, 4-pair construction and 600 MHz bandwidth performance. It combines two integrated 18 AWG stranded bare copper power wires with a 1.3 mm galvanized steel drop wire, providing both dedicated power connections and mechanical support for outdoor aerial installations. The cable uses a UV-proof PE black jacket and is supplied in a 100-meter Reel in Box package.
Important: The LINK US-9106MW-1 supports 10/100/1000 BASE-T, 2.5G/5G BASE-T and 10G BASE-T applications, together with IEEE 802.3af PoE, IEEE 802.3at PoE+ and IEEE 802.3bt Type 4 applications. It is suitable for outdoor CCTV, IP Camera, building-to-building network connections and installations along poles where network connectivity, power and mechanical cable support are required.
