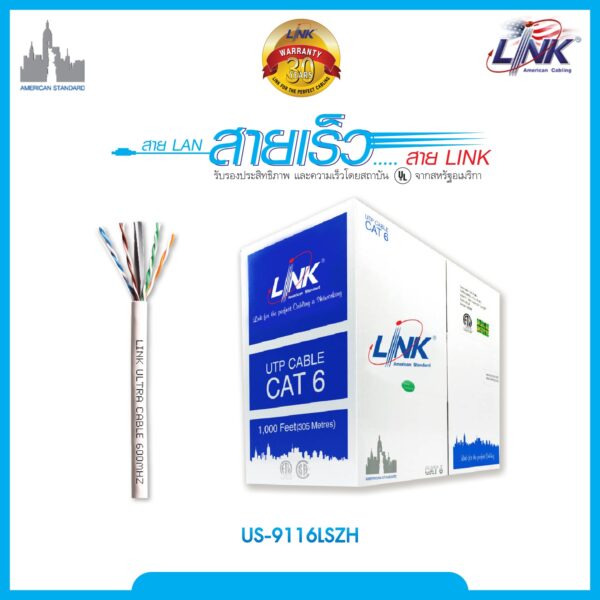

Specifications LINK US-9116LSZH
| Features | Description |
|---|---|
| Device Type | Indoor Horizontal UTP LAN Cable |
| Cable Category | CAT6 U/UTP Ultra LSZH Cable |
| Conductor | Solid Bare Copper 23 AWG |
| Core Count | 4 Pairs (8 Wires) |
| Bandwidth | 600 MHz |
| Cable Construction | U/UTP with Cross Filler Structure |
| Insulation | High Density Polyethylene (HDPE) |
| Outer Jacket | Low Smoke Zero Halogen (LSZH) White Jacket |
| Cable Length | 305 Meter / Reel |
| Application | Horizontal Cabling, Building Backbone, 10G Ethernet, PoE, PoE+, Data, Voice, Video and Enterprise Network Infrastructure |
| Cable Standard | ANSI/TIA-568.2-E Category 6, ISO/IEC 11801:2017 Class E |
|---|---|
| Category | Category 6 U/UTP Ultra |
| Frequency | 600 MHz |
| Conductor Size | 23 AWG Solid Bare Copper |
| Number of Pairs | 4 Pairs (8 Conductors) |
| Cross Filler | FRPE Cross Filler for Pair Separation |
| Cable Diameter | 6.4 ± 0.2 mm |
| Characteristic Impedance | 100 ± 15 Ohms |
| Packaging | 305 Meter Pull Box / Reel |
| SMART FEATURES | |
|---|---|
| CAT6 Ultra Performance | Supports High-Speed Data Transmission up to 10 Gigabit Ethernet and Multi-Gigabit Network Applications |
| 600 MHz Bandwidth | Provides Enhanced Transmission Performance with Improved Signal Quality and Reduced Interference |
| Cross Filler Design | Maintains Pair Separation and Reduces Crosstalk for Stable Network Performance |
| LSZH Flame Retardant Jacket | Low Smoke Zero Halogen Jacket Reduces Toxic Smoke and Corrosive Gas Emissions During Fire Conditions |
| PoE Support | Supports IEEE 802.3af PoE, IEEE 802.3at PoE+ and IEEE 802.3bt Type 4 Applications |
| GENERAL | |
|---|---|
| Cable Type | CAT6 U/UTP Ultra Indoor LSZH LAN Cable |
| Installation Method | Indoor Horizontal Cabling and Building Backbone Installation |
| Minimum Bend Radius | 4 × Cable Diameter |
| Installation / Operating Temperature | -20°C to +75°C |
| Storage Temperature | -20°C to +80°C |
| Standards Compliance | ANSI/TIA-568.2-E, ANSI/TIA-568.2-D, ANSI/TIA-568-C.2, ISO/IEC 11801:2017 Class E, EN 50173-1 Category 6, EN 50288-6-1, IEC 61156-5, IEC 60332-1, IEC 60754-1, IEC 60754-2, IEC 61034-1, IEC 61034-2, ICEA S-102-700, UL 444, CSA 22.2 No.214, ETL, 3P Verified, RoHS |
| Warranty | 30 Years |
Note: The LINK US-9116LSZH is a CAT6 U/UTP Ultra indoor LAN cable featuring 23 AWG solid bare copper conductors, 4-pair construction with cross filler, and 600 MHz bandwidth performance. It uses an LSZH (Low Smoke Zero Halogen) jacket designed to reduce toxic smoke and corrosive gas emissions during fire conditions, making it suitable for enterprise structured cabling systems and indoor network installations.
Important: The LINK US-9116LSZH supports high-speed network applications including 10G BASE-T (limited distance), 2.5G/5G BASE-T, Gigabit Ethernet, PoE, PoE+ and IEEE 802.3bt Type 4. Its CAT6 Ultra 600 MHz performance provides reliable transmission for data, voice, video, VoIP and modern enterprise network infrastructure.
