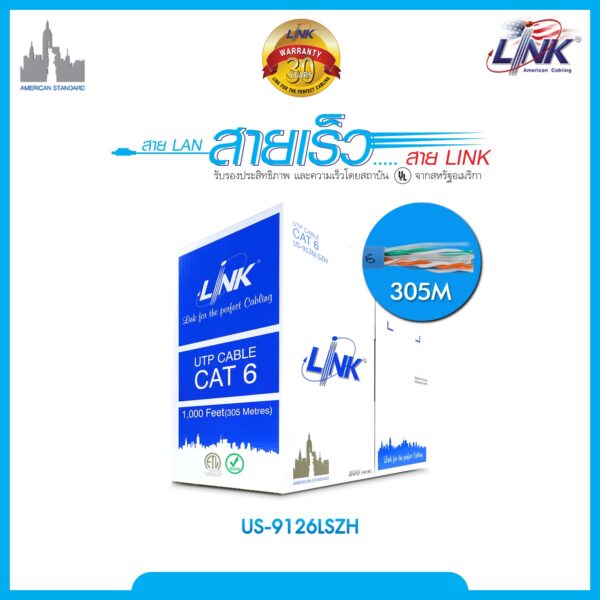

Specifications LINK US-9126LSZH
| Features | Description |
|---|---|
| Device Type | Indoor Horizontal UTP LAN Cable / Patch Cord Cable |
| Cable Category | CAT6 U/UTP Stranded LSZH Cable |
| Conductor | Stranded Bare Copper 24 AWG |
| Core Count | 4 Pairs (8 Wires) |
| Bandwidth | 600 MHz |
| Cable Construction | U/UTP with Cross Filler Structure |
| Insulation | High Density Polyethylene (HDPE) |
| Outer Jacket | Lead Free FR-LSZH Blue Jacket |
| Cable Length | 305 Meter / Pull Box |
| Application | Horizontal Cabling, Work Area Patch Cord, Gigabit Ethernet, 2.5G/5G BASE-T, PoE, PoE+, Data, Voice, Video and Enterprise Network Infrastructure |
| Cable Standard | ANSI/TIA-568.2-D Category 6, ISO/IEC 11801:2017 Class E |
|---|---|
| Category | Category 6 U/UTP Stranded |
| Frequency | 600 MHz |
| Conductor Size | 24 AWG Stranded Bare Copper |
| Number of Pairs | 4 Pairs (8 Conductors) |
| Cross Filler | FRPE Cross Filler for Pair Separation |
| Cable Diameter | 6.15 ± 0.2 mm |
| Characteristic Impedance | 100 ± 15 Ohms |
| Packaging | 305 Meter Pull Box |
| SMART FEATURES | |
|---|---|
| CAT6 Ultra Performance | Supports High-Speed Data Transmission up to 10 Gigabit Ethernet and Multi-Gigabit Network Applications |
| 600 MHz Bandwidth | Provides Enhanced Signal Performance with Improved NEXT and Crosstalk Control |
| Stranded Conductor Design | Provides Better Flexibility for Patch Cord Applications and Work Area Connections |
| LSZH Flame Retardant Jacket | Low Smoke Zero Halogen Jacket Reduces Toxic Smoke and Corrosive Gas Emissions During Fire Conditions |
| PoE Support | Supports IEEE 802.3af PoE and IEEE 802.3at PoE+ Applications |
| GENERAL | |
|---|---|
| Cable Type | CAT6 U/UTP Stranded Indoor LSZH LAN Cable |
| Installation Method | Indoor Horizontal Cabling and Work Area Patch Cord Installation |
| Minimum Bend Radius | 4 × Cable Diameter |
| Installation / Operating Temperature | -20°C to +75°C |
| Storage Temperature | -20°C to +80°C |
| Standards Compliance | ANSI/TIA-568.2-D Category 6, ANSI/TIA-568-C.2 Category 6, ISO/IEC 11801:2017 Class E, EN 50173-1 Category 6, EN 50288-6-2, IEC 61156-5, IEC 60332-1, IEC 60754-1, IEC 60754-2, IEC 61034-1, IEC 61034-2, ICEA S-102-700, UL 444, CSA 22.2 No.214, RoHS |
| Warranty | 30 Years |
Note: The LINK US-9126LSZH is a CAT6 U/UTP stranded LAN cable featuring 24 AWG stranded bare copper conductors, 4-pair construction with cross filler, and 600 MHz bandwidth performance. It uses an LSZH (Low Smoke Zero Halogen) jacket designed to reduce toxic smoke and corrosive gas emissions during fire conditions, making it suitable for horizontal structured cabling, patch cord applications and indoor network installations.
Important: The LINK US-9126LSZH supports high-speed network applications including 2.5G/5G BASE-T, Gigabit Ethernet, PoE and PoE+ applications. Its CAT6 Ultra 600 MHz performance provides reliable transmission for data, voice, video, VoIP and modern enterprise network infrastructure, while the LSZH jacket improves safety in indoor environments requiring reduced smoke and halogen emissions.
