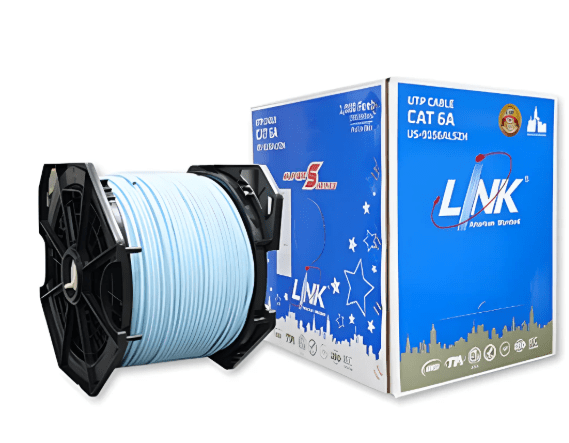

Specifications LINK US-9156ALSZH
| Features | Description |
|---|---|
| Device Type | Indoor CAT6A UTP LAN Cable |
| Cable Category | CAT6A UTP SUPER-S Series Cable |
| Conductor | Solid Bare Copper 23 AWG |
| Core Count | 4 Pairs (8 Wires) |
| Bandwidth | 500 MHz |
| Cable Construction | UTP with Cross Filler and Protection Barrier Tape |
| Insulation | High Density Polyethylene (HDPE) |
| Outer Jacket | Lead-Free FR-LSZH Aqua Blue |
| Cable Length | 305 Meter / Pull-in Box |
| Application | Horizontal Cabling, 10G Ethernet, PoE, PoE+, Data, Voice, Video and Enterprise Network Infrastructure |
| Cable Standard | ANSI/TIA-568.2-E Category 6A, ISO/IEC 11801:2017 Class EA |
|---|---|
| Category | Category 6A UTP SUPER-S |
| Frequency | 500 MHz |
| Conductor Size | 23 AWG Solid Bare Copper |
| Number of Pairs | 4 Pairs (8 Conductors) |
| Cross Filler | FRPE Cross Filler for Pair Separation |
| Protection Barrier | Protection Barrier Tape for Improved Alien Crosstalk Blocking |
| Cable Diameter | 7.0 ± 0.2 mm |
| Characteristic Impedance | 100 ± 5 Ohms, 1 MHz to 500 MHz |
| Packaging | 305 Meter Pull-in Box |
| SMART FEATURES | |
|---|---|
| CAT6A Performance | Supports High-Speed Data Transmission up to 10 Gigabit Ethernet and Multi-Gigabit Network Applications |
| SUPER-S Design | Smart, Small & Save Design Provides Smaller Cable Diameter, Reduced Pathway Space and Easier Installation |
| Protection Barrier Tape | Helps Block Alien Crosstalk and Improves Transmission Performance in High-Density Cabling Environments |
| LSZH Flame Retardant Jacket | Low Smoke Zero Halogen Jacket Reduces Toxic Smoke and Corrosive Gas Emissions During Fire Conditions |
| PoE Support | Supports IEEE 802.3af PoE, IEEE 802.3at PoE+ and IEEE 802.3bt Type 4 Applications |
| GENERAL | |
|---|---|
| Cable Type | CAT6A UTP SUPER-S Indoor LSZH LAN Cable |
| Installation Method | Indoor Horizontal Cabling and Building Backbone Installation |
| Minimum Bend Radius | 8 × Cable Diameter |
| Installation / Operating Temperature | -20°C to +75°C |
| Storage Temperature | -20°C to +80°C |
| Flame Rating | LSZH (Low Smoke Zero Halogen) |
| Standards Compliance | ANSI/TIA-568.2-E, ANSI/TIA-568.2-D, ANSI/TIA-568-C.2, ISO/IEC 11801:2017 Class EA, EN 50173-1 Category 6A, EN 50288-11-1, IEC 61156-5, IEC 60332-1, IEC 60754-1, IEC 60754-2, IEC 61034-1, IEC 61034-2, UL 444/NEC 800, 3P Verified to Category 6A, RoHS, REACH |
| Warranty | 30 Years |
Note: The LINK US-9156ALSZH is a CAT6A UTP SUPER-S indoor LAN cable featuring 23 AWG solid bare copper conductors, 4-pair construction with FRPE cross filler and Protection Barrier Tape. It provides 500 MHz bandwidth performance with a compact 7.0 ± 0.2 mm cable diameter and uses a lead-free FR-LSZH Aqua Blue jacket. The SUPER-S design helps reduce pathway space and provides easier installation while the Protection Barrier Tape improves alien crosstalk performance.
Important: The LINK US-9156ALSZH supports 10GBASE-T, 2.5G/5GBASE-T, Gigabit Ethernet, PoE, PoE+ and IEEE 802.3bt Type 4 applications. Its CAT6A 500 MHz performance provides reliable high-speed transmission for data, voice, video, VoIP and enterprise structured cabling, while the LSZH jacket improves safety for indoor installations. The standard US-9156ALSZH is supplied as a 305-meter Pull-in Box, while US-9156ALSZH-1 is the 100-meter version.
