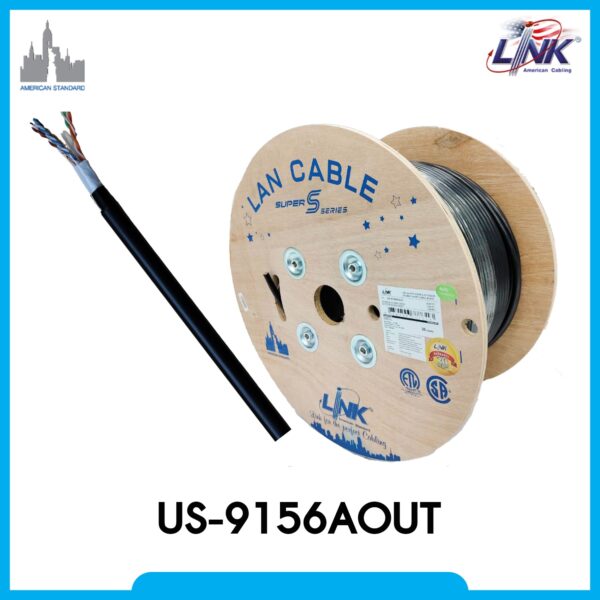

Specifications LINK US-9156AOUT
| Features | Description |
|---|---|
| Product Type | CAT6A UTP SUPER-S Outdoor Cable, Double Jacket |
| Category | Category 6A |
| Frequency | Up to 500 MHz |
| Shielding | U/UTP (Unshielded) |
| Conductor | 23 AWG Solid Bare Copper |
| Number of Pairs | 4 Pairs (8 Wires) |
| Cross Filler | PE |
| Inner Jacket | FR-PVC, Black |
| Outer Jacket | UV-Proof PE, Black |
| Cable Diameter | 8.20 ± 0.30 mm |
| Flame Rating | CMX |
| Length | 305 m / Roll |
| Application | Indoor / Outdoor |
| 10GBASE-T | Supported |
| PoE | Supported |
| CABLE CONSTRUCTION | |
|---|---|
| Conductor | Solid Bare Copper, 23 AWG |
| Number of Pairs | 4 Pairs / 8 Wires |
| Insulation | HDPE |
| Cross Filler | PE |
| Mylar Tape | Polyester Tape |
| Wrapping | Protection Barrier Tape |
| Inner Jacket | FR-PVC, Black |
| Outer Jacket | UV-Proof PE, Black |
| Cable Diameter | 8.20 ± 0.30 mm |
| ELECTRICAL CHARACTERISTICS | |
|---|---|
| Impedance | 100 ± 5 Ohms, 1 MHz to 500 MHz |
| Mutual Capacitance | ≤ 5.6 nF Max. / 100 m |
| Capacitance Unbalance | ≤ 330 pF Max. / 100 m |
| DC Resistance | ≤ 9.38 Ohms Max. / 100 m |
| DC Resistance Unbalance | 4% Max. |
| Insulation Resistance | ≥ 5000 MΩ/km |
| Propagation Delay | ≤ 534 ns / 100 m Max. @ 500 MHz |
| Delay Skew | ≤ 40 ns Max. |
| NVP | 69% |
| MECHANICAL & ENVIRONMENTAL | |
|---|---|
| Tensile Strength | 700 N |
| Minimum Bending Radius | 8 × Cable Diameter |
| Installation / Operating Temperature | -20°C to +75°C |
| Storage Temperature | -20°C to +80°C |
| Outer Jacket | UV-Proof PE |
| Flame Rating | CMX |
| STANDARDS & APPLICATION | |
|---|---|
| ANSI/TIA | ANSI/TIA-568.2-D Category 6A |
| ISO/IEC | ISO/IEC 11801:2017 Class EA |
| EN Standard | EN 50173-1 Category 6A |
| EN Standard | EN 50288-11-1 |
| IEC Standard | IEC 61156-5 |
| UL Standard | UL 444 / NEC 800 |
| Ethernet | 10/100/1000BASE-T / 2.5GBASE-T / 5GBASE-T / 10GBASE-T |
| Compliance | RoHS |
Note: The LINK US-9156AOUT is a CAT6A UTP SUPER-S Outdoor Cable featuring 23 AWG solid bare copper conductors, 500 MHz bandwidth, double jacket construction with FR-PVC inner jacket and UV-Proof PE outer jacket, 8.20 ± 0.30 mm cable diameter, and 305 m per roll. It is designed for outdoor network installations and supports 10GBASE-T applications.
