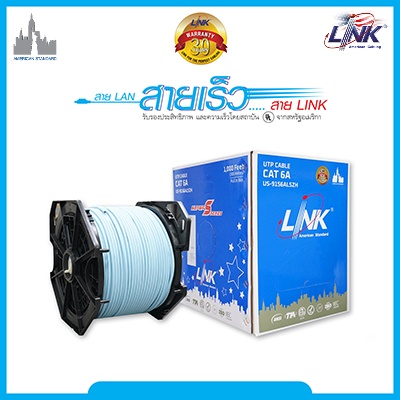

Specifications LINK US-9157LSZH
| Features | Description |
|---|---|
| Product Type | CAT 6A UTP SUPER-S Series Cable |
| Category | Category 6A |
| Frequency | Up to 750 MHz |
| Shielding | U/UTP (Unshielded) |
| Conductor | 23 AWG Solid Bare Copper |
| Number of Conductors | 4 Pairs (8 Wires) |
| Jacket | Lead-Free FR-LSZH |
| Cable Diameter | Approx. 7.3 mm |
| Color | Aqua Blue |
| Length | 305 m / Box |
| Application | Indoor Installation |
| 10GBASE-T | Supported |
| PoE | IEEE 802.3af / at / bt Supported |
| Flame Rating | LSZH (Low Smoke Zero Halogen) |
| RoHS | Compliant |
| CABLE CONSTRUCTION | |
|---|---|
| Conductor | Solid Bare Copper |
| Conductor Size | 23 AWG |
| Number of Pairs | 4 Pairs / 8 Wires |
| Insulation | HDPE |
| Cross Filler | FRPE |
| Wrapping | Protection Barrier Tape |
| Jacket | Lead-Free FR-LSZH |
| Cable Diameter | Approx. 7.3 mm |
| Jacket Color | Aqua Blue |
| ELECTRICAL CHARACTERISTICS | |
|---|---|
| Impedance | 100 ± 5 Ohms |
| Frequency | 1 MHz to 500 MHz |
| Mutual Capacitance | ≤ 5.6 nF Max. / 100 m |
| Capacitance Unbalance | ≤ 330 pF Max. / 100 m |
| DC Resistance | ≤ 9.38 Ohms Max. / 100 m |
| DC Resistance Unbalance | 4% Max. |
| Insulation Resistance | ≥ 5000 MΩ/km |
| Propagation Delay | ≤ 534 ns / 100 m Max. @ 500 MHz |
| Delay Skew | ≤ 40 ns Max. |
| NVP | 69% |
| MECHANICAL & ENVIRONMENTAL | |
|---|---|
| Tensile Strength | 110 N (25 lbf) |
| Ultimate Breaking Strength | > 400 N (90 lbf) |
| Minimum Bending Radius | 8 × Cable Diameter |
| Installation / Operating Temperature | -20°C to +75°C |
| Storage Temperature | -20°C to +80°C |
| Flame Rating | LSZH (Low Smoke Zero Halogen) |
| STANDARDS & APPLICATION | |
|---|---|
| ANSI/TIA | ANSI/TIA-568.2-E Category 6A |
| ISO/IEC | ISO/IEC 11801:2017 Class EA |
| EN Standard | EN 50173-1 Category 6A |
| IEC Standard | IEC 61156-5 / IEC 60332-1 / IEC 60754-1 / IEC 60754-2 / IEC 61034-1 / IEC 61034-2 |
| Ethernet | 10/100/1000BASE-T / 2.5GBASE-T / 5GBASE-T / 10GBASE-T |
| PoE | IEEE 802.3af / 802.3at / 802.3bt |
| Compliance | RoHS / REACH |
Note: The LINK US-9157LSZH is a CAT 6A UTP SUPER-S Series cable supporting frequencies up to 750 MHz. It features 23 AWG solid bare copper conductors, FR-LSZH jacket, 4 pairs (8 wires), approximately 7.3 mm cable diameter, and 305 m per box. The cable is designed for indoor installations and supports 10GBASE-T, 2.5GBASE-T, 5GBASE-T, and PoE applications.
