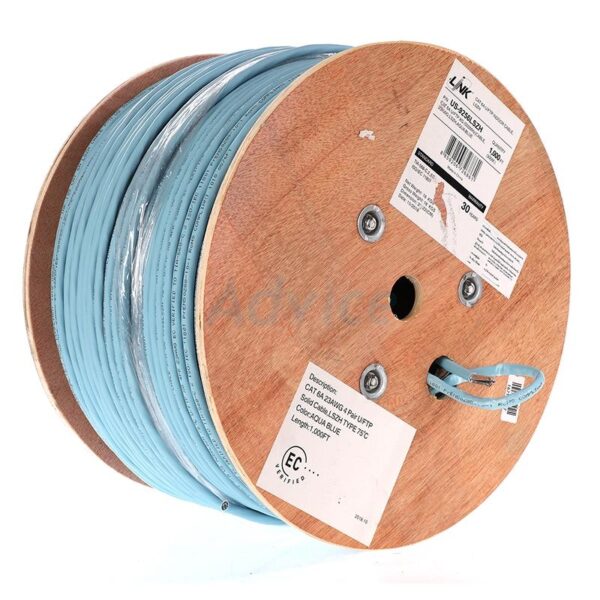

Specifications LINK US-9256LSZH
| Features | Description |
|---|---|
| Device Type | Indoor Shielded LAN Cable |
| Cable Category | CAT6A U/FTP XG Cable |
| Conductor | Solid Bare Copper 23 AWG |
| Core Count | 4 Pairs (8 Wires) |
| Bandwidth | 500 MHz |
| Cable Construction | U/FTP with Individually Shielded Pairs |
| Insulation | Foam-Skin HDPE |
| Shielding | Aluminum Mylar Tape for Individual Pair Shielding |
| Outer Jacket | Lead-Free FR-LSZH Aqua Blue |
| Cable Length | 305 Meter / Roll |
| Application | Horizontal Cabling, 10G Ethernet, PoE, PoE+, Data, Voice, Video and Enterprise Network Infrastructure |
| Cable Standard | ANSI/TIA-568.2-E Category 6A, ISO/IEC 11801:2017 Class EA |
|---|---|
| Category | Category 6A U/FTP XG |
| Frequency | 500 MHz |
| Conductor Size | 23 AWG Solid Bare Copper |
| Number of Pairs | 4 Pairs (8 Conductors) |
| Individual Shielding | Aluminum Mylar Tape Shield for Each Pair |
| Drain Wire | Stranded Tinned Copper 24 AWG |
| Cable Diameter | Approximately 7.3 mm |
| Characteristic Impedance | 100 ± 15 Ohms, 1 MHz to 500 MHz |
| Packaging | 305 Meter Roll |
| SMART FEATURES | |
|---|---|
| CAT6A XG Performance | Supports High-Speed Data Transmission up to 10 Gigabit Ethernet and Multi-Gigabit Network Applications |
| U/FTP Shielding | Individually Shielded Pairs Help Reduce Alien Crosstalk and Electromagnetic Interference |
| 500 MHz Bandwidth | Provides High-Frequency Transmission Performance for Modern Enterprise Networks |
| LSZH Flame Retardant Jacket | Low Smoke Zero Halogen Jacket Reduces Toxic Smoke and Corrosive Gas Emissions During Fire Conditions |
| High-Speed Transmission | Supports 10G BASE-T, 2.5G/5G BASE-T, Gigabit Ethernet, PoE, PoE+ and IEEE 802.3bt Applications |
| GENERAL | |
|---|---|
| Cable Type | CAT6A U/FTP XG Indoor LSZH LAN Cable |
| Installation Method | Indoor Horizontal Cabling and Building Backbone Installation |
| Minimum Bend Radius | 8 × Cable Diameter |
| Installation / Operating Temperature | -20°C to +75°C |
| Storage Temperature | -20°C to +80°C |
| Flame Rating | LSZH (Low Smoke Zero Halogen) |
| Standards Compliance | ANSI/TIA-568.2-E, ANSI/TIA-568.2-D, ANSI/TIA-568-C.2, ISO/IEC 11801:2017 Class EA, EN 50173-1 Category 6A, EN 50288-10-1, IEC 61156-5, IEC 60332-1, IEC 60754-1, IEC 60754-2, IEC 61034-1, IEC 61034-2, UL 444/NEC 800, CSA 22.2 No.214, RoHS |
| Warranty | 30 Years |
Note: The LINK US-9256LSZH is a CAT6A U/FTP XG indoor LAN cable featuring 23 AWG solid bare copper conductors, 4-pair construction with individually shielded pairs, and 500 MHz bandwidth performance. The U/FTP design helps reduce alien crosstalk and improve transmission performance, while the lead-free FR-LSZH Aqua Blue jacket provides reduced smoke and corrosive gas emissions during fire conditions. The cable is supplied in a 305-meter roll.
Important: The LINK US-9256LSZH supports high-speed network applications including 10G BASE-T, 2.5G/5G BASE-T, Gigabit Ethernet and PoE applications. Its CAT6A 500 MHz performance with individually shielded pairs provides reliable transmission for enterprise structured cabling, data, voice, video and high-density network environments.
