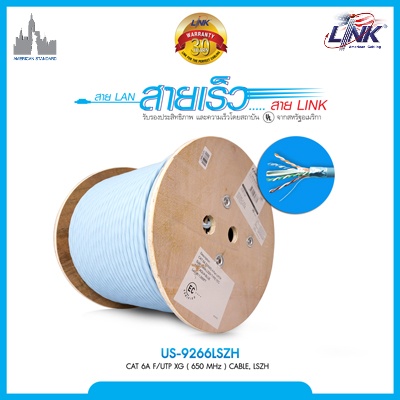

Specifications LINK US-9266LSZH
| Features | Description |
|---|---|
| Product Type | CAT6A F/UTP SUPER XG Cable |
| Category | Category 6A |
| Bandwidth | Up to 650 MHz |
| Shielding | F/UTP, Overall Shielded |
| Conductor | 23 AWG Solid Bare Copper |
| Number of Conductors | 4 Pairs (8 Wires) |
| Shield | Al-Mylar Tape |
| Drain Wire | 24 AWG Tinned Annealed Copper |
| Cross Filler | PE |
| Jacket | Lead-Free FR-LSZH |
| Cable Diameter | 7.5 ± 0.2 mm |
| Color | Aqua Blue |
| Length | 305 m / Roll |
| 10GBASE-T | Supported |
| 2.5G/5GBASE-T | Supported |
| PoE | IEEE 802.3af / 802.3at / 802.3bt Supported |
| CABLE CONSTRUCTION | |
|---|---|
| Conductor | 23 AWG Solid Bare Copper |
| Number of Pairs | 4 Pairs / 8 Wires |
| Insulation | HDPE |
| Cross Filler | PE |
| Shield | Al-Mylar Tape, 0.065 mm |
| Drain Wire | 24 AWG Tinned Annealed Copper |
| Rip Cord | Under Jacket |
| Jacket | Lead-Free FR-LSZH |
| Cable Diameter | 7.5 ± 0.2 mm |
| Jacket Color | Aqua Blue |
| ELECTRICAL CHARACTERISTICS | |
|---|---|
| Impedance | 100 ± 5 Ohms, 1 MHz to 650 MHz |
| Mutual Capacitance | ≤ 5.6 nF Max. / 100 m |
| Capacitance Unbalance | ≤ 160 pF Max. / 100 m |
| DC Resistance | ≤ 6.658 Ohms Max. / 100 m |
| DC Resistance Unbalance | 3% Max. |
| Insulation Resistance | ≥ 5000 MΩ/km |
| Propagation Delay | ≤ 534 ns / 100 m Max. @ 650 MHz |
| Delay Skew | ≤ 25 ns Max. |
| NVP | 69% |
| MECHANICAL & ENVIRONMENTAL | |
|---|---|
| Tensile Strength | 110 N (25 lbf) |
| Ultimate Breaking Strength | > 400 N (90 lbf) |
| Minimum Bending Radius | 8 × Cable Diameter |
| Installation / Operating Temperature | -20°C to +75°C |
| Storage Temperature | -20°C to +80°C |
| Flame Rating | LSZH (Low Smoke Zero Halogen) |
| STANDARDS & APPLICATION | |
|---|---|
| ANSI/TIA | ANSI/TIA-568.2-E Category 6A |
| ISO/IEC | ISO/IEC 11801:2017 Class EA |
| EN Standard | EN 50173-1 Category 6A |
| IEC Standard | IEC 61156-5 Category 6A |
| Ethernet | 10/100/1000BASE-T / 2.5GBASE-T / 5GBASE-T / 10GBASE-T |
| PoE | IEEE 802.3af / 802.3at / 802.3bt |
| Compliance | RoHS |
Note: The LINK US-9266LSZH is a CAT6A F/UTP SUPER XG cable featuring 23 AWG solid bare copper conductors, an Al-Mylar overall shield, PE cross filler, and a lead-free FR-LSZH jacket. It supports up to 650 MHz bandwidth, 10GBASE-T, 2.5GBASE-T, 5GBASE-T, and IEEE 802.3af/at/bt PoE applications.
