Specifications LINK UT-0215EATS-20
| Features | Description |
|---|---|
| Product Type | 10/100Mbps Single Fiber Optic Media Converter |
| Function | Transmitter |
| Fiber Port | 1 x Simplex SC, Single-Mode |
| Fiber Type | Single-Mode, Single Fiber (WDM) |
| Fiber Standard | 100Base-FX |
| Fiber Distance | Up to 20 km |
| RJ45 Port | 1 x 10/100Base-TX RJ45 |
| RJ45 Distance | Up to 100 m |
| Transmission Speed | 10/100 Mbps |
| Duplex Mode | Full/Half Duplex |
| Wavelength | TX: 1310 nm / RX: 1550 nm |
| Transmit Power | -14 to -8 dBm |
| Receiver Sensitivity | -31 dBm |
| NETWORK FEATURES | Description |
|---|---|
| Auto-Negotiation | Supported |
| Auto MDI/MDI-X | Supported |
| Flow Control | IEEE 802.3x |
| VLAN | IEEE 802.1Q Packet Pass-Through |
| QoS | IEEE 802.1p Packet Pass-Through |
| STP | IEEE 802.1d Packet Pass-Through |
| Packet Size | Up to 9 KB |
| Link Fault Signaling (LFS) | Supported |
| Local Loopback (LLB) | Supported |
| Remote Loopback (RLB) | Supported |
| DIP Switch | Manual Configuration of Enhanced Functions |
| STANDARDS | Description |
|---|---|
| IEEE 802.3 | 10Base-T |
| IEEE 802.3u | 100Base-TX / 100Base-FX |
| EMI | FCC Part 15 Class A, CE, EN 55032 Class A |
| EMS | EN 55024 / IEC/EN 61000-4 Series |
| RoHS | Compliant |
| GENERAL | Description |
|---|---|
| Power Input | 12 VDC |
| Power Adapter | 100-240 VAC, 50-60 Hz to 12 VDC / 1 A |
| Power Consumption | 2.8 W |
| Housing | Metal |
| Dimensions | 73.8 mm x 23.4 mm x 109.2 mm |
| Weight | 138 g |
| Mounting | Desktop, Chassis Compatible |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -25°C to 70°C |
| Operating Humidity | 10% to 95% RH, non-condensing |
| Storage Humidity | 5% to 95% RH, non-condensing |

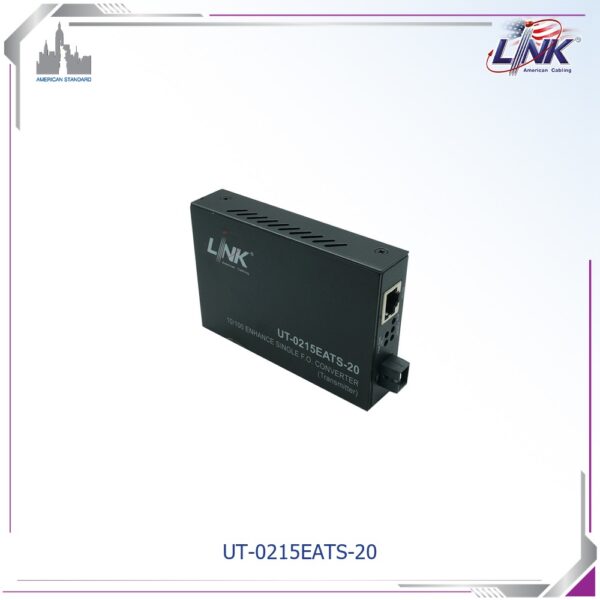

Note: The LINK UT-0215EATS-20 is a 10/100Mbps Single Fiber Optic Media Converter operating as a transmitter. It features 1 x 10/100Base-TX RJ45 port and 1 x Simplex SC Single-Mode fiber port, supporting transmission up to 20 km over a single fiber core using WDM technology.
Important: The UT-0215EATS-20 operates at TX 1310 nm / RX 1550 nm and is designed to work with the matching UT-0215EARS-20 receiver, which uses the opposite wavelength configuration. It supports VLAN, QoS, STP, LFS, LLB, RLB, Auto MDI/MDI-X, and DIP-switch configuration.
