Specifications LINK UT-0216EA-SM30
| Features | Description |
|---|---|
| Product Type | 10/100Mbps Enhance Fiber Optic Media Converter |
| Fiber Port | 1 x Duplex SC, Single-Mode |
| Fiber Standard | 100Base-FX |
| Fiber Distance | Up to 30 km with Single-Mode Fiber |
| RJ45 Port | 1 x 10/100Base-TX RJ45 |
| RJ45 Speed | 10/100 Mbps |
| RJ45 Distance | Up to 100 m |
| Duplex Mode | Full/Half Duplex |
| Auto-Negotiation | Supported |
| Auto MDI/MDI-X | Supported |
| Flow Control | Supported |
| FUNCTIONS | Description |
|---|---|
| Link Fault Signaling (LFS) | Supported |
| Local Loopback (LLB) | Supported |
| Remote Loopback (RLB) | Supported |
| DIP Switch | Manual Configuration of Enhanced Functions |
| LED Indicators | PWR, Fiber, RJ45, 100, LNK/ACT, ALM (LFS) |
| OPTICAL CHARACTERISTICS | Description |
|---|---|
| Wavelength | 1310 nm |
| Transmit Power | -15 to -8 dBm |
| Receiver Sensitivity | -34 dBm |
| STANDARDS | Description |
|---|---|
| IEEE 802.3 | 10Base-T |
| IEEE 802.3u | 100Base-TX / 100Base-FX |
| EMI | FCC Part 15 Class A, CE, EN 55032 Class A |
| EMS | EN 55024 / IEC/EN 61000-4 Series |
| RoHS | Compliant |
| GENERAL | Description |
|---|---|
| Power Input | 12 VDC, DC Jack |
| Power Adapter | 100-240 VAC, 50-60 Hz to 12 VDC / 1 A |
| Power Consumption | 2.8 W |
| Housing | Metal |
| Dimensions | 73.8 mm x 23.4 mm x 109.2 mm |
| Weight | 138 g |
| Mounting | Desktop, Chassis Compatible |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -25°C to 70°C |
| Operating Humidity | 10% to 95% RH, non-condensing |
| Storage Humidity | 5% to 95% RH, non-condensing |

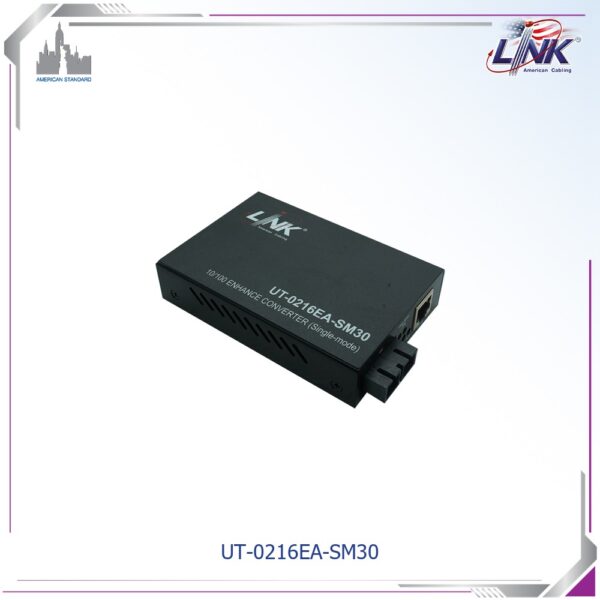

Note: The LINK UT-0216EA-SM30 is a 10/100Mbps Enhance Fiber Optic Media Converter featuring 1 x 10/100Base-TX RJ45 port and 1 x Duplex SC Single-Mode fiber port. It supports fiber transmission up to 30 km.
Important: The UT-0216EA-SM30 supports Auto-Negotiation, Auto MDI/MDI-X, Flow Control, Link Fault Signaling (LFS), Local Loopback (LLB), Remote Loopback (RLB), and manual configuration through DIP switches. It is also compatible with the LINK UT-3012 12-slot rack-mount chassis.
