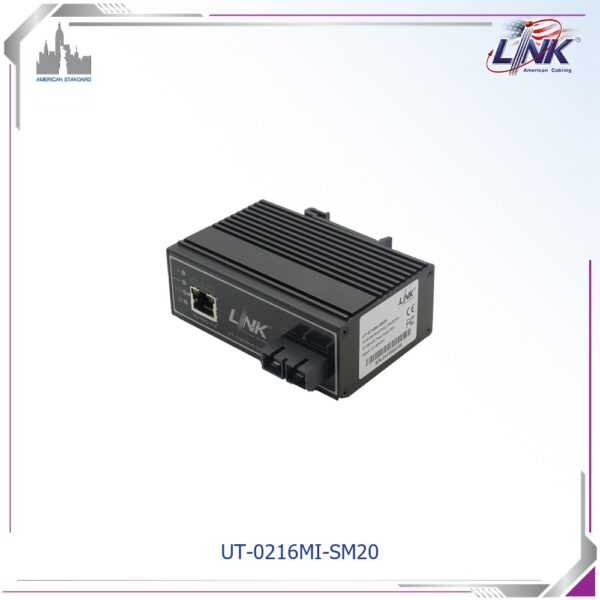

Specifications LINK UT-0216MI-SM20
| Features | Description |
|---|---|
| Product Type | 10/100 Mini-Industrial Fiber Optic Media Converter |
| Fiber Port | 1 x 100Base-FX Duplex SC, Single-Mode |
| Fiber Distance | Up to 20 km with Single-Mode Fiber |
| RJ45 Port | 1 x 10/100Base-TX RJ45 |
| RJ45 Distance | Up to 100 m |
| Fiber Wavelength | 1310 nm |
| Transmit Power | -10 to -3 dBm |
| Receiver Sensitivity | -34 dBm |
| Switching Capacity | 0.4 Gbps |
| Forwarding Rate | 0.2976 Mpps |
| Packet Buffer Memory | 1 Mbits |
| MAC Address Table | 8K Entries |
| NETWORK FEATURES | Description |
|---|---|
| Auto-Negotiation | Supported |
| Auto MDI/MDI-X | Supported |
| Flow Control | Supported |
| Duplex Mode | Full/Half Duplex |
| Link Fault Signaling | Supported |
| Loopback | Supported |
| INDUSTRIAL FEATURES | Description |
|---|---|
| Housing | Compact IP40 Aluminum Alloy Case |
| Mounting | DIN-Rail Mounting |
| Power Input | 12-60 VDC |
| Power Input | Dual Redundant, Reversible Polarity Power Inputs |
| Relay Alarm | 1 Channel Relay Alarm |
| ESD Protection | 6 kV Contact / 8 kV Air |
| Surge Protection | 6 kV |
| Operating Temperature | -40°C to 75°C |
| STANDARDS | Description |
|---|---|
| IEEE 802.3 | 10Base-T |
| IEEE 802.3u | 100Base-TX / 100Base-FX |
| EMI/EMS | FCC Part 15 Class A, CE, EN 55032, IEC/EN 61000-4 Series |
| RoHS | Compliant |
| GENERAL | Description |
|---|---|
| Power Supply | 12-60 VDC |
| Protection Rating | IP40 |
| Installation | DIN-Rail / Control Cabinet |
| Operating Temperature | -40°C to 75°C |
| Storage Temperature | -40°C to 85°C |
| Operating Humidity | 5% to 95% RH, non-condensing |
| Storage Humidity | 5% to 95% RH, non-condensing |
Note: The LINK UT-0216MI-SM20 is a 10/100 Mini-Industrial Fiber Optic Media Converter featuring 1 x 10/100Base-TX RJ45 port and 1 x 100Base-FX Duplex SC Single-Mode fiber port. It supports fiber transmission distances up to 20 km.
Important: The UT-0216MI-SM20 is designed for harsh industrial environments with an IP40 aluminum alloy housing, DIN-Rail mounting, wide 12-60 VDC power input, dual redundant power inputs, relay alarm, 6 kV surge protection, and an operating temperature range of -40°C to 75°C.
