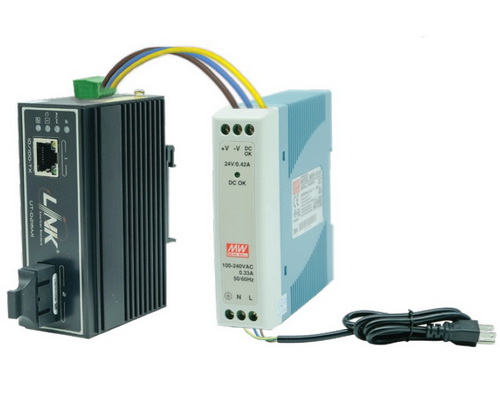

Specifications LINK UT-0216MI
| Features | Description |
|---|---|
| Product Type | 10/100 Mini-Industrial Fiber Optic Media Converter |
| Fiber Port | 1 x 100Base-FX Duplex SC, Multi-Mode |
| Fiber Distance | Up to 2 km with Multi-Mode Fiber |
| RJ45 Port | 1 x 10/100Mbps RJ45 |
| RJ45 Distance | Up to 100 m |
| Network Standard | IEEE 802.3, IEEE 802.3u |
| Duplex Mode | Full/Half Duplex |
| Auto-Negotiation | Supported |
| Auto MDI/MDI-X | Supported |
| INDUSTRIAL FEATURES | Description |
|---|---|
| Power Input | 12-60 VDC |
| Power Supply | Built-in DIN-Rail 24V / 0.42A DC Power Supply |
| Power Input | Dual Redundant, Reversible Polarity Power Inputs |
| Housing | IP40 Aluminum Alloy Case |
| Mounting | DIN-Rail Mounting |
| Surge Protection | Supported |
| ESD Protection | Supported |
| Operating Temperature | -40°C to 75°C |
| GENERAL | Description |
|---|---|
| Installation | DIN-Rail / Control Cabinet |
| Protection Rating | IP40 |
| Operating Temperature | -40°C to 75°C |
| Storage Temperature | -40°C to 85°C |
| Operating Humidity | 5% to 95% RH, non-condensing |
| Storage Humidity | 5% to 95% RH, non-condensing |
| Plug and Play | Supported |
Note: The LINK UT-0216MI is a 10/100 Mini-Industrial Fiber Optic Media Converter featuring 1 x 10/100Mbps RJ45 port and 1 x 100Base-FX Duplex SC Multi-Mode fiber port. It supports fiber transmission up to 2 km.
Important: The UT-0216MI is designed for industrial environments with an IP40 aluminum alloy housing, DIN-Rail mounting, wide 12-60 VDC power input, dual redundant power inputs, surge and ESD protection, and an operating temperature range of -40°C to 75°C.
