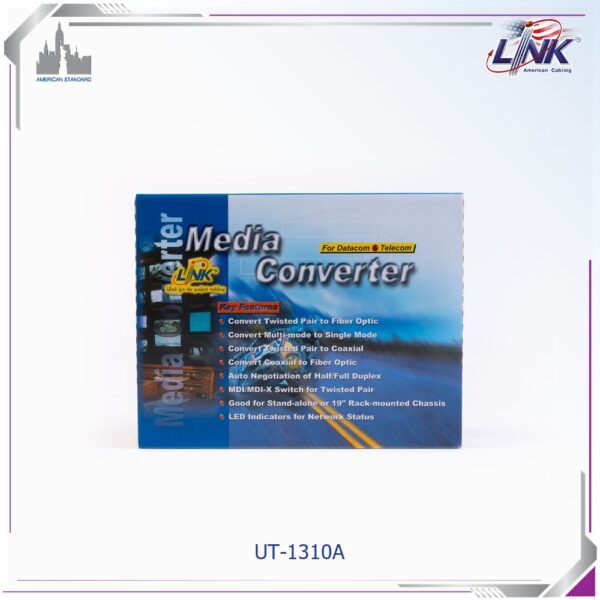

Specifications LINK UT-1310A
| Features | Description |
|---|---|
| Product Type | 10/100/1000Mbps Gigabit Enhance Fiber Optic Media Converter |
| Fiber Port | 1 x 100Base-FX / 1000Base-X SFP Slot |
| Fiber Connector | LC via SFP Module |
| Fiber Type | Depends on SFP Module (Multi-Mode or Single-Mode) |
| Fiber Distance | Up to 120 km, Depending on SFP Module |
| RJ45 Port | 1 x 10/100/1000Base-T |
| RJ45 Speed | 10/100/1000 Mbps |
| RJ45 Distance | Up to 100 m |
| Duplex Mode | Full/Half Duplex |
| Auto-Negotiation | Supported |
| Auto MDI/MDI-X | Supported |
| Flow Control | IEEE 802.3x |
| ENHANCED FEATURES | Description |
|---|---|
| Link Fault Signaling (LFS) | Supported |
| Local Loopback (LLB) | Supported |
| Remote Loopback (RLB) | Supported |
| VLAN | IEEE 802.1Q Packet Pass-Through |
| QoS | IEEE 802.1p Packet Pass-Through |
| STP | IEEE 802.1d Packet Pass-Through |
| Packet Size | Up to 9 KB |
| Hot-Swappable | Supported |
| DIP Switch | LFS, LLB, RLB and 100FX SFP Configuration |
| STANDARDS | Description |
|---|---|
| IEEE 802.3 | 10Base-T |
| IEEE 802.3u | 100Base-TX / 100Base-FX |
| IEEE 802.3ab | 1000Base-T |
| IEEE 802.3z | 1000Base-X (SX/LX) |
| IEEE 802.3x | Flow Control |
| EMI/EMS | FCC Part 15 Class A, CE, EN 55032 Class A, IEC/EN 61000-4 Series |
| RoHS | Compliant |
| GENERAL | Description |
|---|---|
| Power Input | 12 VDC, DC Jack |
| Power Consumption | 6 W |
| Power Adapter | 100-240 VAC, 50-60 Hz, 12 VDC / 1 A |
| Housing | Aluminum |
| Dimensions | 73.8 mm x 23.4 mm x 109.2 mm |
| Weight | 150 g |
| Mounting | Desktop, Chassis Compatible |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -20°C to 70°C |
| Operating Humidity | 10% to 95% RH, non-condensing |
| Storage Humidity | 5% to 95% RH, non-condensing |
| LED Indicators | PWR, Fiber, RJ45, 1000, LNK/ACT, ALM (LFS) |
Note: The LINK UT-1310A is a 10/100/1000Mbps Gigabit Enhance Fiber Optic Media Converter featuring 1 x 10/100/1000Base-T RJ45 port and 1 x 100Base-FX/1000Base-X SFP slot. It supports both Multi-Mode and Single-Mode fiber depending on the installed SFP module, with transmission distances up to 120 km.
Important: The SFP module is dependent on the required fiber type and transmission distance. The UT-1310A supports LFS, Local/Remote Loopback, VLAN, QoS, STP, 9KB packet size, and hot-swappable SFP installation. It is also compatible with the LINK 12-slot rack-mount media converter chassis.
