| Features |
Description |
| Device Type |
1000BASE-SX SFP Optical Transceiver Module |
| Form Factor |
SFP (Mini-GBIC) |
| Data Rate |
1.25Gbps |
| Fiber Type |
Multimode Fiber (MMF) |
| Wavelength |
850nm |
| Connector Type |
Duplex LC Connector |
| Transmission Distance |
Up to 550m |
| Transmitter Type |
VCSEL Laser |
| Receiver Type |
PIN Photodiode |
| Compatible Devices |
Ruijie Switch, Router and Network Devices with SFP Slot |
| Optical Standard |
IEEE 802.3z 1000BASE-SX |
| Fiber Mode |
Multimode Fiber (OM1/OM2/OM3/OM4) |
| Digital Diagnostic Monitoring (DDM) |
Supported |
| Power Consumption |
≤1.5W |
| Bit Error Rate (BER) |
≤10⁻¹² |
| Application |
Switch-to-Switch, Switch-to-Server and Fiber Uplink Connections |
| SMART FEATURES |
| High-Speed Fiber Link |
Provides 1.25Gbps Gigabit Fiber Connectivity for Network Backbone Connections |
| Long Distance Transmission |
Supports Fiber Transmission up to 550m Using Multimode Fiber Cable |
| Plug and Play |
Hot-Swappable SFP Design for Easy Installation and Replacement |
| DDM Monitoring |
Supports Digital Diagnostic Monitoring for Optical Status Checking |
| Low Power Design |
Low Power Consumption for Energy-Efficient Network Deployment |
| GENERAL |
| Dimensions |
56.5 × 13.5 × 8.5mm |
| Weight |
Approximately 35g |
| Operating Temperature |
0°C to 70°C |
| Storage Temperature |
-40°C to 85°C |
| Operating Humidity |
10% to 90% RH (Non-Condensing) |
| Warranty |
3 Years |

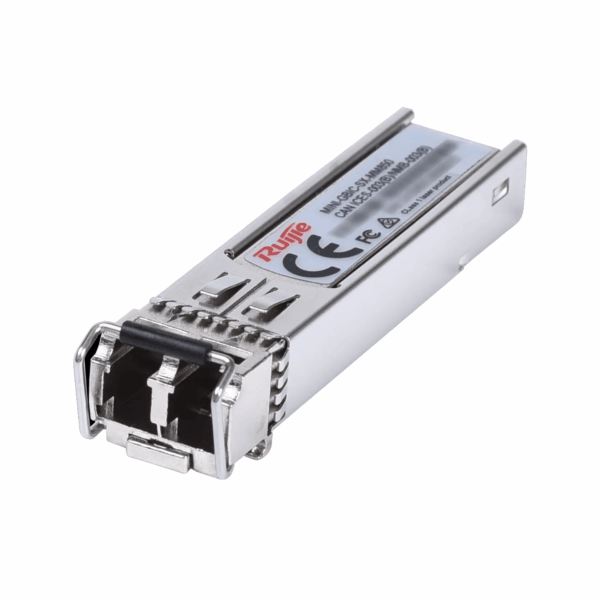

Note: The MINI-GBIC-SX-MM850 is a 1000BASE-SX SFP optical transceiver module designed for Gigabit Ethernet fiber connections. It supports multimode fiber, 850nm wavelength, Duplex LC connector, 1.25Gbps data rate, and transmission distances up to 550m. It is suitable for connecting Ruijie switches, routers, servers, and network devices with SFP ports.
Important: The Ruijie MINI-GBIC-SX-MM850 is a Gigabit SFP optical module featuring 1000BASE-SX support, 850nm wavelength, multimode fiber (MMF), Duplex LC connector, 1.25Gbps data rate, transmission distance up to 550m, VCSEL transmitter, PIN receiver, DDM monitoring, and low power consumption. It is ideal for fiber uplink connections in enterprise networks, data centers, and campus network infrastructures.
