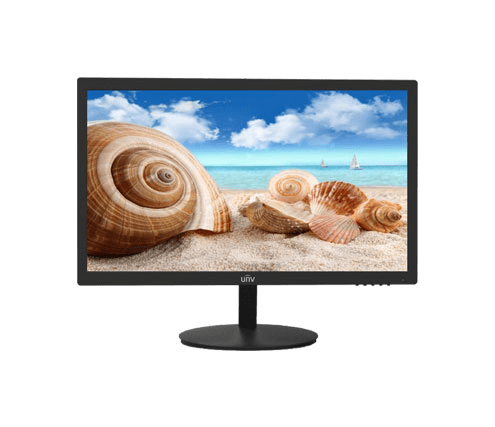

Specifications Uniview MW3222-V-DT
| Features |
Description |
| Product Type |
22-inch LED FHD Monitor |
| Display Type |
LED Backlight |
| Screen Size |
22 inches |
| Panel Type |
VA |
| Pixel Pitch |
0.248 × 0.248 mm |
| Resolution |
1920 × 1080 (Full HD) |
| Brightness |
250 cd/m² |
| Contrast Ratio |
3000:1 |
| Refresh Rate |
60 Hz |
| Response Time |
7 ms |
| Color Support |
16.7 Million Colors |
| Viewing Angle |
178° Horizontal / 178° Vertical |
| Color Gamut |
72% NTSC |
| Surface Treatment |
Haze 25%, 3H |
| Operation |
24/7 |
| Interface & Audio |
Description |
| Video Input |
1 × HDMI, 1 × VGA |
| Audio Input |
1 × 3.5 mm Mini-Jack |
| Speaker |
2 × 1.5 W |
| Mounting & General |
Description |
| VESA Mount |
100 × 100 mm |
| Wall Mount Thread |
4 × M4 Threaded Holes |
| Power Supply |
DC 12 V, 2 A |
| Power Consumption |
≤24 W (On) / ≤0.5 W (Standby) |
| Operating Temperature |
0°C to 40°C |
| Operating Humidity |
20%–85%, Non-Condensing |
| Storage Temperature |
-10°C to 50°C |
| Storage Humidity |
10%–90%, Non-Condensing |
| Dimension |
508.02 × 307.90 × 40.10 mm (Without Pedestal)
508.02 × 392.87 × 200 mm (With Pedestal) |
| Package Dimension |
566 × 382 × 116 mm |
| Weight |
2.3 kg Net / 3.4 kg Gross |
| Material |
Plastic |
| Lifetime |
30,000 Hours |
| MTBF |
50,000 Hours |
| Certifications |
CE / FCC |
Note: The Uniview MW3222-V-DT is a 22-inch LED FHD Monitor featuring 1920 × 1080 resolution, 250 cd/m² brightness, 3000:1 contrast ratio, 7 ms response time, HDMI and VGA inputs, built-in 2 × 1.5 W speakers, 100 × 100 mm VESA mounting, and support for 24/7 operation. It is suitable for CCTV monitoring and surveillance applications.
