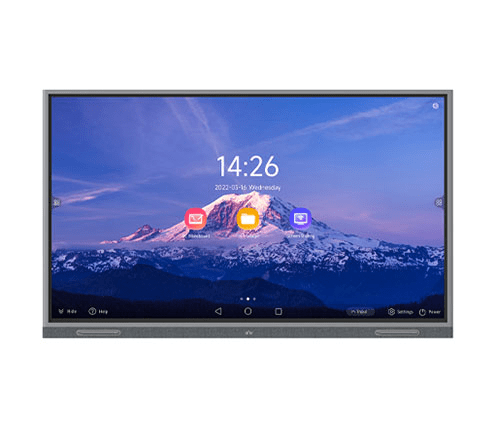

Specifications Uniview MW3565-U-X
| Features | Description |
|---|---|
| Product Type | 65-inch Smart Interactive Display |
| Panel Size | 65 inches |
| Backlight | DLED |
| Resolution | 3840 × 2160 (4K UHD) |
| Brightness | 350 cd/m² |
| Contrast Ratio | 1200:1 |
| Response Time | 8 ms |
| Refresh Rate | 60 Hz |
| Viewing Angle | 178° Horizontal / 178° Vertical |
| Color Support | 1.07 Billion Colors |
| Color Gamut | 72% |
| Surface Hardness | 9H (7 Mohs) |
| Touch & System | Description |
|---|---|
| Touch Technology | Infrared Touch |
| Touch Control | 32-Point Touch / 20-Point Writing |
| Touch Precision | 1 mm |
| Touch Response Time | ≤5 ms |
| Recognizable Object | 5 Points, 3 mm |
| Glass | 4 mm Tempered Anti-Glare Glass |
| CPU | Amlogic T982 Quad-Core A55 |
| CPU Frequency | 1.9 GHz |
| RAM / ROM | 4 GB DDR4 / 32 GB eMMC |
| Operating System | Android 13.0 |
| Interface & Connectivity | Description |
|---|---|
| Video Input | 2 × HDMI IN (4K@60), 2 × AV IN |
| Video Output | 1 × AV OUT |
| Audio Output | 1 × 3.5 mm Audio Out |
| USB | 1 × USB 3.0, 4 × USB 2.0, 1 × USB Type-C |
| Touch Output | 2 × TOUCH OUT |
| Network | 1 × RJ45 10/100 Mbps |
| Wireless | Dual-Band Wi-Fi 5 |
| Bluetooth | Bluetooth 5.0 |
| Control | 1 × RS232 |
| Other | 1 × SPDIF |
| Audio & General | Description |
|---|---|
| Speaker | 2 × 15 W, 2.0 Channel |
| Wi-Fi Range | Up to 20 m in Open Space |
| Power Supply | AC 100–240 V, 50/60 Hz |
| Power Consumption | 185 W |
| Operating Temperature | 0°C to 50°C |
| Operating Humidity | 10%–90% RH, Non-Condensing |
| Dimension | 1500.6 × 886.8 × 115.7 mm |
| Weight | 36 kg Net / 47 kg Gross |
| VESA Mount | 500 × 400 mm |
Note: The Uniview MW3565-U-X is a 65-inch 4K UHD Smart Interactive Display featuring Android 13.0, an Amlogic T982 quad-core processor, 4 GB RAM, 32 GB storage, and infrared touch technology supporting 32-point touch and 20-point writing. It supports dual-band Wi-Fi 5, Bluetooth 5.0, HDMI 4K@60 input, USB Type-C, and built-in 2 × 15 W speakers.
