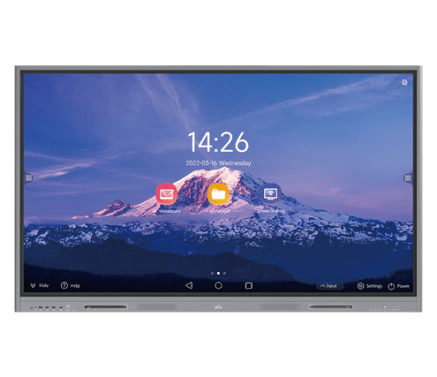

Specifications Uniview MW3586-U-CA
| Features | Description |
|---|---|
| Product Type | 86-inch Smart Interactive Display |
| Panel Size | 86 inches |
| Backlight | DLED |
| Resolution | 3840 × 2160 (4K UHD) |
| Brightness | 350 cd/m² |
| Contrast Ratio | 1200:1 |
| Refresh Rate | 60 Hz |
| Response Time | 8 ms |
| Viewing Angle | 178° Horizontal / 178° Vertical |
| Color Support | 1.07 Billion Colors |
| Touch & System | Description |
|---|---|
| Touch Technology | Infrared Touch |
| Touch Control | 32-Point Touch / 20-Point Writing |
| Touch Precision | ±1 mm |
| Touch Response Time | ≤6 ms |
| Glass | 4 mm Tempered Glass, Anti-Glare |
| CPU | Amlogic T982 Quad-Core A55 + Mali G52 GPU |
| CPU Frequency | 1.9 GHz |
| RAM / ROM | 4 GB DDR4 / 32 GB eMMC |
| Operating System | Android 13.0 |
| Interface & Connectivity | Description |
|---|---|
| Video Input | 3 × HDMI IN (4K), 1 × VGA IN, 1 × AV IN, 1 × YPbPr IN, 1 × DP IN |
| Video Output | 1 × HDMI OUT (4K), 1 × AV OUT |
| USB | 3 × USB 3.0 Front, 1 × USB 3.0, 1 × USB 2.0, 2 × TOUCH USB |
| Type-C | 1 × USB Type-C |
| Network | 1 × LAN IN + 1 × LAN OUT |
| Wireless | Wi-Fi 5 + Wi-Fi 6, 2.4 GHz / 5 GHz |
| Bluetooth | Bluetooth 5.2 |
| Control | 1 × RS232 |
| Audio & General | Description |
|---|---|
| Speaker | 2 × 15 W Treble + 2 × 15 W Bass |
| Power Supply | AC 100–240 V, 50/60 Hz |
| Power Consumption | 342.2 W (Without OPS) |
| Standby Power | < 0.5 W |
| Operating Temperature | 0°C to 50°C |
| Operating Humidity | 10%–90% RH, Non-Condensing |
| Dimension | 1967 × 1173 × 88 mm |
| Weight | 68 kg |
| VESA Mount | 800 × 400 mm |
Note: The Uniview MW3586-U-CA is an 86-inch 4K UHD Smart Interactive Display featuring Android 13, an Amlogic T982 processor, 4 GB RAM, 32 GB storage, and infrared touch technology supporting 32-point touch and 20-point writing. It supports Wi-Fi 5/6, Bluetooth 5.2, HDMI 4K input/output, USB Type-C, and built-in speakers.
