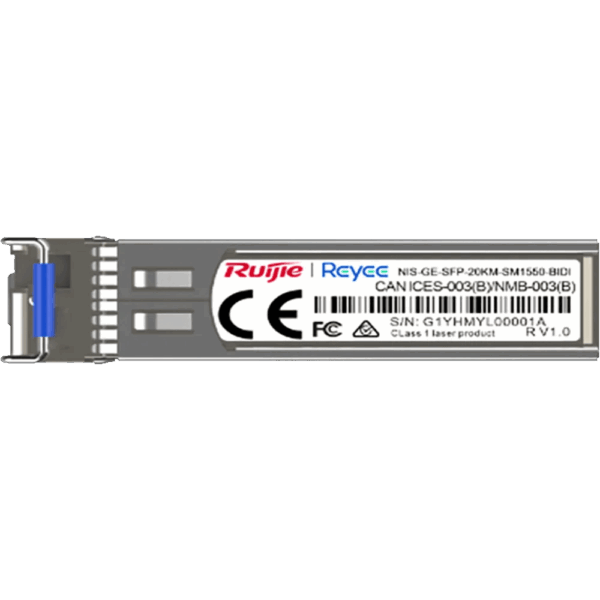

NIS-GE-SFP-20KM-SM1550-BIDI
Industrial SFP Transceiver Module, 1550nm TX / 1310nm RX, 20km, LC, DDM
The NIS-GE-SFP-20KM-SM1550-BIDI is an industrial SFP module from Ruijie. It supports single-mode fiber optic cables with LC connectors and offers data transmission speeds of 1 Gbps over distances of up to 20 kilometers. Ideal for use with Reyee NIS series industrial switches, it features DDM functionality and supports a wide operating temperature range from -40°C to +85°C.
| feature | details |
|---|---|
| Equipment type | SFP modules for industrial applications. |
| standard | Long wavelength / Long distance |
| Data transmission rate | 1000 Mbps |
| wavelength | TX: 1550 nm / RX: 1310 nm |
| Cable type | Single-Mode Fiber Optic (SMF) |
| Connector | LC (Simplex) |
| Fiber core size | 9/125 µm |
| DDM (Digital Diagnostic Monitoring) | Supported |
| Maximum distance | 20 kilometers (65616.80 feet) |
| Transmitter Power | Min: -9 dBm / Max: -3 dBm |
| Receiver Power | Minimum: -22 dBm / Maximum: -3 dBm |
| Operating temperature | –40°C to +85°C (–40°F to +185°F) |
| Storage temperature | –40°C to +85°C (–40°F to +185°F) |
| relative humidity | 10% RH to 90% RH (no condensation) |
| Warranty | 5 years |
