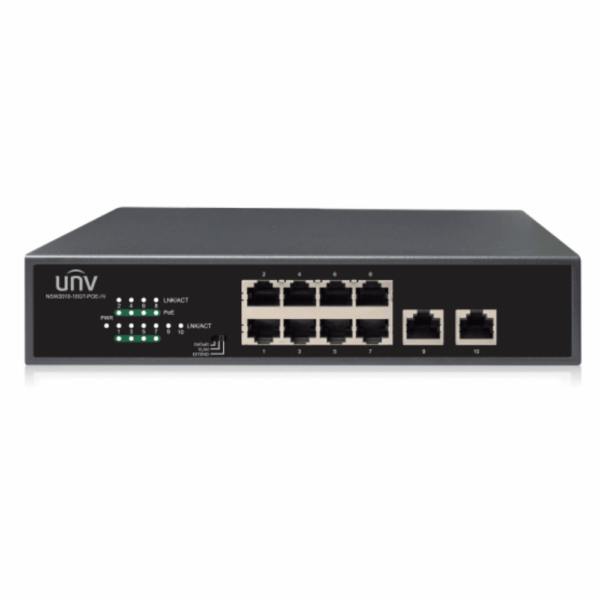

Specifications Uniview NSW2010-10GT-POE-IN
| Features | Description |
|---|---|
| Product Type | Gigabit PoE Ethernet Switch |
| PoE Ports | 8 × 10/100/1000 Mbps PoE RJ45 |
| Uplink Ports | 2 × 10/100/1000 Mbps RJ45 |
| PoE Standard | IEEE 802.3af / IEEE 802.3at |
| PoE Mode | Mode A (1/2+, 3/6-) |
| PoE Power per Port | Up to 30 W |
| Total PoE Power | Up to 120 W |
| Switching Capacity | 20 Gbps |
| Forwarding Performance | 14.88 Mpps |
| MAC Address Table | 2K |
| Packet Buffer | 2 Mbit |
| Standards & Functions | Description |
|---|---|
| Network Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3az, IEEE 802.3x |
| Flow Control | IEEE 802.3x Full Duplex / Backpressure Half Duplex |
| Working Modes | Default (Normal), VLAN (Secure), Extend (Surveillance) |
| Extend Mode | Transmission distance up to 250 m |
| Switching Method | Store-and-Forward |
| Auto Detection | Automatic PoE Device Detection |
| General | Description |
|---|---|
| Power Supply | AC 100–240 V, 50/60 Hz |
| Maximum Power Consumption | 130 W |
| Cooling | 1 × Cooling Fan |
| Operating Temperature | 0°C to 40°C |
| Operating Humidity | 10%–90%, Non-Condensing |
| Dimension | 220 × 150 × 44 mm |
| Weight | <1.24 kg |
Note: The Uniview NSW2010-10GT-POE-IN is an 8-port Gigabit PoE Ethernet Switch featuring 8 × Gigabit PoE ports and 2 × Gigabit uplink ports. It supports IEEE 802.3af/at, up to 30 W per PoE port, a total PoE power budget of 120 W, and Extend mode for transmission distances up to 250 m.
