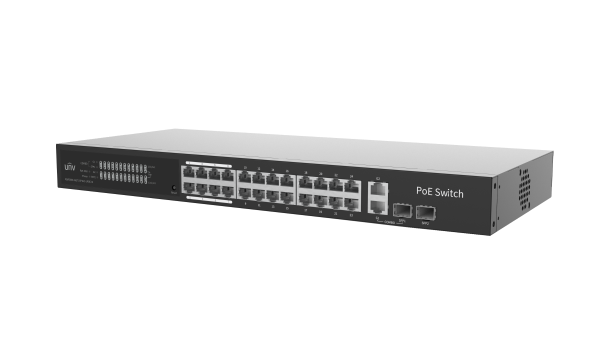

Specifications Uniview NSW3000-25GT1GP1GC-LPOE-IN
| Features | Description |
|---|---|
| Product Type | Cloud Managed Gigabit Low Power PoE Switch |
| PoE Ports | 24 × 10/100/1000 Mbps PoE RJ45 |
| Uplink Port | 1 × 10/100/1000 Mbps RJ45 |
| SFP Port | 1 × Gigabit SFP |
| Combo Port | 1 × Gigabit Combo |
| Switching Capacity | 54 Gbps |
| Forwarding Performance | 40.176 Mpps |
| Packet Buffer | 4 Mbit |
| MAC Address Table | 8K |
| PoE | Description |
|---|---|
| PoE Standard | IEEE 802.3af / IEEE 802.3at |
| PoE Budget | Up to 250 W Total |
| PoE Power per Port | Up to 30 W |
| PoE Mode | Mode A (1/2+, 3/6-) / Mode B (4/5+, 7/8-) |
| Priority Ports | Ports 1–8 |
| PoE Transmission | Up to 250 m using Standard Network Cable |
| Extend Mode | Up to 250 m Communication Distance at 10 Mbps |
| Management & Functions | Description |
|---|---|
| Cloud Management | APP / Web / Client Management |
| VLAN | Access / Trunk, Up to 32 VLANs |
| Link Aggregation | Supported, 2 Uplink Ports |
| Port Mirroring | N:1 Port Mirroring |
| Port Isolation | Supported on Downlink Ports |
| Rate Limitation | Supported |
| Broadcast Storm Control | Supported |
| Loop Detection | Supported |
| PoE Management | View, Enable/Disable and Remotely Restart PoE Power |
| Network Topology | Automatic Discovery of Connected Video Devices and Topology Generation |
| General | Description |
|---|---|
| Network Standards | IEEE 802.3, 802.3u, 802.3z, 802.3ab, 802.3x, 802.3af, 802.3at, 802.3az |
| Power Supply | AC 100–240 V, 50/60 Hz |
| Maximum Power Consumption | 260 W |
| Cooling | 1 × Cooling Fan |
| Operating Temperature | 0°C to 45°C |
| Operating Humidity | 5%–90%, Non-Condensing |
| Dimension | 440 × 189.8 × 44 mm |
| Weight | 2.22 kg |
| Compliance | NDAA Compliant |
Note: The Uniview NSW3000-25GT1GP1GC-LPOE-IN is a Cloud Managed Gigabit Low Power PoE Switch featuring 24 × Gigabit PoE ports, 1 × Gigabit RJ45 uplink, 1 × Gigabit SFP, and 1 × Gigabit Combo port. It supports IEEE 802.3af/at, up to 250 W total PoE power, up to 30 W per port, cloud management, VLAN, link aggregation, port isolation, and up to 250 m transmission in Extend mode.
