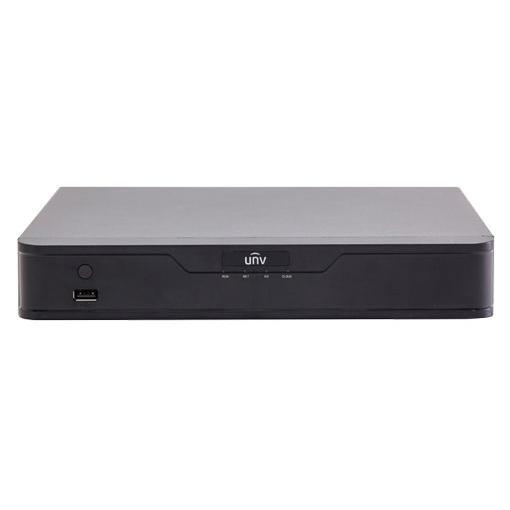

Specifications Uniview NVR301-04B-P4
| Features | Description |
|---|---|
| Product Type | 4-Channel PoE Network Video Recorder |
| IP Video Input | 4 Channels |
| Incoming Bandwidth | 40 Mbps |
| Outgoing Bandwidth | 40 Mbps |
| Decoding | Ultra 265 / H.265 / H.264 |
| Recording Resolution | 1080p / 960p / 720p / D1 / 2CIF / CIF |
| Synchronous Playback | 4 Channels |
| HDMI Output | Up to 1920 × 1080 @ 60 Hz |
| VGA Output | Up to 1920 × 1080 @ 60 Hz |
| Hard Disk | 1 × SATA Interface, up to 6 TB |
| Network Interface | 1 × RJ45 10/100 Mbps |
| PoE Ports | 4 × Independent 100 Mbps PoE Ports |
| PoE Power | Max. 30 W per port, 54 W total |
| PoE Standard | IEEE 802.3at / IEEE 802.3af |
| USB | 2 × USB 2.0 |
| Power Supply | 48 VDC |
| Power Consumption | ≤ 5 W without HDD |
| Operating Temperature | -10°C ~ 55°C |
| Dimensions | 44 × 260 × 240 mm |
| Weight | ≤ 1.12 kg without HDD |
| VIDEO & NETWORK | |
|---|---|
| IP Video Input | 4 Channels |
| Incoming Bandwidth | 40 Mbps |
| Outgoing Bandwidth | 40 Mbps |
| Remote Users | 128 |
| Network Protocols | P2P / UPnP / NTP / DHCP / PPPoE |
| Network Interface | 1 × RJ45 10/100 Mbps Self-Adaptive Ethernet |
| VIDEO OUTPUT & RECORDING | |
|---|---|
| HDMI Output | 1920 × 1080p / 60 Hz, 1920 × 1080p / 50 Hz, 1600 × 1200 / 60 Hz, 1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz |
| VGA Output | 1920 × 1080p / 60 Hz, 1920 × 1080p / 50 Hz, 1600 × 1200 / 60 Hz, 1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz |
| Recording Resolution | 1080p / 960p / 720p / D1 / 2CIF / CIF |
| Synchronous Playback | 4 Channels |
| Corridor Mode | 3 / 4 Screen |
| DECODING | |
|---|---|
| Decoding Format | Ultra 265 / H.265 / H.264 |
| Live View / Playback | 1080p / 960p / 720p / D1 / 2CIF / CIF |
| Decoding Capability | 4 × 1080p @ 20 fps / 4 × 720p @ 30 fps |
| STORAGE | |
|---|---|
| SATA | 1 × SATA Interface |
| Maximum Capacity | Up to 6 TB per HDD |
| PoE | |
|---|---|
| PoE Interface | 4 × Independent 100 Mbps PoE Network Interfaces |
| Maximum Power per Port | 30 W |
| Total PoE Power | 54 W |
| Supported Standards | IEEE 802.3at / IEEE 802.3af |
| INTERFACE | |
|---|---|
| Network | 1 × RJ45 10/100 Mbps |
| USB | Front: 1 × USB 2.0; Rear: 1 × USB 2.0 |
| POWER & GENERAL | |
|---|---|
| Power Supply | 48 VDC |
| Power Consumption | ≤ 5 W without HDD |
| Operating Temperature | -10°C ~ 55°C |
| Operating Humidity | 10% ~ 90% |
| Dimensions | 44 × 260 × 240 mm |
| Weight | ≤ 1.12 kg without HDD |
Note: The Uniview NVR301-04B-P4 is a 4-channel PoE Network Video Recorder supporting Ultra 265/H.265/H.264 video compression, up to 40 Mbps incoming bandwidth, 4-channel synchronous playback, 1 SATA HDD up to 6 TB, 4 independent 100 Mbps PoE ports with up to 54 W total PoE power, HDMI/VGA output, and IEEE 802.3at/802.3af PoE standards.
