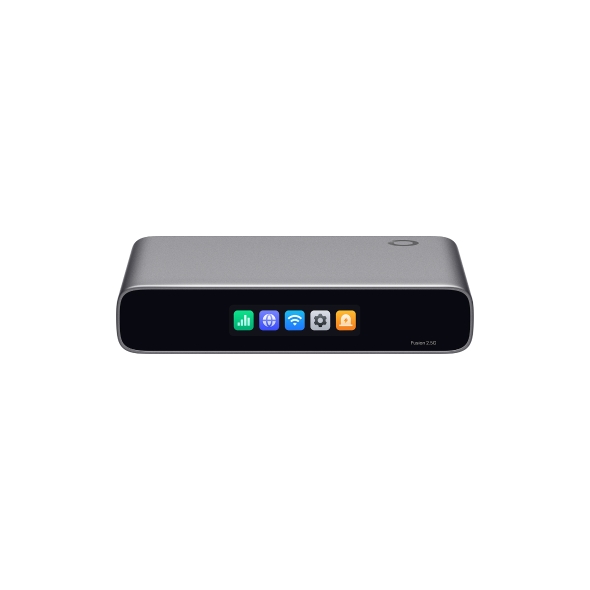

Specifications TP-Link Omada Fusion 2.5G
| Features | Description |
|---|---|
| Product Type | Omada Fusion 2.5G Gateway |
| Built-in Controller | Omada Controller |
| Ethernet Ports | 1 × 2.5G RJ45 WAN + 4 × 2.5G RJ45 WAN/LAN |
| WAN Ports | Up to 4 Simultaneous WAN Ports |
| IDS/IPS Throughput | 2,183 Mbps |
| Site-to-Site VPN Throughput | 1,023 Mbps |
| Managed Omada Devices | Recommended for up to 30 Devices |
| Client Capacity | Recommended for up to 300 Connected Clients |
| Management | Cloud, Local and Omada App Management |
| Cloud Management | License-Free Cloud Management |
| Multi-Site Management | Supported via Omada Cloud Management Platform |
| Multi-WAN | WAN Load Balancing and Auto Failover |
| VLAN | VLAN Segmentation |
| QoS | Auto QoS and Bandwidth Control |
| Routing | Static Routing and Policy Routing |
| VPN | IPsec, OpenVPN, WireGuard, PPTP, L2TP and Omada LightLink VPN |
| Firewall | ACL, NAT, Content Filtering and Ad Blocking |
| DPI | Deep Packet Inspection |
| SD-WAN | Full Mesh SD-WAN |
| Touchscreen | 2.51-inch Color LCM Touchscreen |
| CPU | Quad-Core ARM Cortex-A53 @ 2.0 GHz |
| Memory | 2 GB DDR4 |
| Storage | 64 Mbit NOR Flash + 16 GB eMMC |
| Fan | Fanless |
| Onboarding | Bluetooth or Ethernet |
| Power Supply | USB Type-C, 5V DC / 3A |
| Max Power Consumption | 8.18 W |
| Surge Protection | 4 kV |
| ESD Protection | ±8 kV Air / ±4 kV Contact |
| Mounting | Desktop / Wall-Mount / Rack-Mount |
| Dimensions | 160 × 130 × 31.5 mm |
| Weight | 510 g |
| Operating Temperature | -10°C to 40°C |
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Certifications | CE, FCC, RoHS |
| NETWORK FEATURES | |
|---|---|
| Multi-WAN | Up to 4 WAN Connections |
| Load Balancing | WAN Load Balancing |
| Failover | Automatic WAN Failover |
| VLAN | VLAN Segmentation |
| QoS | Auto QoS / Bandwidth Control |
| Routing | Static Routing / Policy Routing |
| Firewall | ACL / NAT / Port Forwarding / DMZ / ALG / UPnP |
| DPI | Deep Packet Inspection |
| SD-WAN | Full Mesh SD-WAN |
| VPN FEATURES | |
|---|---|
| Site-to-Site VPN | Up to 1,023 Mbps |
| VPN Protocols | IPsec / OpenVPN / WireGuard / PPTP / L2TP |
| Remote Access | Omada LightLink VPN |
| OMADA CONTROLLER | |
|---|---|
| Controller | Built-in Omada Controller |
| Cloud Management | Supported |
| Local Management | Supported |
| Omada App | Supported |
| Multi-Site Management | Supported |
| Automatic Device Discovery | Supported |
| Network Topology | Supported |
| Batch Firmware Upgrade | Supported |
| Health Monitoring | Supported |
| APPLICATION | |
|---|---|
| Small Business | Centralized Network Management |
| Multi-Site Network | Multi-Site Cloud Management |
| Enterprise Network | Gateway and Omada Controller Integration |
| Network Security | Firewall / IDS / IPS / ACL / DPI |
| Internet Connectivity | Multi-WAN Load Balancing and Failover |
Note: The Omada Fusion 2.5G is an integrated Gateway and Omada Controller designed for small businesses and multi-site networks. It features 5 × 2.5G Ethernet ports, up to 4 simultaneous WAN connections, 2.1 Gbps-class IDS/IPS throughput, built-in Omada Controller, License-Free Cloud Management, Multi-WAN Load Balancing, Auto Failover, VLAN, QoS, SD-WAN and multiple VPN technologies. It supports up to 30 managed Omada devices and 300 connected clients, making it suitable for centralized network management and secure business connectivity.
