Specifications Reyee RG-ES209GC-P
|
Product Specification |
|
|
Overview |

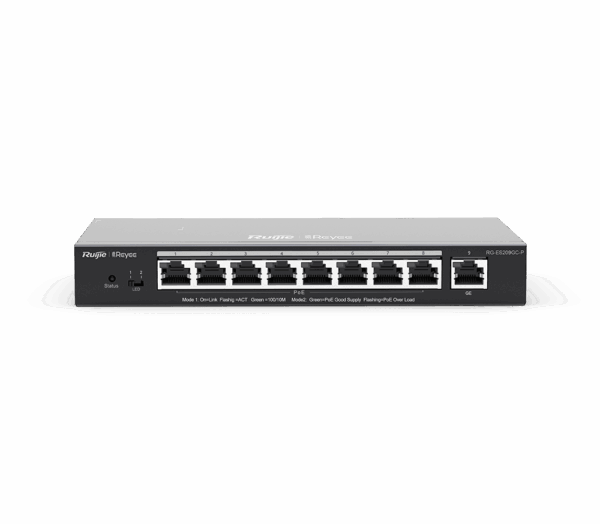

Reyee RG-ES209GC-P Reyee Cloud Managed Smart Switch for IP surveillance 9 Port Gigabit, จ่ายไฟ 8 Port มาตรฐาน 802.3af/at กำลังไฟสูงสุด 120W รองรับการ Managed และ Monitor by Ruijie Cloud มาพร้อม Cloud License ตลอดชีพ |
|
Ports |
810/100/1000 Base-T ports (PoE/PoE+) |
|
Maximum output power per PoE port |
30W |
|
Maximum PoE output power per switch |
120W |
|
Switching capacity |
18Gbps |
|
Packet forwarding rate |
13.392Mpps |
|
Surge protection |
Common mode: 4KV |
|
Electrostatic discharge |
Air discharge: 6KV |
|
Power consumption |
≤130W |
|
Power supply |
External power adapter |
|
Dimensions (W x D x H) |
202*108*28mm |
|
MTBF |
>200K |
|
Operating temperature |
0 to 40°C |
|
Storage temperature |
-40~70ºC |
|
Operating humidity |
10% to 90% RH |
|
Storage humidity |
5% to 95% RH |
|
MAC capacity |
4K |
|
Static MAC address |
16 |
|
VLAN |
Support 802.1Q VLAN |
|
Port management |
Support port status display, port traffic statistics, PoE port output power status, port duplex / negotiation rate configuration, flow control configuration, PoE output on/off |
|
Security |
Support broadcast storm suppression, port speed limit, port isolation |
|
L2 features |
Support port mirroring, loop protection, cable detection |
|
Management |
Support management and configuration through web management interface, Ruijie Cloud platform and Ruijie Cloud app |
