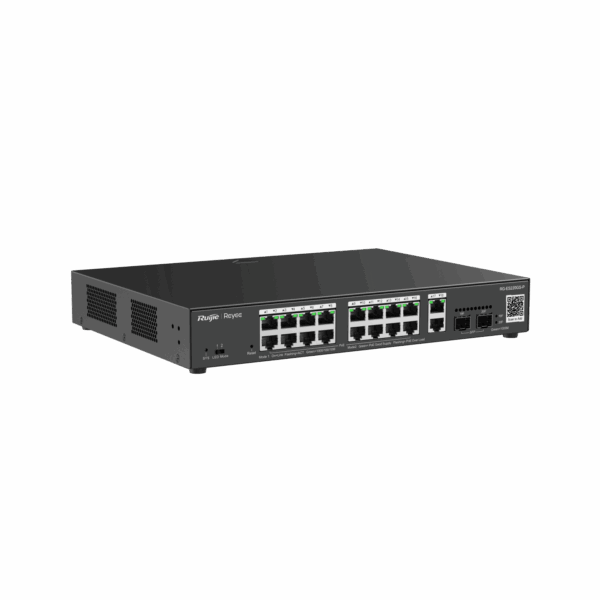

Specifications Ruijie Reyee RG-ES220GS-P
| Features | Description |
|---|---|
| Device Type | 20-Port Gigabit Smart Cloud Managed PoE Switch |
| Ports | 16 × 10/100/1000BASE-T PoE+ RJ45 Ports, 2 × Gigabit RJ45 Uplink Ports, 2 × Gigabit SFP Uplink Ports |
| PoE Standard | IEEE 802.3af / IEEE 802.3at |
| PoE Budget | 250W Total PoE Budget |
| Switching Capacity | 40Gbps |
| Forwarding Rate | 29.76Mpps |
| MAC Address Table | 8K Entries |
| Management | Smart Cloud Managed via Ruijie Cloud, Reyee App and Web Management |
| Surge Protection | 6kV Port Surge Protection |
| Application | CCTV, Office, Hotel, Factory, Retail Store and SMB Network |
| Switch Type | Layer 2 Smart Cloud Managed PoE Switch |
|---|---|
| Network Ports | 16 × Gigabit PoE+ Ports, 2 × Gigabit RJ45 Uplink Ports, 2 × Gigabit SFP Uplink Ports |
| Transmission Mode | Store-and-Forward |
| PoE Output | Up to 30W per PoE Port |
| Installation | Desktop / Rack Mount |
| Housing | Metal Enclosure |
| SMART FEATURES | |
|---|---|
| Cloud Management | Lifetime Free Remote Monitoring and Configuration via Ruijie Cloud |
| Flexible Uplink | 2 × Gigabit RJ45 Uplink Ports and 2 × Gigabit SFP Ports for Flexible Network Expansion |
| IPC Recognition | Automatically Detects IP Cameras for Simplified CCTV Deployment |
| Automatic Loop Prevention | Prevents Network Loops and Ensures Service Continuity |
| PoE Watchdog | Automatically Detects and Restarts Unresponsive PoE Devices |
| Extend Mode | Supports PoE Transmission up to 250 Meters for CCTV Deployment |
| Port Isolation | Enhances Network Security by Isolating Downlink Ports |
| GENERAL | |
|---|---|
| Power Supply | 100–240V AC, 50/60Hz |
| Operating Temperature | 0°C to 40°C |
| Dimensions | 440 × 214.9 × 43.6mm |
| Warranty | 3 Years |
Note: The RG-ES220GS-P is a 20-port Gigabit smart cloud managed PoE switch featuring 16 PoE+ ports, 2 Gigabit RJ45 uplink ports, 2 Gigabit SFP uplink ports, and a 250W PoE budget. It supports lifetime Ruijie Cloud management, Automatic Loop Prevention, IPC Recognition, PoE Watchdog, and 250m Extend Mode. Product specifications and software features are subject to change without prior notice.
Important: Ruijie Reyee RG-ES220GS-P is a 20-port Gigabit Smart PoE Switch with a 250W PoE budget, PoE Watchdog, 250m Extend Mode, Port Isolation, and Ruijie Cloud management—ideal for CCTV and SMB networks.
