| Features |
Description |
| Device Type |
5GHz Outdoor Wireless Bridge CPE (PTP/PTMP) |
| Wireless Standard |
IEEE 802.11a/n/ac (Wi-Fi 5) |
| Wireless Speed |
Up to 867Mbps @ 5GHz |
| Radio Design |
Dual-Radio 3 Spatial Streams (2.4GHz 1×1 SISO + 5GHz 2×2 MIMO) |
| Antenna |
Built-in 23dBi Directional Antenna (9° Horizontal / 9° Vertical) |
| Ethernet Port |
1 × 10/100Mbps Fast Ethernet RJ45 Port |
| Power Supply |
24V Passive PoE |
| Maximum Distance |
Up to 15km Point-to-Point Transmission |
| PTMP Capacity |
Supports up to 32 PTMP Client Links |
| Protection Rating |
IP65 Weatherproof, 6kV Surge Protection and ±24kV ESD Protection |
| Application |
WISP, CCTV, Factory, City Road, Campus and Building-to-Building Wireless Network |
| Bridge Type |
Outdoor Point-to-Point (PTP) / Point-to-Multipoint (PTMP) CPE |
| Ethernet Interface |
1 × 10/100Mbps Fast Ethernet Port |
| Channel Width |
5GHz: Auto / 20 / 40 / 80MHz |
| Installation |
Wall Mount / Pole Mount |
| Maximum Power Consumption |
≤12W |
| Wind Resistance |
Up to 220.32 km/h (137 mph) |
| SMART FEATURES |
| PTP Transmission |
Supports Long-Distance Wireless Bridge Links up to 15km |
| PTMP Pairing |
Supports Easy Pairing Within 30 Seconds for PTMP Deployment |
| Cloud Management |
All-in-One Remote Management via Ruijie Cloud and Reyee App |
| SON |
Supports Self-Organizing Network for Automatic Configuration and Optimization |
| AI Heatmap |
Supports Wireless Bridge Coverage Visualization and Optimization |
| Link Optimization |
Supports Spectrum Scan, Channel Optimization and Link Alignment Tool |
| Bridge Speed Test |
Supports Wireless Link Quality and Throughput Testing |
| Security |
Supports WPA2-PSK, VLAN and Network Diagnostics |
| GENERAL |
| Power Supply |
24V Passive PoE |
| Operating Temperature |
-40°C to 70°C |
| Operating Humidity |
5% to 95% RH (Non-Condensing) |
| Dimensions |
368.5 × 271 × 368.5mm (Including Mounting Bracket) |
| MTBF |
400,000 Hours |
| Warranty |
3 Years |

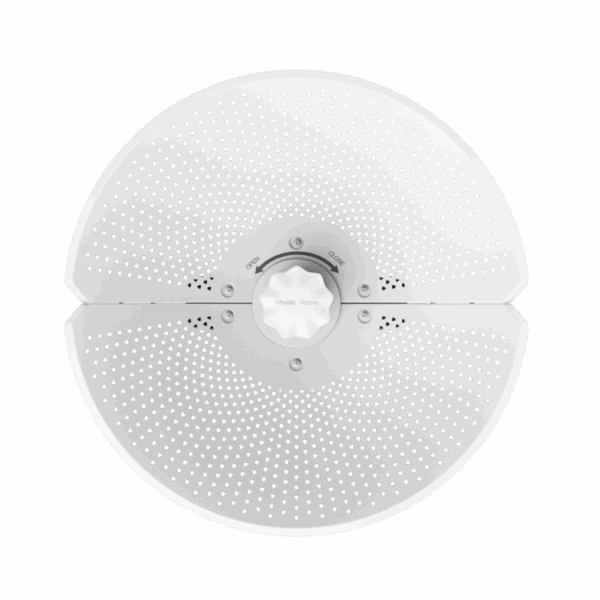

Note: The RG-AirMetro460F is a 5GHz outdoor wireless bridge CPE designed for PTP and PTMP deployments. It features a 23dBi directional antenna, 867Mbps wireless speed, transmission distances up to 15km, support for up to 32 PTMP links, IP65 protection, surge protection, and cloud-based management via Ruijie Cloud and Reyee App.
Important: Ruijie Reyee RG-AirMetro460F is a 5GHz Outdoor Wireless Bridge with 867Mbps speed, 23dBi directional antenna, 15km PTP range, IP65 protection, 6kV surge protection, and Ruijie Cloud management—ideal for WISP, CCTV, and long-range wireless deployments.
