| Features |
Description |
| Device Type |
5GHz Outdoor Wireless Bridge CPE (PTP/PTMP) |
| Wireless Standard |
IEEE 802.11a/b/g/n/ac (Wi-Fi 5) |
| Wireless Speed |
Up to 1166Mbps (300Mbps @ 2.4GHz + 866Mbps @ 5GHz) |
| Radio Design |
Dual-Radio 3 Spatial Streams (2.4GHz 1×1 SISO + 5GHz 2×2 MIMO) |
| Antenna |
Built-in 23dBi Directional Antenna (9° Horizontal / 9° Vertical) |
| Ethernet Port |
1 × 10/100/1000Mbps Gigabit RJ45 Port |
| Power Supply |
24V Passive PoE |
| Maximum Distance |
Up to 15km Point-to-Point Transmission |
| PTMP Capacity |
Supports up to 32 PTMP Client Links |
| Protection Rating |
IP65 Weatherproof, 6kV Surge Protection and ±24kV ESD Protection |
| Application |
CCTV, WISP, Factory, Campus, Construction Site and Building-to-Building Wireless Network |
| Bridge Type |
Outdoor Point-to-Point (PTP) / Point-to-Multipoint (PTMP) CPE |
| Ethernet Interface |
1 × Gigabit RJ45 Port |
| Channel Width |
2.4GHz: Auto/20/40MHz, 5GHz: Auto/20/40/80MHz |
| Installation |
Pole Mount |
| Maximum Power Consumption |
≤12W |
| Wind Resistance |
Up to 220.32 km/h (137 mph) |
| SMART FEATURES |
| Long Distance Bridge |
Supports Wireless Transmission Distance Up to 15km for Outdoor Network Links |
| One-Touch Pairing |
Quick Pairing Within 30 Seconds for Easy Wireless Bridge Installation |
| TDMA Technology |
Improves Wireless Efficiency and Reduces Interference in PTP/PTMP Deployments |
| Cloud Management |
All-in-One Remote Management via Ruijie Cloud and Reyee App |
| SON |
Supports Self-Organizing Network for Automatic Configuration and Optimization |
| AI Heatmap |
Supports Wireless Coverage Visualization and Network Optimization |
| Link Optimization |
Supports Spectrum Scan, Channel Optimization and Bridge Speed Test |
| Security |
Supports WPA2-PSK Encryption, VLAN and Network Diagnostics |
| GENERAL |
| Power Supply |
24V Passive PoE |
| Operating Temperature |
-40°C to 70°C |
| Operating Humidity |
5% to 95% RH (Non-Condensing) |
| Dimensions |
368.5 × 271 × 368.5mm (Including Mounting Bracket) |
| Weight |
0.20kg (Without Packaging) |
| MTBF |
400,000 Hours |
| Warranty |
3 Years |

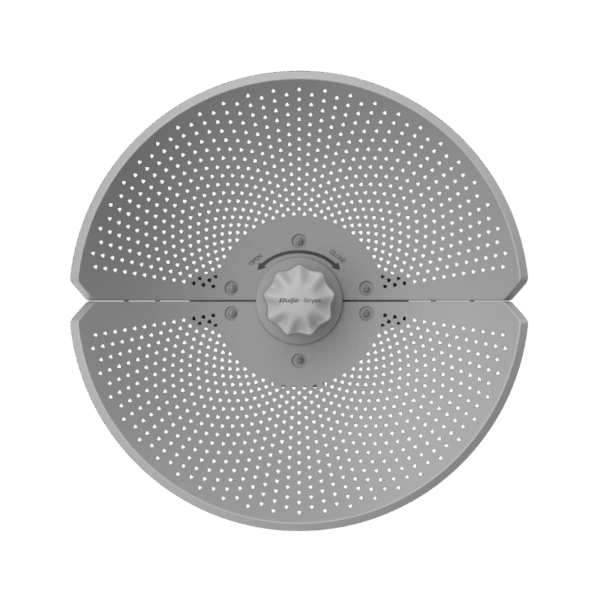

Note: The RG-AirMetro460G is a 5GHz outdoor wireless bridge CPE designed for PTP and PTMP applications. It features a 23dBi directional antenna, dual-radio design, wireless speed up to 1166Mbps, Gigabit Ethernet port, transmission distance up to 15km, IP65 protection, and cloud management via Ruijie Cloud and Reyee App.
Important: Ruijie Reyee RG-AirMetro460G is a 5GHz Outdoor Wireless Bridge with Wi-Fi 5, 23dBi directional antenna, Gigabit Ethernet, 15km PTP range, IP65 protection, and Ruijie Cloud management—ideal for CCTV backhaul, WISP, and long-distance wireless networks.
