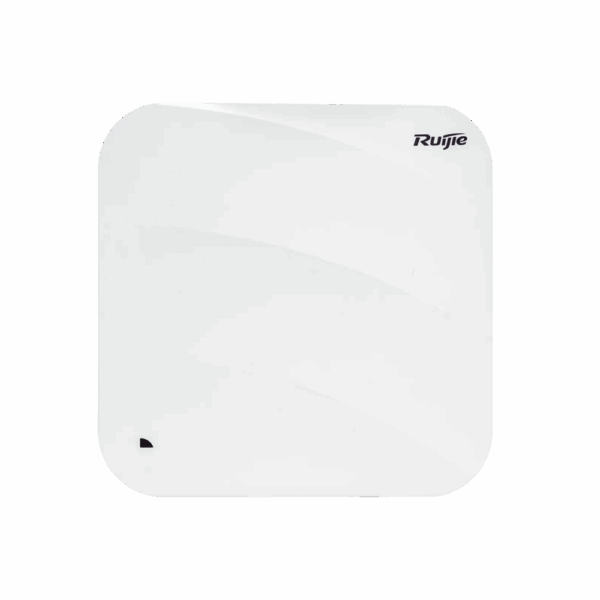

Specifications Ruijie RG-AP880-L
| Features | Description |
|---|---|
| Product Type | Wi-Fi 6E Indoor Tri-Radio Access Point |
| Wireless Standard | IEEE 802.11a/b/g/n/ac/ax |
| Radio Design | Tri-Radio: 2.4GHz + 5GHz + 6GHz |
| Maximum Data Rate | 7.780Gbps |
| Spatial Streams | Up to 8 Spatial Streams |
| Antennas | Built-in Omnidirectional Antennas |
| Management | Ruijie Cloud / Web / Local Management |
| PoE | IEEE 802.3af/at/bt |
| Bluetooth | Bluetooth 5.1 |
| Maximum Power Consumption | 40W |
| WIRELESS | |
|---|---|
| Wireless Standard | IEEE 802.11a/b/g/n/ac/ax |
| Radio Design | Tri-Radio |
| 2.4GHz Radio | 2 × 2:2 MU-MIMO, Up to 574Mbps |
| 5GHz Radio | 2 × 2:2 MU-MIMO, Up to 2.402Gbps |
| 6GHz Radio | 4 × 4:4 MU-MIMO, Up to 4.804Gbps |
| Combined Data Rate | Up to 7.780Gbps |
| Spatial Streams | Up to 8 Spatial Streams |
| Channel Width | Up to 160MHz |
| OFDMA | Supported |
| MU-MIMO | Supported |
| BSS Coloring | Supported |
| ANTENNA | |
|---|---|
| Antenna Type | Built-in Omnidirectional Antennas |
| 2.4GHz Antennas | 2 × Internal Antennas |
| 5GHz Antennas | 2 × Internal Antennas |
| 6GHz Antennas | 4 × Internal Antennas |
| Maximum Gain | 5.9dBi @ 2.4GHz / 6.2dBi @ 5GHz |
| NETWORK INTERFACE | |
|---|---|
| Main Ethernet Port | 1 × 100/1000/2500/5000BASE-T RJ45 |
| Optical / Ethernet Combo Port | 1 × 5GE SFP/RJ45 Combo Port |
| Management Port | 1 × 10/100/1000BASE-T RJ45 |
| Console Port | 1 × RJ45 Console Port |
| USB | 1 × USB 3.0 Type-A |
| PERFORMANCE | |
|---|---|
| Maximum Wireless Data Rate | 7.780Gbps |
| Maximum Concurrent Clients | Up to 1,536 STAs |
| Clients per Radio | Up to 512 STAs per Radio |
| Maximum BSSIDs | 45 |
| BSSIDs per Radio | Up to 15 per Radio |
| Wireless Roaming | Layer 2 / Layer 3 Roaming |
| Load Balancing | Supported |
| WIRELESS FEATURES | |
|---|---|
| OFDMA | Supported |
| MU-MIMO | Supported |
| BSS Coloring | Supported |
| Target Wake Time | Supported |
| 802.11k/v/r | Supported |
| Intelligent Roaming | Supported |
| Bandwidth Limiting | STA / SSID / AP Based |
| SSID Hiding | Supported |
| SECURITY | |
|---|---|
| Security Standards | WPA2 / WPA3 |
| Enhanced Open | Supported |
| 802.1X | Supported |
| UPSK | Supported |
| WLAN Security | Encryption / Authentication / Access Control |
| BLUETOOTH & IoT | |
|---|---|
| Bluetooth | Bluetooth 5.1 |
| IoT Support | Supported |
| Wireless Location | Supported |
| PoE Output | Supported |
| IoT Power Output | 48V / 12.95W |
| MANAGEMENT | |
|---|---|
| Cloud Management | Ruijie Cloud |
| Web Management | Supported |
| Local Management | Supported |
| Management Modes | Fat / Fit / Cloud |
| Management Protocols | Console / Telnet / SSH / SNMP / TFTP |
| Wireless Controller | Supported |
| POWER | |
|---|---|
| Power Supply | 54VDC / 1.1A or PoE |
| PoE Standard | IEEE 802.3af / 802.3at / 802.3bt |
| Maximum Power Consumption | 40W |
| Power Saving | IEEE 802.3az / Target Wake Time |
| PHYSICAL & GENERAL | |
|---|---|
| Installation | Wall / Ceiling Mount |
| Dimensions | 230 × 230 × 51mm |
| Net Weight | Approx. 1.0kg |
| Operating Temperature | -10°C to +50°C |
| Operating Humidity | 5%–95% RH, Non-Condensing |
Note: The Ruijie RG-AP880-L is a Wi-Fi 6E indoor tri-radio access point featuring 2.4GHz 2×2, 5GHz 2×2 and 6GHz 4×4 MU-MIMO radios with up to 8 spatial streams and a combined peak data rate of 7.780Gbps. It supports OFDMA, MU-MIMO, BSS Coloring, 802.11k/v/r roaming, WPA3, Bluetooth 5.1 and Ruijie Cloud management.
Important: The Ruijie RG-AP880-L is a Wi-Fi 6E Tri-Radio Indoor Access Point supporting 2.4GHz + 5GHz + 6GHz, with a combined wireless rate of up to 7.780Gbps. It provides 8 spatial streams, 5GbE Ethernet connectivity, IEEE 802.3af/at/bt PoE, WPA3 security, Bluetooth 5.1 and Ruijie Cloud management.
