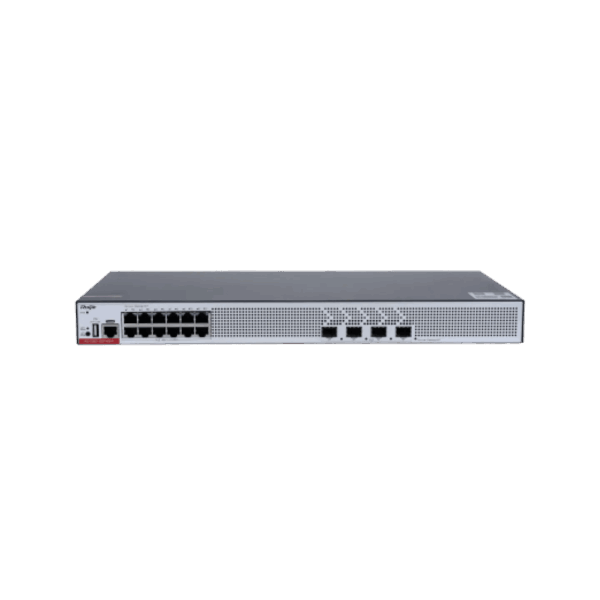

Specifications Ruijie RG-CS83-12GT4XS-P

Features	Description
Product Type	Layer 3 Managed Access Switch with PoE+
Gigabit RJ45 Ports	12 × 10/100/1000BASE-T
SFP+ Uplink Ports	4 × 1GE/10GE SFP+
PoE Standard	IEEE 802.3af/at
PoE Power Budget	Up to 370W
Switching Capacity	104Gbps
Packet Forwarding Rate	78Mpps
Management	Ruijie Cloud / Web / CLI / SNMP / Telnet / SSH
Layer	Layer 3

HARDWARE
RJ45 Ports	12 × 10/100/1000BASE-T with PoE/PoE+
SFP+ Ports	4 × 1GE/10GE SFP+
Console Port	1 × RJ45 Console Port
USB Port	1 × USB 2.0
CPU	Dual-Core CPU, 1.0GHz per Core
Memory	1GB RAM
Flash Memory	512MB
BootROM	16MB
Switch Buffer	1.5MB
MAC Address Table	16,000

POE
PoE Standard	IEEE 802.3af / IEEE 802.3at
PoE Ports	12 × RJ45 Ports
PoE Output	Up to 30W per Port
PoE Power Budget	Up to 370W
PoE Power Pairs	Mode A (1-2, 3-6 pairs)
Warm Start	Supported
Port Priority	Supported

PERFORMANCE
Switching Capacity	104Gbps
Packet Forwarding Rate	78Mpps
MAC Address Table	16,000
ARP Table	4,000
IPv4 Unicast Routes	6,000
IPv4 Multicast Routes	1,000
IPv6 Unicast Routes	2,000
IPv6 Multicast Routes	750
Jumbo Frame	Up to 9,216 Bytes

NETWORK FEATURES
VLAN	IEEE 802.1Q, Up to 4K VLANs
Voice VLAN	Supported
STP	STP / RSTP / MSTP
ERPS	G.8032
Link Aggregation	Supported
LLDP	LLDP / LLDP-MED
DHCP	DHCP Client / Relay / Server / Snooping
IPv6	IPv6 Routing / DHCPv6 / ND / MLD
IP Routing	Static Routing / RIP / RIPng / OSPFv2 / OSPFv3
Multicast	IGMP / IGMP Snooping / PIM-DM / PIM-SM / PIM-SSM

SECURITY
Authentication	802.1X / Web Authentication
AAA	RADIUS / TACACS+
ACL	Standard IP ACL / Extended IP ACL / MAC ACL / IPv6 ACL
Port Security	Supported
IP Source Guard	Supported
Port Isolation	Supported
HTTPS	Supported
SSH	SSH v1 / SSH v2

MANAGEMENT
Cloud Management	Ruijie Cloud
Web Management	Supported
CLI	Supported
Telnet	Supported
SNMP	SNMP v1 / v2c / v3
RMON	RMON 1 / 2 / 3 / 9
NETCONF	Supported
sFlow	Supported
Port Mirroring	Supported
NTP / SNTP	Supported
VSU	Up to 4 Members

RELIABILITY
Dual-Boot	Hardware-Level Dual-Boot Redundancy
VSU	Virtual Switching Unit
VRRP	IPv4 VRRP v2/v3 and IPv6 VRRP
BFD	Supported
Fan Monitoring	Supported
Temperature Monitoring	Supported

POWER & GENERAL
Power Input	100–240V AC, 50/60Hz
Maximum Input Current	6A
Built-in Power Supply	409W
Maximum Power Consumption	35W Non-PoE / 405W PoE Full Load
Dimensions	442 × 220 × 43.6mm
Rack Height	1U
Unit Weight	3.3kg
Cooling	1 × Fixed Fan Module
Operating Temperature	0°C to 45°C
Operating Humidity	10%–90% RH, Non-Condensing
Operating Altitude	0–5,000m

PROTECTION
Communication Port Surge Protection	Up to 10kV
PoE Power Surge Protection	Up to 8kV
Power Port Surge Protection	Common Mode 6kV / Differential Mode 8kV
ESD Protection	Contact 8kV / Air 15kV

Note: The Ruijie RG-CS83-12GT4XS-P is a Layer 3 Managed Access Switch featuring 12 × 10/100/1000BASE-T PoE/PoE+ ports and 4 × 1GE/10GE SFP+ uplink ports. It provides 104Gbps switching capacity and 78Mpps packet forwarding performance. The switch supports IEEE 802.3af/at PoE with up to 30W per port and a maximum PoE output of 370W. It supports advanced Layer 3 routing including Static Routing, RIP, RIPng, OSPFv2 and OSPFv3, as well as VLAN, STP/RSTP/MSTP, ACL, 802.1X, SNMP and Ruijie Cloud management.

Important: The Ruijie RG-CS83-12GT4XS-P is a Layer 3 Managed PoE+ Access Switch with 12 × Gigabit PoE/PoE+ RJ45 ports and 4 × 1GE/10GE SFP+ uplink ports. It supports IEEE 802.3af/at, providing up to 30W per PoE port and a maximum PoE output of 370W. The switch provides 104Gbps switching capacity and 78Mpps packet forwarding rate. It supports advanced Layer 3 features including Static Routing, RIP/RIPng, OSPFv2/OSPFv3, VRRP and IPv4/IPv6 routing, along with VLAN, ACL, 802.1X, SNMP, CLI, Web, SSH and Ruijie Cloud management. The switch also features 10kV communication-port surge protection and hardware-level Dual-Boot redundancy.
