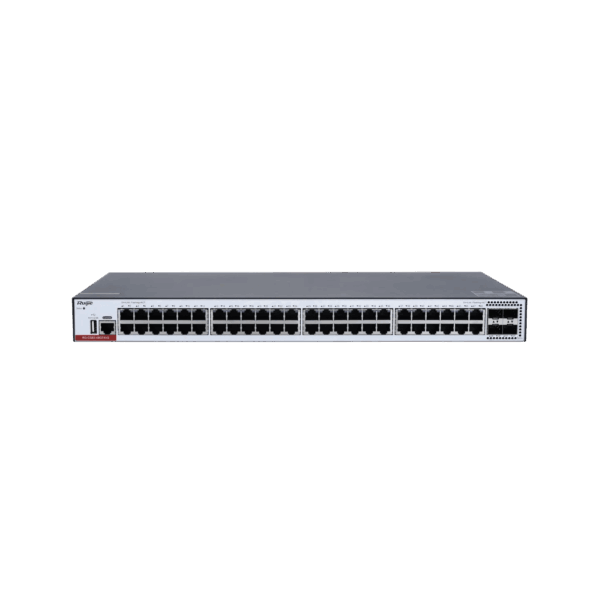

Specifications Ruijie Networks RG-CS83-48GT4XS
| Features | Description |
|---|---|
| Device Type | 48-Port Gigabit Layer 3 Managed Access Switch |
| Network Ports | 48 × 10/100/1000BASE-T RJ45 Ports |
| Uplink Ports | 4 × 1GE/10GE SFP+ Ports |
| Switching Capacity | 176 Gbps |
| Packet Forwarding Rate | 132 Mpps |
| MAC Address Table | 16K |
| Layer 3 Routing | Static Routing, RIP/RIPng, OSPFv2/OSPFv3, VRF and PBR |
| PoE | Not Supported |
| VSU | Supported, Up to 4 Members |
| Design | 1U Rack-Mountable with 1 Fixed Fan |
| INTERFACE | |
|---|---|
| Network Ports | 48 × 10/100/1000BASE-T RJ45 Ports |
| SFP+ Uplink Ports | 4 × 1GE/10GE SFP+ Ports |
| Console Port | 1 × RJ45 Console Port |
| USB | 1 × USB 2.0 Port |
| SWITCHING PERFORMANCE | |
|---|---|
| Switching Capacity | 176 Gbps |
| Packet Forwarding Rate | 132 Mpps |
| MAC Address Table | 16,000 |
| ARP Table | 4,000 |
| IPv4 Unicast Routes | 6,000 |
| IPv4 Multicast Routes | 1,000 |
| IPv6 Unicast Routes | 2,000 |
| IPv6 Multicast Routes | 750 |
| ACL Entries | Ingress: 1,750 / Egress: 800 |
| Switch Buffer | 1.5 MB |
| VSU Members | Up to 4 |
| SMART FEATURES | |
|---|---|
| Ruijie Cloud | Cloud-Based Network Management, Monitoring and Configuration |
| Zero Touch Provisioning | Supported via Ruijie Cloud |
| VSU | Virtual Switching Unit, Supports Up to 4 Members |
| Hardware Boot Redundancy | Dual Flash Chips Provide 1+1 Boot Redundancy |
| Online Fault Recovery | Supports Online Process Fault Rectification Without Interrupting Network Operation |
| Python | Supported for Cross-Platform Applications |
| Online Upgrade | Supports Online Function Upgrade and Extension |
| RLDP | Rapid Link Detection Protocol for Network Loop Detection |
| CPP | CPU Protection Policy Helps Protect the CPU from Excessive Traffic |
| NFPP | Network Foundation Protection Policy Helps Protect the Network from Abnormal or Malicious Traffic |
| 10kV Surge Protection | 10kV Communication Port Surge Protection |
| EEE | IEEE 802.3az Energy Efficient Ethernet |
| LAYER 3 FEATURES | |
|---|---|
| Static Routing | Supported |
| RIP | RIP / RIPng |
| OSPF | OSPFv2 / OSPFv3 |
| VRF | IPv4 / IPv6 VRF |
| Policy-Based Routing | IPv4 / IPv6 PBR |
| IPv4 / IPv6 | Dual-Stack Supported |
| Multicast Routing | IGMP v1/v2/v3, IGMP Proxy, PIM-DM, PIM-SM and PIM-SSM |
| MLD | MLD v1/v2, MLD Snooping, PIM-SMv6 and PIM-SSM v6 |
| SWITCHING FEATURES | |
|---|---|
| VLAN | IEEE 802.1Q, Up to 4K VLANs |
| Voice VLAN | Supported |
| Super VLAN | Supported |
| Private VLAN | Supported |
| MAC-Based VLAN | Supported |
| Interface-Based VLAN | Supported |
| Protocol-Based VLAN | Supported |
| IP-Subnet-Based VLAN | Supported |
| GVRP | Supported |
| QinQ | Basic QinQ / Selective QinQ |
| STP | STP / RSTP / MSTP |
| ERPS | IEEE G.8032 |
| Link Aggregation | LACP (IEEE 802.3ad) |
| LLDP | LLDP / LLDP-MED |
| Jumbo Frame | Up to 9,216 Bytes |
| EEE | IEEE 802.3az |
| NETWORK MANAGEMENT & SECURITY | |
|---|---|
| Management Methods | Ruijie Cloud, Web, CLI, Telnet, SNMP, RMON and Syslog |
| SNMP | SNMP v1 / v2c / v3 |
| Authentication | RADIUS / TACACS+ |
| 802.1X | Supported |
| Web Authentication | Supported |
| SSH | SSH Supported |
| HTTPS | Supported |
| DHCP | DHCP Client / Server / Relay / Snooping |
| DHCPv6 | DHCPv6 Client / Relay / Server / Snooping |
| IP Source Guard | Supported |
| IGMP Snooping | IGMP v1/v2 Snooping |
| sFlow | Supported |
| QOS & ACL | |
|---|---|
| ACL | Standard IP ACL, Extended IP ACL, Extended MAC ACL, Time-Based ACL, Expert-Level ACL and IPv6 ACL |
| Traffic Rate Limiting | Supported |
| QoS | 802.1p / DSCP / ToS |
| Priority Queues | 8 Queues per Interface |
| Congestion Management | RR, SP, WRR, DRR, WFQ, SP+WRR, SP+DRR and SP+WFQ |
| Congestion Avoidance | Tail Drop |
| HARDWARE | |
|---|---|
| CPU | Dual-Core CPU, 1.0GHz per Core |
| Memory | 1GB |
| Flash Memory | 512MB |
| BootROM | 16MB, Supporting 1+1 Boot Redundancy |
| Switch Buffer | 1.5MB |
| Fan | 1 × Fixed Fan Module |
| Rack Height | 1U |
| POWER | |
|---|---|
| Power Supply | 1 × Built-in Fixed AC Power Supply |
| Rated Input Voltage | 100–240V AC, 50/60Hz |
| Maximum Input Voltage | 90–264V AC, 47–63Hz |
| Maximum Input Current | 1.5A |
| Maximum Power Consumption | 40W |
| PoE | Not Supported |
| ENVIRONMENT & RELIABILITY | |
|---|---|
| Operating Temperature | 0°C to 45°C |
| Storage Temperature | -40°C to 70°C |
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Storage Humidity | 5% to 95% RH, Non-Condensing |
| Operating Altitude | 0m to 5,000m |
| MTBF | 208,926 Hours |
| Fan | 1 × Fixed Fan Module |
| Airflow | Front-to-Right and Left-to-Right |
| Acoustic Noise | 32dB at 27°C |
| Surge Protection | Communication Port: 10kV; Power Port: 6kV Common Mode / 6kV Differential Mode |
| PHYSICAL | |
|---|---|
| Dimensions | 442 × 220 × 43.6 mm |
| Weight | 3.25kg |
| Installation | 19-inch Rack Mount, 1U |
Note: The Ruijie RG-CS83-48GT4XS is a 48-port Gigabit Layer 3 managed access switch designed for enterprise and campus LAN environments. It provides 48 × 10/100/1000BASE-T RJ45 ports and 4 × 1GE/10GE SFP+ uplink ports, with 176Gbps switching capacity and 132Mpps packet forwarding performance. It supports VLAN, STP/RSTP/MSTP, ERPS, LACP, Layer 3 routing, multicast routing, ACL, QoS, 802.1X, VSU and Ruijie Cloud management.
Important: The RG-CS83-48GT4XS is the non-PoE version and does not provide PoE power. All 48 RJ45 ports support 10/100/1000Mbps, while the 4 SFP+ uplink ports support 1Gbps/10Gbps. The switch uses a built-in fixed 40W AC power supply, has 1 fixed fan, and supports up to 4 VSU members.
