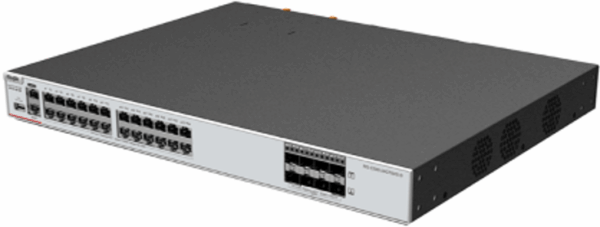

Specifications Ruijie RG-CS85-24GT8XS-D
| Features | Description |
|---|---|
| Product Type | Layer 3 Enterprise Core / Aggregation Switch |
| RJ45 Ports | 24 x 10/100/1000BASE-T |
| SFP+ Ports | 8 x 1GE/10GE SFP+ |
| Expansion Slot | 1 x Expansion Module Slot |
| Expansion Module | CM85-4XS2CQ: 4 x 1GE/10GE SFP+ and 2 x 40GE/100GE QSFP28 Ports |
| Management Ports | 1 x RJ45 Console Port, 1 x RJ45 Management Port |
| USB Port | 1 x USB 3.0 |
| Power Module Slots | 2 x Power Module Slots |
| Power Module | RG-PA150IB-F 150 W AC Power Module |
| Switching Capacity | 688 Gbps |
| Forwarding Rate | 512 Mpps |
| MAC Address Table | 64,000 Entries |
| ARP Table | 24,000 Entries |
| IPv4 Unicast Routes | 24,000 |
| IPv6 Unicast Routes | 14,000 |
| VSU | Up to 4 Members |
| NETWORK FEATURES | Description |
|---|---|
| Layer 3 Routing | Static Routing, RIP, RIPng, OSPFv2, OSPFv3, IS-ISv4, and IS-ISv6 |
| VLAN | IEEE 802.1Q VLAN |
| Link Aggregation | IEEE 802.3ad LACP |
| Spanning Tree | STP, RSTP, and MSTP |
| Ring Protection | ERPS (G.8032) |
| DHCP | DHCP Client, DHCP Relay, DHCP Server, and DHCP Snooping |
| IPv6 | Dual-Stack, DHCPv6, DHCPv6 Relay, DHCPv6 Snooping, ND, and ND Snooping |
| Multicast | IPv4 and IPv6 Multicast Routing |
| Jumbo Frame | Up to 9216 Bytes |
| LLDP | LLDP / LLDP-MED |
| SECURITY & MANAGEMENT | Description |
|---|---|
| CPU Protection | CPP and NFPP |
| Management | Ruijie Cloud, CLI, Eweb, Telnet, SNMP, RMON, and Syslog |
| Zero Touch Provisioning | Supported through Ruijie Cloud |
| VSU Virtualization | Supported |
| Boot Redundancy | 1+1 Boot Redundancy with Dual Flash Chips |
| Power Redundancy | Supports Dual Power Modules with Failover |
| Hot-Swappable Power | Supported |
| Flash Memory | 4 GB |
| System Memory | 1 GB |
| Switch Buffer | 4 MB |
| GENERAL | Description |
|---|---|
| CPU | Dual-Core CPU, 1.2 GHz per Core |
| Dimensions | 440 mm x 340 mm x 44 mm |
| Rack Height | 1 RU |
| Weight | Approx. 4.4 kg |
| Operating Temperature | 0°C to 45°C |
| Storage Temperature | -40°C to 70°C |
| Operating Humidity | 10% to 90% RH, non-condensing |
| Operating Altitude | 0 m to 5,000 m |
| Fan | 3 x Fixed Fan Modules |
| Airflow | Left-to-Right |
| MTBF | 1,051,000 Hours |
| Warranty | 3 Years |
Note: The Ruijie RG-CS85-24GT8XS-D is a Layer 3 enterprise-class core or aggregation switch featuring 24 x Gigabit RJ45 ports and 8 x 1GE/10GE SFP+ uplink ports. It is designed for small and medium-sized campus networks and enterprise aggregation applications.
Important: The switch provides 688 Gbps switching capacity and 512 Mpps forwarding performance. It supports VSU virtualization, Layer 3 routing, dual power module redundancy, dual Flash boot redundancy, Ruijie Cloud management, and the optional CM85-4XS2CQ expansion module.
