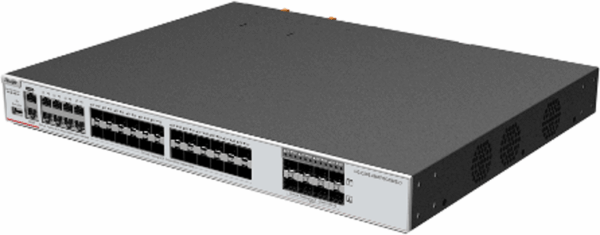

Specifications Ruijie Networks RG-CS85-24SFP/8GT8XS-D
| Features | Description |
|---|---|
| Device Type | Layer 3 Managed Core/Aggregation Switch |
| SFP Ports | 24 × 1GE SFP Ports, with 8 × 1GE SFP/RJ45 Combo Ports |
| Uplink Ports | 8 × 1GE/10GE SFP+ Ports |
| Switching Capacity | 688 Gbps |
| Packet Forwarding Rate | 512 Mpps |
| MAC Address Table | 64K |
| VSU | Supported, Up to 4 Members |
| Layer 3 Routing | Static Routing, RIP, OSPF, IS-IS, BGP and IPv4/IPv6 |
| Management | Ruijie Cloud, Web, CLI, Telnet, SNMP, RMON and Syslog |
| Power Supply | 2 × Hot-Swappable Modular Power Supply Slots |
| Design | 1U Rack-Mountable with Built-in Fans |
| INTERFACE | |
|---|---|
| SFP Ports | 24 × 1GE SFP Ports |
| Combo Ports | Ports 1–8 support 1GE SFP / 10/100/1000BASE-T RJ45 |
| 100Mbps Support | SFP Ports 1–16 support 100Mbps/1Gbps; Ports 17–24 support 1Gbps only |
| SFP+ Uplink Ports | 8 × 1GE/10GE SFP+ Ports |
| Expansion Slot | 1 × Expansion Module Slot |
| Management Port | 1 × RJ45 MGMT Port |
| Console Port | 1 × RJ45 Console Port |
| USB | 1 × USB 3.0 Port |
| Power Module Slots | 2 × Modular Power Supply Slots |
| SWITCHING PERFORMANCE | |
|---|---|
| Switching Capacity | 688 Gbps |
| Packet Forwarding Rate | 512 Mpps |
| MAC Address Table | 64,000 |
| ARP Table | 24,000 |
| IPv4 Unicast Routes | 24,000 |
| IPv4 Multicast Routes | 4,000 |
| IPv6 Unicast Routes | 14,000 |
| IPv6 Multicast Routes | 2,000 |
| ACL Entries | Ingress: 7,000 / Egress: 1,500 |
| Switch Buffer | 4 MB |
| VSU Members | Up to 4 |
| SMART FEATURES | |
|---|---|
| Ruijie Cloud | Cloud-Based Network Management, Monitoring and Configuration |
| VSU | Virtual Switching Unit, Supports Up to 4 Members for Network Virtualization and Redundancy |
| Zero Touch Provisioning | Supported |
| Hardware Boot Redundancy | Dual Flash Chips Provide 1+1 Boot Program Redundancy |
| Hot-Swappable Power | Supported |
| CPP | CPU Protection Policy Helps Protect the CPU Against Excessive Traffic |
| NFPP | Network Foundation Protection Policy Helps Protect the Network from Abnormal or Malicious Traffic |
| Network Monitoring | Real-Time Device and Network Monitoring |
| Configuration Backup | Supported via USB |
| LAYER 3 FEATURES | |
|---|---|
| Static Routing | Supported |
| RIP | Supported |
| RIPng | Supported |
| OSPF | OSPFv2 / OSPFv3 |
| IS-IS | IS-ISv4 / IS-ISv6 |
| BGP | BGP4 / BGP4+ |
| IPv4 / IPv6 | Dual-Stack Supported |
| VRF | IPv4 / IPv6 VRF |
| Policy-Based Routing | Supported |
| Multicast Routing | IGMP / PIM |
| SWITCHING FEATURES | |
|---|---|
| VLAN | IEEE 802.1Q, Up to 4K VLANs |
| Voice VLAN | Supported |
| Private VLAN | Supported |
| MAC VLAN | Supported |
| Protocol VLAN | Supported |
| IP-Subnet VLAN | Supported |
| QinQ | Basic QinQ / Flexible QinQ |
| GVRP | Supported |
| STP | STP / RSTP / MSTP |
| ERPS | IEEE G.8032 |
| Link Aggregation | LACP (IEEE 802.3ad) |
| LLDP | LLDP / LLDP-MED |
| Jumbo Frame | Up to 9,216 Bytes |
| NETWORK MANAGEMENT | |
|---|---|
| Management Methods | Ruijie Cloud, Web, CLI, Telnet, SNMP, RMON and Syslog |
| SNMP | SNMP v1 / v2c / v3 |
| DHCP | DHCP Client / Server / Relay / Snooping |
| IPv6 DHCP | DHCPv6 Client / Relay / Snooping |
| DNS | Supported |
| Configuration Backup | Supported via USB |
| HARDWARE | |
|---|---|
| CPU | Dual-Core CPU, 1.2GHz per Core |
| Memory | 1GB |
| Flash Memory | 4GB |
| BootROM | 16MB, 2 Flash Chips for 1+1 Boot Redundancy |
| Switch Buffer | 4MB |
| Expansion Slot | 1 × Expansion Module Slot |
| Rack Height | 1U |
| EXPANSION | |
|---|---|
| Expansion Module | CM85-4XS2CQ |
| Expansion Interfaces | 4 × 1GE/10GE SFP+ Ports + 2 × 40GE/100GE QSFP28 Ports |
| POWER | |
|---|---|
| Power Supply | 2 × Pluggable Modular Power Supply Slots |
| Power Module | RG-PA150IB-F |
| Power Module Output | 150W |
| Power Redundancy | 1+1 Redundancy |
| Power Module Hot Swap | Supported |
| Maximum Power Consumption | 77W Without Expansion Module / 102W With Expansion Module |
| ENVIRONMENT & RELIABILITY | |
|---|---|
| Operating Temperature | 0°C to 45°C |
| Storage Temperature | -40°C to 70°C |
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Storage Humidity | 5% to 95% RH, Non-Condensing |
| Operating Altitude | 0m to 5,000m |
| Fan | 3 × Built-in Fixed Fan Modules |
| Airflow | Left-to-Right |
| MTBF | 823,000 Hours |
| ESD Protection | Contact/Air Discharge: 6kV/8kV |
| Surge Protection | MGMT Port: 4kV / Service Port: 10kV / Power Port: 6kV Common Mode and Differential Mode |
| PHYSICAL | |
|---|---|
| Dimensions | 442 × 420 × 43.6mm |
| Weight | 4.3kg, Excluding Power Modules |
| Installation | 19-inch Rack Mount, 1U |
Note: The Ruijie RG-CS85-24SFP/8GT8XS-D is a Layer 3 managed core/aggregation switch designed for large-sized campus networks and as a core switch for small and medium-sized enterprise networks. It provides 24 × 1GE SFP ports, including 8 combo ports supporting 1GE SFP or 10/100/1000BASE-T RJ45, plus 8 × 1GE/10GE SFP+ uplink ports. It offers 688Gbps switching capacity, 512Mpps forwarding performance, a 64K MAC address table, Layer 3 routing, VSU virtualization, redundant hot-swappable power supplies and an expansion slot.
Important: The RG-CS85-24SFP/8GT8XS-D is a Layer 3 Managed Core/Aggregation Switch and does not provide PoE. Ports 1–16 support 100Mbps/1Gbps SFP, while ports 17–24 support 1Gbps SFP. Ports 1–8 are combo interfaces that can operate as either SFP or 10/100/1000Mbps RJ45. The 8 SFP+ uplink ports support 1Gbps/10Gbps. At least one RG-PA150IB-F 150W power module must be purchased separately.
