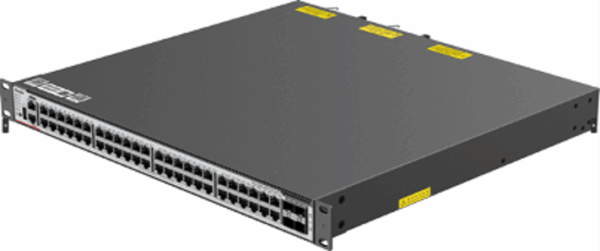

Specifications Ruijie Networks RG-CS85-48GT4XS-HPD
| Features | Description |
|---|---|
| Device Type | 48-Port Layer 3 Managed Gigabit PoE+ Core/Aggregation Switch |
| Network Ports | 48 × 10/100/1000BASE-T RJ45 Ports with PoE/PoE+ |
| Uplink Ports | 4 × 1Gbps/10Gbps SFP+ Ports |
| Switching Capacity | 656 Gbps |
| Packet Forwarding Rate | 488 Mpps |
| MAC Address Table | 64K |
| PoE Standard | IEEE 802.3af/at PoE/PoE+ |
| Maximum PoE Output | Up to 1,440W |
| VSU | Supported, Up to 4 Members |
| Management | Ruijie Cloud, CLI, Web, Telnet, SNMP, RMON and Syslog |
| Power Supply | 2 × Hot-Swappable Modular Power Supply Slots |
| Design | 1U Rack-Mountable with 2 × Modular Fan Modules |
| INTERFACE | |
|---|---|
| Network Ports | 48 × 10/100/1000BASE-T RJ45 Ports |
| SFP+ Uplink Ports | 4 × 1GE/10GE SFP+ Ports |
| Management Port | 1 × RJ45 MGMT Port |
| Console Port | 1 × RJ45 Console Port |
| USB | 1 × USB 3.0 Port |
| Expansion Slot | 1 × Expansion Module Slot |
| Power Module Slots | 2 × Modular Power Supply Slots |
| Fan Module Slots | 2 × Modular Fan Slots |
| SWITCHING PERFORMANCE | |
|---|---|
| Switching Capacity | 656 Gbps |
| Packet Forwarding Rate | 488 Mpps |
| MAC Address Table | 64,000 |
| ARP Table | 24,000 |
| IPv4 Unicast Routes | 24,000 |
| IPv4 Multicast Routes | 4,000 |
| IPv6 Unicast Routes | 14,000 |
| IPv6 Multicast Routes | 2,000 |
| ACL Entries | Ingress: 7,000 / Egress: 1,500 |
| Switch Buffer | 4 MB |
| VSU Members | Up to 4 |
| POE | |
|---|---|
| PoE Standard | IEEE 802.3af / IEEE 802.3at |
| PoE Ports | Ports 1–48 |
| Maximum PoE Output per Port | 30W |
| IEEE 802.3af Output | Up to 15.4W per Port |
| IEEE 802.3at Output | Up to 30W per Port |
| PoE Power Pairs | Mode A (1-2, 3-6 Pairs) |
| Maximum PoE Output | Up to 1,440W, Depending on Installed Power Modules |
| PoE Budget with 1 × RG-PA600I-P-F | 370W |
| PoE Budget with 2 × RG-PA600I-P-F | 740W |
| PoE Budget with 1 × RG-PA1000I-P-F | 740W |
| PoE Budget with 2 × RG-PA1000I-P-F | 1,480W Power Supply Capacity, Limited to 1,440W Maximum PoE Output |
| SMART FEATURES | |
|---|---|
| Ruijie Cloud | Cloud-Based Network Management, Monitoring and Configuration |
| VSU | Virtual Switching Unit, Supports Up to 4 Members |
| Zero Touch Provisioning | Supported |
| Hardware Boot Redundancy | Dual Flash Chips Provide 1+1 Boot Program Redundancy |
| Hot-Swappable Power | Supported |
| Hot-Swappable Fan | Supported |
| CPP | CPU Protection Policy Helps Protect the CPU Against Excessive Traffic |
| NFPP | Network Foundation Protection Policy Helps Protect the Network from Abnormal or Malicious Traffic |
| Network Monitoring | Real-Time Device and Network Monitoring |
| Configuration Backup | Supported via USB |
| LAYER 3 FEATURES | |
|---|---|
| Static Routing | Supported |
| RIP | RIP / RIPng |
| OSPF | OSPFv2 / OSPFv3 |
| IS-IS | IS-ISv4 / IS-ISv6 |
| BGP | BGP4 / BGP4+ |
| IPv4 / IPv6 | Dual-Stack Supported |
| VRF | IPv4 / IPv6 VRF |
| Policy-Based Routing | IPv4 / IPv6 PBR |
| Multicast Routing | IGMP / PIM |
| SWITCHING FEATURES | |
|---|---|
| VLAN | IEEE 802.1Q, Up to 4K VLANs |
| Voice VLAN | Supported |
| Super VLAN | Supported |
| Private VLAN | Supported |
| MAC VLAN | Supported |
| Port-Based VLAN | Supported |
| Protocol-Based VLAN | Supported |
| IP-Subnet VLAN | Supported |
| GVRP | Supported |
| QinQ | Basic QinQ / Flexible QinQ |
| STP | STP / RSTP / MSTP |
| ERPS | IEEE G.8032 |
| Link Aggregation | LACP (IEEE 802.3ad) |
| LLDP | LLDP / LLDP-MED |
| Jumbo Frame | Up to 9,216 Bytes |
| NETWORK MANAGEMENT | |
|---|---|
| Management Methods | Ruijie Cloud, Web, CLI, Telnet, SNMP, RMON and Syslog |
| SNMP | SNMP v1 / v2c / v3 |
| DHCP | DHCP Client / Server / Relay / Snooping |
| IPv6 DHCP | DHCPv6 Client / Relay / Snooping |
| DNS | Supported |
| Configuration Backup | Supported via USB |
| HARDWARE | |
|---|---|
| CPU | Dual-Core CPU, 1.2GHz per Core |
| Memory | 2GB |
| Flash Memory | 4GB |
| BootROM | 16MB, 2 Flash Chips for 1+1 Boot Redundancy |
| Switch Buffer | 4MB |
| Expansion Slot | 1 × Expansion Module Slot |
| Rack Height | 1U |
| EXPANSION | |
|---|---|
| Expansion Module | CM85-4XS2CQ |
| Expansion Interfaces | 4 × 1GE/10GE SFP+ Ports + 2 × 40GE/100GE QSFP28 Ports |
| POWER | |
|---|---|
| Power Supply | 2 × Pluggable Modular Power Supply Slots |
| Supported Power Modules | RG-PA600I-P-F / RG-PA1000I-P-F |
| Power Redundancy | 1+1 Redundancy |
| Power Module Hot Swap | Supported |
| Maximum Power Consumption | 120W Without PoE / 1,600W at Full PoE Load |
| Maximum Power Output per Module | 600W with RG-PA600I-P-F / Up to 1,000W with RG-PA1000I-P-F |
| ENVIRONMENT & RELIABILITY | |
|---|---|
| Operating Temperature | 0°C to 45°C |
| Storage Temperature | -40°C to 70°C |
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Storage Humidity | 5% to 95% RH, Non-Condensing |
| Operating Altitude | 0m to 5,000m |
| Fan | 2 × Modular Fan Modules, Pre-Installed |
| PHYSICAL | |
|---|---|
| Dimensions | 442 × 420 × 43.6 mm |
| Weight | 5.7kg, Excluding Power Modules |
| Installation | 19-inch Rack Mount, 1U |
Note: The Ruijie RG-CS85-48GT4XS-HPD is a 48-port Layer 3 managed Gigabit PoE+ core/aggregation switch designed for large-sized campus networks and as a core switch for small and medium-sized enterprise networks. It provides 48 × 10/100/1000BASE-T RJ45 ports with PoE/PoE+ support and 4 × 1GE/10GE SFP+ uplink ports. It offers 656Gbps switching capacity, 488Mpps packet forwarding performance, a 64K MAC address table, Layer 3 routing, VSU virtualization and redundant hot-swappable power modules.
Important: The RG-CS85-48GT4XS-HPD is a Layer 3 Managed PoE+ Switch. All 48 RJ45 ports support 10/100/1000Mbps and IEEE 802.3af/at PoE/PoE+, with up to 30W per port. The 4 SFP+ ports support 1Gbps/10Gbps uplinks. The switch uses 2 modular power-supply slots and supports RG-PA600I-P-F or RG-PA1000I-P-F power modules. The maximum PoE output is 1,440W, depending on the installed power supplies.
