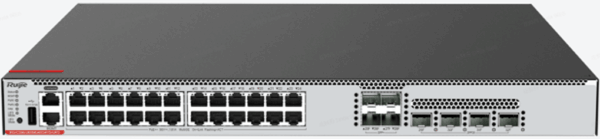

Specifications Ruijie RG-CS86-24XMG4XS4VS-UPD
| Features | Description |
|---|---|
| Device Type | 24-Port Multi-Gigabit Layer 3 Managed Switch with PoE++ |
| Network Ports | 24 × 100Mbps/1Gbps/2.5Gbps/5Gbps/10Gbps RJ45 Ports |
| Uplink Ports | 4 × 1Gbps/10Gbps SFP+ Ports + 4 × 10Gbps/25Gbps SFP28 Ports |
| PoE | IEEE 802.3af/at/bt PoE/PoE+/PoE++, Up to 90W per Port |
| Switching Capacity | 760 Gbps |
| Packet Forwarding Rate | 565 Mpps |
| MAC Address Table | 32K |
| VSU | Supported, Up to 2 Members |
| Management | Ruijie Cloud, CLI, Web, Telnet, SNMP and NETCONF |
| Power Supply | 2 × Hot-Swappable Modular Power Supply Slots |
| Design | 1U Rack-Mountable, Modular Fan Design |
| INTERFACE | |
|---|---|
| Multi-GE Ports | 24 × 100Mbps/1Gbps/2.5Gbps/5Gbps/10Gbps RJ45 Ports |
| SFP+ Ports | 4 × 1Gbps/10Gbps SFP+ Ports |
| SFP28 Ports | 4 × 10Gbps/25Gbps SFP28 Ports |
| Management Port | 1 × RJ45 MGMT Port |
| Console Port | 1 × RJ45 Console Port |
| USB | 1 × USB Port |
| SWITCHING PERFORMANCE | |
|---|---|
| Switching Capacity | 760 Gbps |
| Packet Forwarding Rate | 565 Mpps |
| MAC Address Table | 32,768 |
| ARP Table | 16,000 |
| IPv4 Unicast Routes | 16,000 |
| IPv4 Multicast Routes | 4,000 |
| IPv6 Unicast Routes | 16,000 |
| IPv6 Multicast Routes | 2,000 |
| ACL Entries | Ingress: 2,500 / Egress: 1,000 |
| Switch Buffer | 4 MB |
| SMART FEATURES | |
|---|---|
| Ruijie Cloud | Cloud-Based Network Management, Monitoring and Configuration |
| VSU | Virtual Switching Unit, Supports Up to 2 Members |
| Zero Touch Provisioning | Supported |
| VLAN Management | Cloud-Based VLAN Configuration and Visualization |
| Network Monitoring | Real-Time Device Health, Traffic and Connectivity Monitoring |
| Auto Configuration | Supported |
| Intelligent Power Saving | Supported |
| Hardware Protection | Hardware-Level Boot Redundancy and Optical Port Fault Isolation |
| Hot-Swappable Power | Supported |
| Hot-Swappable Fan | Supported |
| POE | |
|---|---|
| PoE Standard | IEEE 802.3af / 802.3at / 802.3bt |
| PoE Ports | Ports 1–24 |
| PoE Type | PoE / PoE+ / PoE++ / HPoE |
| Maximum PoE Output per Port | 90W |
| PoE Cable Pairs | Four Pairs |
| Maximum Full PoE Load | Up to 1,650W, Depending on Installed Power Modules |
| NETWORK MANAGEMENT | |
|---|---|
| Management Methods | Ruijie Cloud, Web, CLI, Telnet, SNMP, NETCONF and CWMP (TR-069) |
| SNMP | SNMP v1/v2c/v3 |
| RMON | Supported |
| Syslog | Supported |
| sFlow | Supported |
| Configuration Backup | Supported via USB |
| LAYER 3 FEATURES | |
|---|---|
| Static Routing | Supported |
| RIP | Supported |
| OSPF | Supported |
| BGP | Supported |
| IS-IS | Supported |
| IPv4 / IPv6 | Supported |
| PBR | IPv4 / IPv6 Policy-Based Routing |
| Multicast | IGMP / PIM |
| ACL | Supported |
| POWER | |
|---|---|
| Power Supply | 2 × Pluggable Modular Power Supply Slots |
| Power Module | RG-PA600I-P-F / RG-PA1000I-P-F |
| Power Redundancy | 1+1 Redundancy |
| Power Module Hot Swap | Supported |
| RG-PA600I-P-F Output | 600W |
| RG-PA1000I-P-F Output | Up to 1000W |
| Maximum Power Consumption | Less than 120W Without PoE / Up to 1,650W at Full PoE Load |
| HARDWARE | |
|---|---|
| CPU | ARM Processor, 1.25GHz |
| Memory | 1GB SDRAM |
| Flash Memory | 1GB |
| BootROM | 16MB |
| Data Packet Buffer | 4MB |
| Fan Modules | 3 × Modular Fan Slots, 3 Fan Modules Equipped by Default |
| Rack Height | 1U |
| ENVIRONMENT & RELIABILITY | |
|---|---|
| Operating Temperature | 0°C to 45°C |
| Storage Temperature | -40°C to 70°C |
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Storage Humidity | 5% to 95% RH, Non-Condensing |
| Surge Protection | 6kV |
| Temperature Monitoring | Temperature Alarm |
| Airflow | Front/Left-to-Rear Airflow |
| PHYSICAL | |
|---|---|
| Dimensions | 442 × 220 × 43.6 mm |
| Weight | 6.11kg, Including Fan Modules and Excluding Power Modules |
| Installation | 19-inch Rack Mount, 1U |
Note: The Ruijie RG-CS86-24XMG4XS4VS-UPD is a 24-port Multi-Gigabit Layer 3 managed switch designed for high-bandwidth enterprise and campus networks. It provides 24 × 100Mbps/1Gbps/2.5Gbps/5Gbps/10Gbps RJ45 ports, 4 × 1Gbps/10Gbps SFP+ ports and 4 × 10Gbps/25Gbps SFP28 ports. All 24 RJ45 ports support PoE/PoE+/PoE++ with up to 90W per port, while the switch supports a maximum full PoE load of up to 1,650W depending on the installed power modules. It features 760Gbps switching capacity, 565Mpps forwarding performance, Layer 3 routing, VSU virtualization, Ruijie Cloud management and redundant hot-swappable power and fan modules.
Important: The RG-CS86-24XMG4XS4VS-UPD is a managed Layer 3 Multi-Gigabit switch, not an unmanaged switch. It provides 24 × 100Mbps/1Gbps/2.5Gbps/5Gbps/10Gbps RJ45 ports, 4 × 10Gbps SFP+ ports and 4 × 25Gbps SFP28 ports. All 24 RJ45 ports support IEEE 802.3af/at/bt PoE/PoE+/PoE++ with up to 90W per port. The switch requires at least one compatible modular power supply and supports 1+1 power redundancy and hot-swappable power modules.
