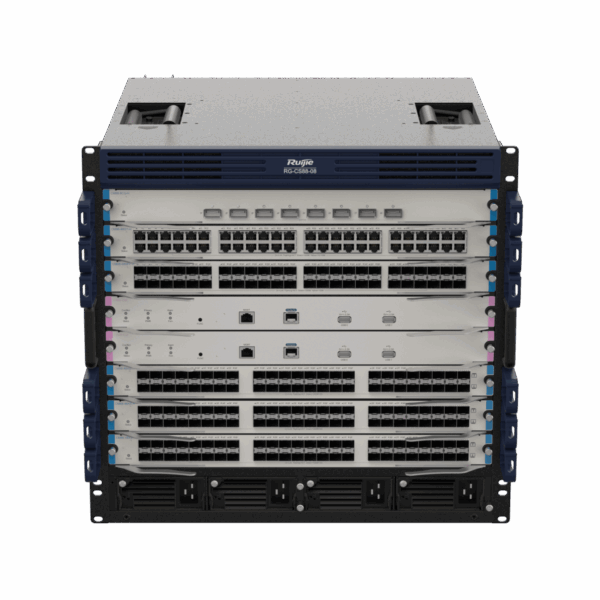

Specifications Ruijie RG-CS88-08
| Features | Description |
|---|---|
| Product Type | Cloud-Managed High-Performance Modular Core Switch |
| Series | RG-CS88 Series |
| Device Size | 10 RU |
| Supervisor Module Slots | 2 |
| Line Card Slots | 6 |
| Power Module Slots | 4 |
| Switching Capacity | 9.6Tbps |
| Forwarding Rate | 7,200Mpps |
| Management | Web / CLI / SNMP / Ruijie Cloud |
| HARDWARE | |
|---|---|
| Supervisor Module Slots | 2 |
| Supervisor Module | CM88-CM |
| Line Card Slots | 6 |
| Switch Fabric | Integrated with Supervisor Module |
| Power Module Slots | 4 |
| Fan Module Slots | 2 |
| Management Port | 1 × RJ45 Management Port via CM88-CM |
| Console Port | 1 × RJ45 Console Port via CM88-CM |
| USB | 2 × USB 2.0 via CM88-CM |
| Line Card Support | CM88-48GT-H / CM88-48SFP-H / CM88-48XS-H / CM88-8CQ-H |
| LINE CARD OPTIONS | |
|---|---|
| CM88-48GT-H | 48 × 10/100/1000BASE-T Ethernet Ports |
| CM88-48SFP-H | 48 × 1GE SFP Optical Ports |
| CM88-48XS-H | 48 × 1GE/10GE SFP+ Optical Ports |
| CM88-8CQ-H | 8 × 40GE/100GE QSFP28 Optical Ports |
| Maximum 10GE Port Density | Up to 288 × 10GE Ports |
| PERFORMANCE | |
|---|---|
| Switching Capacity | 9.6Tbps |
| Forwarding Rate | 7,200Mpps |
| Switch Buffer | Up to 32MB depending on Line Card |
| Jumbo Frame | Up to 9,216 bytes |
| MAC Address Table | Up to 96K global MAC addresses depending on Line Card |
| Static MAC Address | Up to 40K depending on Line Card |
| ARP Table | Up to 50K depending on Line Card |
| IPv4 Unicast Routes | Up to 134K depending on Line Card |
| IPv6 Unicast Routes | Up to 50K depending on Line Card |
| LAYER 2 FEATURES | |
|---|---|
| VLAN | IEEE 802.1Q, up to 4,094 VLANs |
| VLAN Types | MAC VLAN / Port-Based VLAN / Protocol-Based VLAN / IP-Subnet VLAN |
| Super VLAN | Supported |
| Private VLAN | Supported |
| Link Aggregation | IEEE 802.3ad LACP |
| STP | IEEE 802.1D STP |
| RSTP | IEEE 802.1w RSTP |
| MSTP | IEEE 802.1s MSTP |
| ERPS | ITU-T G.8032 |
| QinQ | Basic QinQ / Flexible QinQ |
| GVRP | Supported |
| LLDP | Supported |
| LLDP-MED | Supported |
| IGMP Snooping | Supported |
| MLD Snooping | Supported |
| LAYER 3 FEATURES | |
|---|---|
| Static Routing | Supported |
| RIP | RIPv1 / RIPv2 |
| OSPF | OSPFv2 |
| OSPFv3 | Supported |
| BGP | BGP4 / BGP4+ |
| IS-IS | Supported |
| VRRP | Supported |
| BFD | Supported |
| ECMP | Supported |
| Policy-Based Routing | Supported |
| IPv4 Multicast | IGMP / PIM-SM / PIM-SSM / PIM-DM |
| IPv6 Multicast | MLD / PIM-SMv6 |
| MPLS L3VPN | Supported |
| MPLS 6VPE | Supported |
| VIRTUALIZATION & HIGH AVAILABILITY | |
|---|---|
| VSU | Supported, up to 2 members |
| Supervisor Redundancy | 1+1 |
| Power Redundancy | N+N |
| Fan Redundancy | 1+1 |
| Hot-Swappable Modules | Supported |
| VRRP | Supported |
| BFD | Supported |
| GR | Supported |
| QOS & TRAFFIC MANAGEMENT | |
|---|---|
| QoS Classification | 802.1p / DSCP / ToS |
| Queue Scheduling | SP / WRR / DRR / WFQ |
| Traffic Shaping | Supported |
| Rate Limiting | Ingress / Egress |
| Congestion Avoidance | WRED / Tail Drop |
| ACL-Based QoS | Supported |
| SECURITY | |
|---|---|
| ACL | Standard / Extended ACL |
| IPv6 ACL | Supported |
| CPU Protection | CPP |
| Network Foundation Protection | NFPP |
| DHCP Snooping | Supported |
| ARP Protection | Supported |
| IP Source Guard | Supported |
| 802.1X | Supported |
| RADIUS | Supported |
| TACACS+ | Supported |
| uRPF | Supported |
| MANAGEMENT | |
|---|---|
| Cloud Management | Ruijie Cloud |
| Web Management | Supported |
| CLI | Console / Telnet / SSH |
| SNMP | SNMP v1/v2c/v3 |
| RMON | Supported |
| NETCONF | Supported |
| Telemetry | Supported |
| Syslog | Supported |
| SPAN | Supported |
| Network Diagnosis | Supported |
| POWER & GENERAL | |
|---|---|
| Power Module Slots | 4 |
| Supported Power Module | RG-PA600I-F / RG-PA1600I-F |
| RG-PA600I-F Output | 600W |
| RG-PA1600I-F Output | 1,200W at 90–180V AC / 1,600W at 180–264V AC |
| Power Redundancy | N+N |
| Maximum Power Consumption | Depends on installed modules |
| Dimensions | 442 × 465 × 441.7mm |
| Installation | 19-inch Rack Mounting, 10 RU |
| Net Weight | 35.6kg, empty chassis with fan modules |
| Operating Temperature | 0°C to 45°C |
| Storage Temperature | -40°C to 70°C |
| Operating Humidity | 10%–90% RH, Non-Condensing |
| Storage Humidity | 5%–95% RH, Non-Condensing |
| MTBF | >200,000 Hours |
Note: The Ruijie RG-CS88-08 is a 10 RU cloud-managed high-performance modular core switch designed for data centers, MANs, campus networks and integrated data center/campus environments. It provides 2 supervisor module slots, 6 line card slots and 4 power module slots, with a switching capacity of 9.6Tbps and a forwarding rate of 7,200Mpps. The chassis supports high-density 1GE, 10GE, 40GE and 100GE line cards, with up to 288 × 10GE ports when equipped with CM88-48XS-H line cards.
Important: The Ruijie RG-CS88-08 is a 10 RU Modular Core Switch and does not include fixed Ethernet service ports in the chassis. It requires a CM88-CM Supervisor Module and compatible Line Cards. Supported Line Cards include CM88-48GT-H with 48 × Gigabit RJ45 ports, CM88-48SFP-H with 48 × 1GE SFP ports, CM88-48XS-H with 48 × 1GE/10GE SFP+ ports and CM88-8CQ-H with 8 × 40GE/100GE QSFP28 ports. The chassis supports 9.6Tbps switching capacity, 7,200Mpps forwarding rate, 1+1 supervisor redundancy and N+N power redundancy
