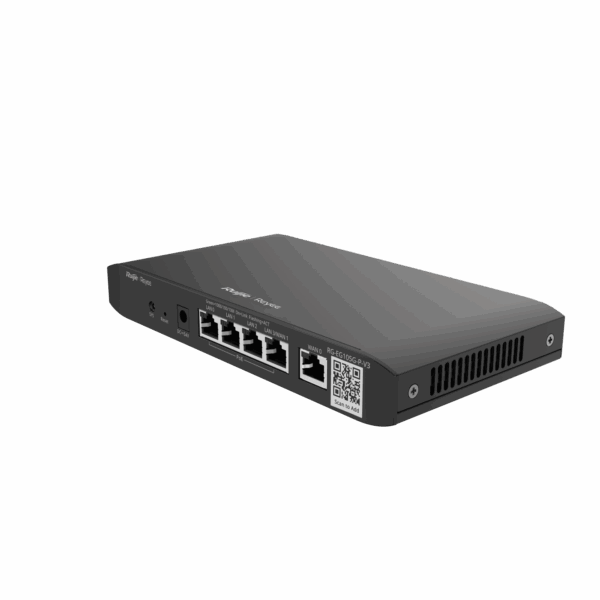

Specifications Reyee RG-EG105G-P-V3
| Features | Description |
|---|---|
| Product Type | Cloud Managed PoE Router |
| Ethernet Ports | 5 × 10/100/1000Mbps |
| WAN Ports | 1 × Gigabit WAN + 1 × Switchable WAN/LAN |
| LAN Ports | 3 × Gigabit LAN |
| PoE Ports | 4 × Gigabit PoE+ Ports |
| PoE Budget | 54W |
| Throughput | 600Mbps Normal Mode / 1Gbps Turbo Mode |
| Recommended Clients | Up to 100 Concurrent Clients |
| Management | Reyee Cloud / Ruijie Cloud |
| HARDWARE | |
|---|---|
| Ethernet Ports | 5 × 10/100/1000BASE-T |
| Fixed WAN | 1 × Gigabit Port |
| Fixed LAN | 3 × Gigabit Ports |
| Switchable WAN/LAN | 1 × Gigabit Port |
| PoE+ Ports | 4 Ports |
| CPU | Dual-Core, 880MHz per Core |
| RAM | 128MB |
| Flash Memory | 32MB |
| POE | |
|---|---|
| PoE Standard | IEEE 802.3af/at |
| PoE Ports | 4 × Gigabit PoE+ Ports |
| PoE Budget | 54W |
| PoE Application | IP Cameras, Access Points, VoIP Phones and Other PoE Devices |
| NETWORK & ROUTING | |
|---|---|
| Multi-WAN | Supported |
| WAN Load Balancing | Supported |
| WAN Failover | Supported |
| Bandwidth Management | Application and User-Based Bandwidth Management |
| DHCP | DHCP Server / Client |
| NAT | Port Forwarding, DMZ and UPnP |
| Captive Portal | Supported |
| Application Control | Supported |
| VPN | |
|---|---|
| IPSec VPN | Supported |
| OpenVPN | Supported |
| L2TP | Supported |
| PPTP | Supported |
| VPN Application | Site-to-Site and Remote Access VPN |
| MANAGEMENT | |
|---|---|
| Cloud Management | Reyee Cloud / Ruijie Cloud |
| Centralized Management | Supported |
| Remote Monitoring | Supported |
| Remote Maintenance | Supported |
| Self-Organizing Network | Supported |
| Cloud Portal Authentication | Supported |
| PERFORMANCE | |
|---|---|
| Normal Mode Throughput | 600Mbps |
| Turbo Mode Throughput | 1Gbps |
| Recommended Concurrent Clients | Up to 100 |
| GENERAL | |
|---|---|
| Power Supply | DC Power |
| PoE Budget | 54W |
| Dimensions | 206.5 × 108.5 × 28mm |
| Weight | 0.406kg |
| Mounting | Desktop |
| Operating Temperature | 0°C to 40°C |
Note: The Reyee RG-EG105G-P-V3 is a cloud-managed PoE router featuring 5 Gigabit Ethernet ports, 4 PoE+ output ports with a 54W total PoE budget, Multi-WAN load balancing, VPN, application control and cloud-based centralized management. It supports up to 100 concurrent clients and provides up to 1Gbps throughput in Turbo Mode.
Important: The RG-EG105G-P-V3 combines routing and PoE switching in one device. It has 5 × Gigabit ports, including 1 fixed WAN, 3 fixed LAN and 1 switchable WAN/LAN port. Four of the ports provide IEEE 802.3af/at PoE+, with a total PoE budget of 54W.
