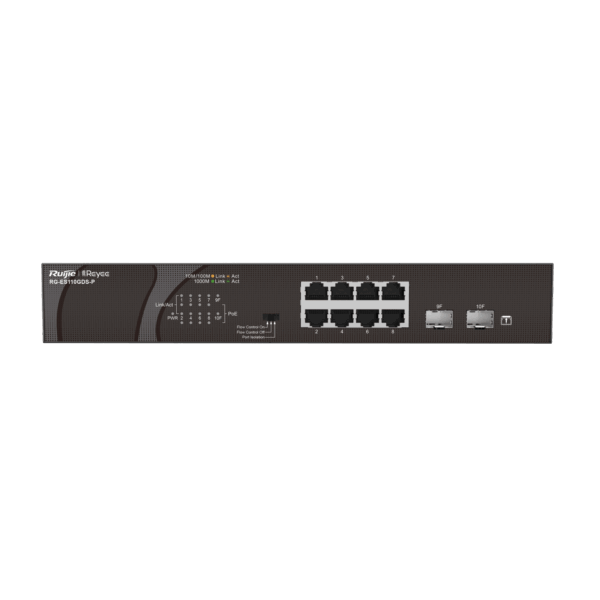

Specifications Ruijie Reyee RG-ES110GDS-P
| Features | Description |
|---|---|
| Product Type | Layer 2 Unmanaged PoE+ Switch |
| Series | RG-ES100 Series |
| Total Ports | 10 Ports |
| PoE+ Ports | 8 × 10/100/1000BASE-T PoE+ |
| SFP Uplink Ports | 2 × 1GE SFP |
| PoE Standard | IEEE 802.3af/at |
| PoE Power Budget | 120W |
| Maximum PoE Output per Port | 30W |
| Switching Capacity | 20Gbps |
| Forwarding Rate | 14.80Mpps |
| Management | Unmanaged / Visible on Ruijie Cloud |
| HARDWARE | |
|---|---|
| PoE Downlink Ports | 8 × 10/100/1000BASE-T PoE+ |
| SFP Uplink Ports | 2 × 1GE SFP |
| PoE Standard | IEEE 802.3af / IEEE 802.3at |
| Maximum PoE Output per Port | 30W |
| Total PoE Power Budget | 120W |
| MAC Address Table | 4K |
| Switch Buffer | 2Mbits |
| Fan | Fanless |
| PERFORMANCE | |
|---|---|
| Switching Capacity | 20Gbps |
| Forwarding Rate | 14.80Mpps |
| MAC Address Capacity | 4K |
| Packet Buffer | 2Mbits |
| PoE Power Budget | 120W |
| NETWORK FEATURES | |
|---|---|
| Switching Mode | Store and Forward |
| Flow Control | Supported |
| Auto MDI/MDIX | Supported |
| Port Isolation | Supported |
| Plug & Play | Supported |
| Self-Negotiation | Supported |
| Half/Full Duplex | Supported |
| POE FEATURES | |
|---|---|
| PoE Standard | IEEE 802.3af / IEEE 802.3at |
| PoE Budget | 120W |
| PoE Ports | 8 |
| Maximum Power per Port | 30W |
| PoE Power Pins | 1–2 (+), 3–6 (-) |
| PoE Device Detection | Automatic |
| Intelligent PoE Management | Supported |
| Non-PoE Device Protection | Supported |
| CCTV FEATURES | |
|---|---|
| IP Camera Support | Supported |
| PoE Camera Power | Supported |
| Port Isolation | Supported |
| Flow Control | Supported |
| Long-Distance Transmission | Supported according to network conditions |
| MANAGEMENT | |
|---|---|
| Switch Management | Unmanaged |
| Cloud Visibility | Visible on Ruijie Cloud |
| Cloud Configuration | Not Supported |
| Web Management | Not Supported |
| SNMP | Not Supported |
| Remote Management | Not Supported |
| PROTECTION | |
|---|---|
| Port Surge Protection | Common Mode 6kV |
| PoE Protection | Automatic PoE Device Detection |
| Flow Control Protection | Supported |
| POWER & GENERAL | |
|---|---|
| Power Supply | Internal AC Power Supply |
| Input Voltage | 100–240VAC |
| Input Frequency | 50/60Hz |
| Maximum Power Consumption | 150W |
| Installation | Desktop / Wall Mounting |
| Dimensions | 280 × 126 × 44mm |
| Operating Temperature | 0°C to 45°C |
| Operating Humidity | 10%–90% RH, Non-Condensing |
| Storage Temperature | -40°C to 70°C |
| MTBF | >200,000 Hours |
| Warranty | 3 Years |
Note: The Ruijie Reyee RG-ES110GDS-P is a 10-port Layer 2 Unmanaged Gigabit PoE+ Switch featuring 8 × 10/100/1000BASE-T PoE+ ports and 2 × 1GE SFP uplink ports. It provides a 120W PoE power budget with up to 30W per port, 20Gbps switching capacity and 14.80Mpps forwarding performance. The switch supports IEEE 802.3af/at, flow control, port isolation, automatic PoE device detection and intelligent PoE management. It can also be visible on Ruijie Cloud when at least one managed switch is deployed on the same network.
Important: The Ruijie Reyee RG-ES110GDS-P is a 10-Port Gigabit Unmanaged PoE+ Switch featuring 8 × Gigabit PoE+ ports and 2 × 1GE SFP uplink ports. It provides a total 120W PoE power budget, up to 30W per port, 20Gbps switching capacity and 14.80Mpps forwarding performance. The switch supports IEEE 802.3af/at, Flow Control, Port Isolation and Intelligent PoE Management. It is a Plug & Play unmanaged switch and can be visible on Ruijie Cloud when used with at least one managed switch on the same network.
