RG-ES110GS-P-L

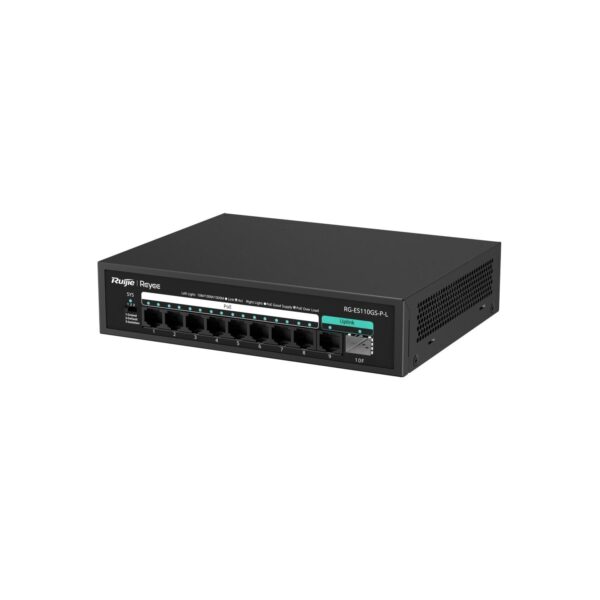

Ruijie Reyee RG-ES110GS-P-L

10-Port Gigabit Unmanaged PoE Switch

  • 8×Gigabit PoE+ ports with 1×Gigabit RJ45 and 1×Gigabit SFP uplink
  • Supports IEEE 802.3af/at with 120W PoE budget
  • Plug & Play with no configuration required
  • Supports PoE Watchdog, Port Isolation and 250m Extend Mode
  • Visible on Ruijie Cloud for network monitoring
  • Fanless metal design ideal for CCTV and business networks
หมวดหมู่: , , ป้ายกำกับ: ,

Specifications Ruijie Reyee RG-ES110GS-P-L

Features Description
Device Type 10-Port Gigabit Unmanaged PoE Switch
Ports 8 × 10/100/1000Mbps PoE+ RJ45 Ports, 1 × Gigabit RJ45 Uplink, 1 × Gigabit SFP Uplink
PoE Standard IEEE 802.3af / IEEE 802.3at
PoE Budget 120W Total PoE Budget
Switching Capacity 20Gbps
Forwarding Rate 14.8Mpps
MAC Address Table 4K Entries
Management Unmanaged (Plug & Play)
Surge Protection 4kV Port Surge Protection
Application CCTV, Office, Retail Store, Café and Small Business Networks
Switch Type Layer 2 Unmanaged PoE Switch
Network Ports 8 × Gigabit PoE+ Ports, 1 × Gigabit RJ45 Uplink, 1 × Gigabit SFP Uplink
Transmission Mode Store-and-Forward
PoE Output Up to 30W per PoE Port
DIP Switch Modes Default, Extend Mode, Port Isolation
Housing Metal Enclosure
Cooling Fanless Design
SMART FEATURES
Plug & Play No Configuration Required for Quick Deployment
PoE Watchdog Automatically Detects and Restarts Unresponsive PoE Devices
Extend Mode Supports PoE Transmission Distance up to 250m at 10Mbps
Port Isolation Improves Security for CCTV and Surveillance Networks
Cloud Visibility Supports Device Visibility via Ruijie Cloud*
GENERAL
Power Supply 100–240V AC, 50/60Hz
Maximum Power Consumption 120W (Full PoE Load), <10W (Without PoE)
Operating Temperature 0°C to 45°C
Dimensions 190 × 150 × 43mm
Warranty 3 Years

Note: *Ruijie Cloud visibility for unmanaged switches requires at least one compatible Ruijie managed switch on the same network. Product specifications and software features are subject to change without prior notice.

Important: The Ruijie Reyee RG-ES110GS-P-L is a 10-port Gigabit unmanaged PoE switch featuring 8 PoE+ ports, 1 Gigabit RJ45 uplink, 1 Gigabit SFP uplink, a 120W PoE budget, PoE Watchdog, Extend Mode, Port Isolation, and Ruijie Cloud visibility. It is ideal for CCTV, office, retail, and small business network deployments.

จัดจำหน่าย By บริษัทโฟกัส ซิสเต็ม แอนด์ ดีไซน์ ช่างติดเเละซ้อมกล้องวงจรปิด พัทยา ชลบุรี

Datasheet
