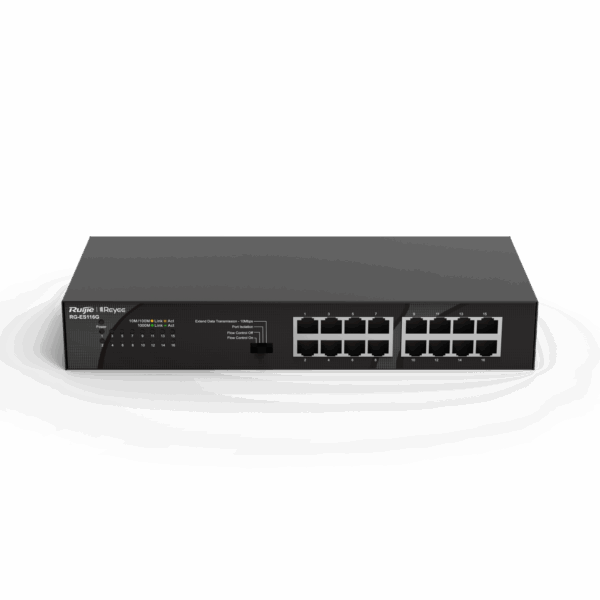

Specifications Ruijie Reyee RG-ES116G
| Features | Description |
|---|---|
| Product Type | Layer 2 Unmanaged Non-PoE Switch |
| Series | RG-ES100 Series |
| Total Ports | 16 × 10/100/1000BASE-T |
| PoE Support | Not Supported |
| Switching Capacity | 32Gbps |
| Forwarding Rate | 23.81Mpps |
| MAC Address Table | 8K |
| Management | Unmanaged / Visible on Ruijie Cloud |
| HARDWARE | |
|---|---|
| RJ45 Ports | 16 × 10/100/1000BASE-T |
| Port Speed | 10/100/1000Mbps Auto-Negotiation |
| PoE | Not Supported |
| MAC Address Table | 8K |
| Switch Buffer | 4.1Mbit |
| Fan | Fanless |
| PERFORMANCE | |
|---|---|
| Switching Capacity | 32Gbps |
| Forwarding Rate | 23.81Mpps |
| MAC Address Capacity | 8K |
| Packet Buffer | 4.1Mbit |
| PoE Power Budget | Not Applicable |
| NETWORK FEATURES | |
|---|---|
| Operating Modes | Standard / Flow Control Off / Port Isolation / Extend Data Transmission |
| Flow Control | Supported |
| Port Isolation | Supported |
| Auto MDI/MDIX | Supported |
| Auto-Negotiation | Supported |
| Half/Full Duplex | Supported |
| Store and Forward | Supported |
| Plug & Play | Supported |
| Extend Data Transmission | Up to 250m at 10Mbps on Ports 1–8* |
| MANAGEMENT | |
|---|---|
| Switch Management | Unmanaged |
| Cloud Visibility | Visible on Ruijie Cloud |
| Cloud Configuration | Not Supported |
| Web Management | Not Supported |
| SNMP | Not Supported |
| Remote Management | Not Supported |
| PROTECTION | |
|---|---|
| Port Surge Protection | 6kV Common Mode |
| Port Isolation | Supported |
| Flow Control Protection | Supported |
| POWER & GENERAL | |
|---|---|
| Power Supply | Internal AC Power Supply |
| Input Voltage | 100–240VAC |
| Input Frequency | 50/60Hz |
| Maximum Power Consumption | 11W |
| Installation | Desktop / Wall Mounting |
| Dimensions | 280 × 126 × 44mm |
| Fan | Fanless |
| Operating Temperature | 0°C to 45°C |
| Storage Temperature | -40°C to 70°C |
| Operating Humidity | 10%–90% RH, Non-Condensing |
| Storage Humidity | 5%–95% RH, Non-Condensing |
| MTBF | >200,000 Hours |
| Warranty | 3 Years |
Note: The Ruijie Reyee RG-ES116G is a 16-port Layer 2 Unmanaged Gigabit Non-PoE Switch featuring 16 × 10/100/1000BASE-T ports. It provides 32Gbps switching capacity, 23.81Mpps forwarding performance, an 8K MAC address table and a 4.1Mbit packet buffer. The switch supports Flow Control, Port Isolation, Auto MDI/MDIX, Auto-Negotiation and Plug & Play operation. It features a fanless design and can be visible on Ruijie Cloud without direct cloud management.
Important: The Ruijie Reyee RG-ES116G is a 16-Port Gigabit Unmanaged Non-PoE Switch featuring 16 × 10/100/1000BASE-T ports. It provides 32Gbps switching capacity, 23.81Mpps forwarding performance and an 8K MAC address table. The switch supports Flow Control, Port Isolation, Auto MDI/MDIX and Extend Data Transmission. It has a fanless design, dimensions of 280 × 126 × 44mm and a 3-year warranty.
