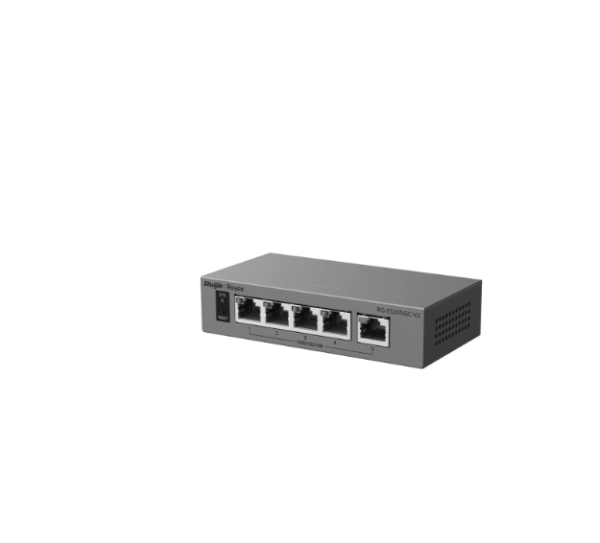

Specifications Ruijie Reyee RG-ES205GC-V2
| Features | Description |
|---|---|
| Device Type | 5-Port Gigabit Smart Cloud-Managed Non-PoE Switch |
| Ports | 5 × 10/100/1000BASE-T RJ45 Ports |
| Switching Capacity | 10Gbps |
| Forwarding Rate | 7.44Mpps |
| MAC Address Table | 2K Entries |
| Management | Smart Cloud Managed via Ruijie Cloud / Ruijie Reyee App |
| PoE Support | Non-PoE |
| Port Isolation | Supported |
| Surge Protection | 6kV Port Surge Protection |
| Cooling | Fanless Design |
| Application | CCTV, Office, Hotel, Factory, Retail Store and SMB Network |
| Switch Type | Layer 2 Smart Cloud-Managed Switch |
|---|---|
| Network Ports | 5 × Gigabit RJ45 Ports |
| Transmission Mode | Store-and-Forward |
| Management Method | Ruijie Cloud App / Ruijie Cloud Platform |
| Installation | Desktop / Wall Mount |
| Housing | Compact Plastic Enclosure |
| SMART FEATURES | |
|---|---|
| Cloud Management | Remote Monitoring, Configuration and Maintenance via Cloud |
| IP Camera Recognition | Automatically Identifies IP Cameras for CCTV Network Optimization |
| Loop Prevention | Automatic Loop Detection and Protection for Network Stability |
| VLAN Configuration | Easy VLAN Setup via Ruijie Reyee App and Cloud Platform |
| Smart Protection | One-Click Network Protection for Service Continuity |
| GENERAL | |
|---|---|
| Power Supply | 5V DC Power Adapter |
| Operating Temperature | 0°C to 40°C |
| Dimensions | 119 × 75 × 24mm |
| Warranty | 3 Years |
Note: Cloud management requires Internet access to connect with Ruijie Cloud service. Product specifications and software features are subject to change without prior notice.
Important: The Ruijie Reyee RG-ES205GC-V2 is a 5-port Gigabit smart cloud-managed non-PoE switch featuring 10Gbps switching capacity, 7.44Mpps forwarding rate, 6kV surge protection, IP camera recognition, VLAN configuration, automatic loop prevention, and fanless operation. It is suitable for CCTV, office, hotel, factory, retail, and SMB network deployments.
