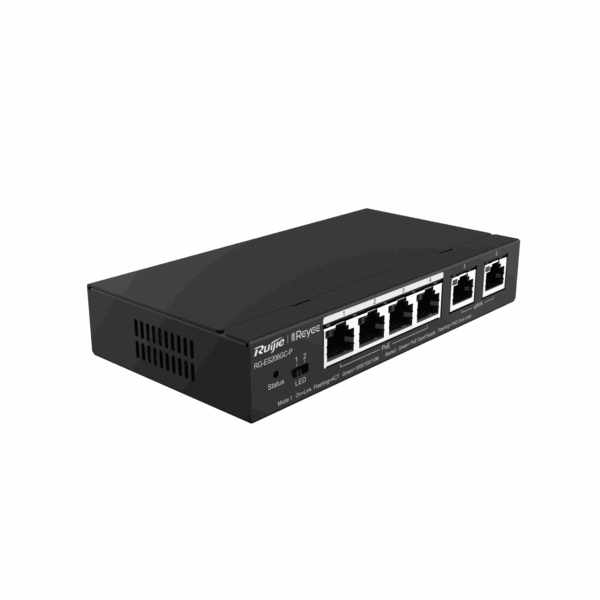

Specifications Ruijie Reyee RG-ES206GC-P
| Features | Description |
|---|---|
| Product Type | Layer 2 Smart Cloud Managed PoE+ Switch |
| Series | RG-ES200 Series |
| Total Ports | 6 × Gigabit Ethernet Ports |
| PoE+ Ports | 4 × 10/100/1000BASE-T PoE+ |
| Uplink Ports | 2 × 10/100/1000BASE-T |
| PoE Standard | IEEE 802.3af/at |
| PoE Power Budget | 54W |
| Maximum PoE Output per Port | 30W |
| Switching Capacity | 12Gbps |
| Forwarding Rate | 8.9Mpps |
| Management | Ruijie Cloud / Ruijie Reyee App / Web |
| HARDWARE | |
|---|---|
| PoE Downlink Ports | 4 × 10/100/1000BASE-T PoE+ |
| Uplink Ports | 2 × 10/100/1000BASE-T |
| PoE Standard | IEEE 802.3af / IEEE 802.3at |
| Maximum PoE Output per Port | 30W |
| Total PoE Power Budget | 54W |
| MAC Address Table | 4K |
| Maximum VLAN | 16 |
| Switch Buffer | 1Mbit |
| Fan | Fanless |
| PERFORMANCE | |
|---|---|
| Switching Capacity | 12Gbps |
| Forwarding Rate | 8.9Mpps |
| MAC Address Capacity | 4K |
| Maximum VLAN | 16 |
| Switch Buffer | 1Mbit |
| PoE Power Budget | 54W |
| NETWORK FEATURES | |
|---|---|
| VLAN | IEEE 802.1Q VLAN |
| VLAN Configuration | Supported via Ruijie Cloud App |
| Port Isolation | Supported |
| Port Mirroring | Supported |
| Loop Prevention | Automatic Loop Prevention |
| Flow Control | Supported |
| Broadcast Storm Suppression | Supported |
| Multicast Storm Suppression | Supported |
| Unknown Unicast Storm Suppression | Supported |
| Cable Detection | Supported |
| Port Speed Limiting | Supported |
| POE FEATURES | |
|---|---|
| PoE Standard | IEEE 802.3af / IEEE 802.3at |
| PoE Budget | 54W |
| PoE Ports | 4 |
| Maximum Power per Port | 30W |
| PoE Watchdog | Supported |
| PoE Device Detection | Automatic |
| Intelligent PoE Adaptive | Supported |
| Remote PoE Port Reboot | Supported |
| Non-PoE Device Protection | Supported |
| CCTV FEATURES | |
|---|---|
| IP Camera Recognition | Supported |
| NVR Recognition | Supported |
| Camera Offline Detection | Supported |
| Remote Camera Reboot | Supported |
| PoE Watchdog | Supported |
| Extended Transmission | Up to 250m* |
| Flexible Extend Mode | Supported |
| MANAGEMENT | |
|---|---|
| Cloud Management | Ruijie Cloud |
| Mobile Management | Ruijie Reyee App |
| Web Management | eWeb Management |
| Cloud Configuration | Supported |
| Remote Management | Supported |
| SON | Zero-Touch Cloud Provisioning |
| VLAN Configuration via Cloud | Supported |
| Network Monitoring | Switch Statistics Monitoring via Cloud |
| SNMP | Not Supported |
| SECURITY & PROTECTION | |
|---|---|
| Port Isolation | Supported |
| DHCP Snooping | Supported |
| Broadcast Storm Control | Supported |
| Multicast Storm Control | Supported |
| Unknown Unicast Storm Control | Supported |
| CPU Protection | Supported |
| Standard ACL | Not Supported |
| Port Surge Protection | 4kV |
| POWER & GENERAL | |
|---|---|
| Power Supply | External Power Adapter |
| Input Voltage | 100–240VAC, 50/60Hz |
| Maximum Power Consumption | 65W |
| Operating Temperature | 0°C to 40°C |
| Operating Humidity | 10%–90% RH, Non-Condensing |
| Installation | Desktop / Wall Mounting |
| Dimensions | 148 × 78 × 26mm |
| Fan | Fanless |
| MTBF | >200,000 Hours |
| Warranty | 3 Years |
Note: The Ruijie Reyee RG-ES206GC-P is a 6-port Layer 2 Smart Cloud Managed PoE+ Switch featuring 4 × 10/100/1000BASE-T PoE+ ports and 2 × Gigabit uplink ports. It provides a 54W PoE power budget, up to 30W per port, 12Gbps switching capacity and 8.9Mpps forwarding performance. The switch supports IEEE 802.3af/at, IEEE 802.1Q VLAN, port isolation, automatic loop prevention, IP camera/NVR recognition, PoE Watchdog, remote camera reboot and Ruijie Cloud management. It features a fanless and compact design suitable for SMB and CCTV networks.
Important: The Ruijie Reyee RG-ES206GC-P is a 6-Port Gigabit Smart Cloud Managed PoE+ Switch featuring 4 × Gigabit PoE+ ports and 2 × Gigabit uplink ports. It provides a total 54W PoE power budget, up to 30W per port, 12Gbps switching capacity and 8.9Mpps forwarding performance. The switch supports IEEE 802.3af/at, IEEE 802.1Q VLAN, automatic loop prevention, port isolation, IP camera recognition, PoE Watchdog and Ruijie Cloud management. It is fanless, compact at 148 × 78 × 26mm and comes with a 3-year warranty.
