| Features |
Description |
| Device Type |
6-Port Multi-Gigabit Smart Cloud Managed PoE Switch |
| Ports |
4 × 2.5G PoE+ RJ45 Ports, 1 × 2.5G RJ45 Uplink Port, 1 × 10G SFP+ Uplink Port |
| PoE Standard |
IEEE 802.3af / IEEE 802.3at |
| PoE Budget |
70W Total PoE Budget |
| Switching Capacity |
45Gbps |
| Forwarding Rate |
33.48Mpps |
| MAC Address Table |
8K Entries |
| Management |
Smart Cloud Managed via Ruijie Cloud / Reyee App / eWeb |
| Surge Protection |
6kV Port Surge Protection |
| Application |
Wi-Fi 7, CCTV, Office, Hotel, Retail Store and SMB Network |
| Switch Type |
Layer 2 Smart Cloud Managed Multi-Gigabit PoE Switch |
| Network Ports |
4 × 2.5G PoE+ RJ45 Ports, 1 × 2.5G RJ45 Uplink, 1 × 10G SFP+ Uplink |
| Transmission Mode |
Store-and-Forward |
| PoE Output |
Up to 30W per PoE Port |
| Installation |
Desktop / Wall Mount |
| Housing |
Metal Enclosure, Fanless Design |
| SMART FEATURES |
| Cloud Management |
Lifetime Free Remote Monitoring and Configuration via Ruijie Cloud |
| 10G SFP+ Uplink |
Provides High-Speed Backbone Connectivity for Enterprise Networks |
| 2.5G Multi-Gigabit Ports |
Optimized for Wi-Fi 6, Wi-Fi 7 Access Points and High-Speed Devices |
| Link Aggregation |
Supports Static Link Aggregation for Higher Bandwidth and Redundancy |
| PoE Watchdog |
Automatically Detects and Restarts Unresponsive PoE Devices |
| IP Camera Recognition |
Automatically Identifies IP Cameras for Easy CCTV Deployment |
| Automatic Loop Prevention |
Ensures Stable Network Operation by Preventing Network Loops |
| GENERAL |
| Power Supply |
54V DC External Power Adapter |
| Operating Temperature |
0°C to 40°C |
| Dimensions |
202 × 108 × 28mm |
| Warranty |
3 Years |
Note: The RG-ES206MG-P is designed for high-speed Multi-Gigabit deployments with 2.5G access ports and a 10G SFP+ uplink. Product specifications and software features are subject to change without prior notice.

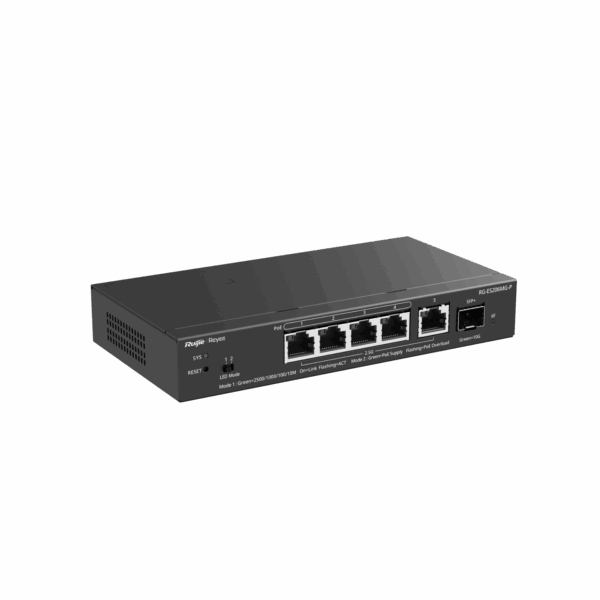

Important: Ruijie Reyee RG-ES206MG-P is a 6-port Multi-Gigabit Smart PoE Switch with a 70W PoE budget, 10G SFP+ uplink, PoE Watchdog, and Ruijie Cloud management—ideal for Wi-Fi 7 APs, CCTV, and enterprise networks.
