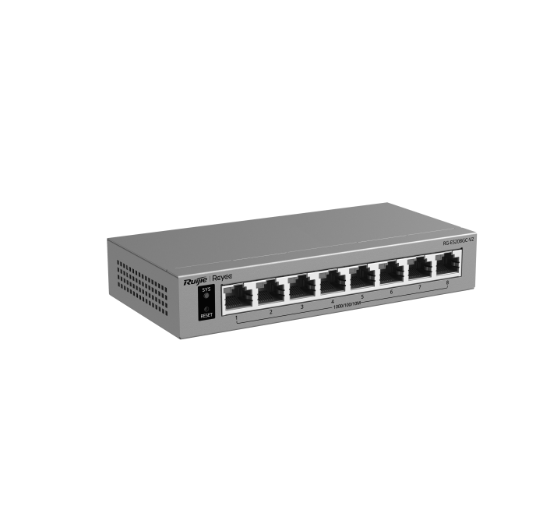

Ruijie Reyee RG-ES208GC-V2

8-Port Gigabit Smart Cloud Managed Switch

  • 8×10/100/1000Mbps Gigabit RJ45 ports
  • Layer 2 Smart Managed Switch with Ruijie Cloud Management
  • Supports VLAN, Port Isolation and Automatic Loop Prevention
  • 16Gbps switching capacity with 11.9Mpps forwarding rate
  • Supports CCTV Mode for easy network optimization
  • Fanless design with 6kV surge protection for reliable operation
หมวดหมู่: , , ป้ายกำกับ: ,

Specifications Ruijie Reyee RG-ES208GC-V2

Features Description
Device Type 8-Port Gigabit Smart Cloud Managed Non-PoE Switch
Ports 8 × 10/100/1000BASE-T RJ45 Ports
Switching Capacity 16Gbps
Forwarding Rate 11.9Mpps
MAC Address Table 2K Entries
Management Smart Cloud Managed via Ruijie Cloud / Reyee App
PoE Support Non-PoE
Surge Protection 6kV Port Surge Protection
Port Isolation Supported
Cooling Fanless Design
Application CCTV, Office, Hotel, Factory, Retail Store and SMB Network
Switch Type Layer 2 Smart Cloud Managed Switch
Network Ports 8 × Gigabit RJ45 Ports
Transmission Mode Store-and-Forward
Management Method Ruijie Cloud App / Ruijie Cloud Platform
Installation Desktop / Wall Mount
Housing Compact Plastic Enclosure
SMART FEATURES
Cloud Management Remote Monitoring, Configuration and Maintenance Anywhere
IP Camera Recognition Automatically Identifies IP Cameras and Optimizes CCTV Network Setup
Loop Prevention Automatic Loop Detection and Protection for Network Stability
VLAN Configuration Easy VLAN Setup via Ruijie Cloud App and Cloud Platform
Port Isolation Provides Network Segmentation and Enhanced Security
GENERAL
Power Supply 5V DC Power Adapter
Operating Temperature 0°C to 40°C
Dimensions 148 × 78 × 25mm
Warranty 3 Years

Note: Cloud management requires Internet access to connect with Ruijie Cloud service. Product specifications and software features are subject to change without prior notice.

Important: The Ruijie Reyee RG-ES208GC-V2 is an 8-port Gigabit smart cloud-managed non-PoE switch featuring 16Gbps switching capacity, 11.9Mpps forwarding rate, 6kV surge protection, IP camera recognition, automatic loop prevention, VLAN configuration via Ruijie Cloud App, port isolation, and fanless operation. It is suitable for CCTV, office, hotel, factory, retail, and SMB network deployments.

จัดจำหน่าย By บริษัทโฟกัส ซิสเต็ม แอนด์ ดีไซน์ ช่างติดเเละซ้อมกล้องวงจรปิด พัทยา ชลบุรี

Datasheet
