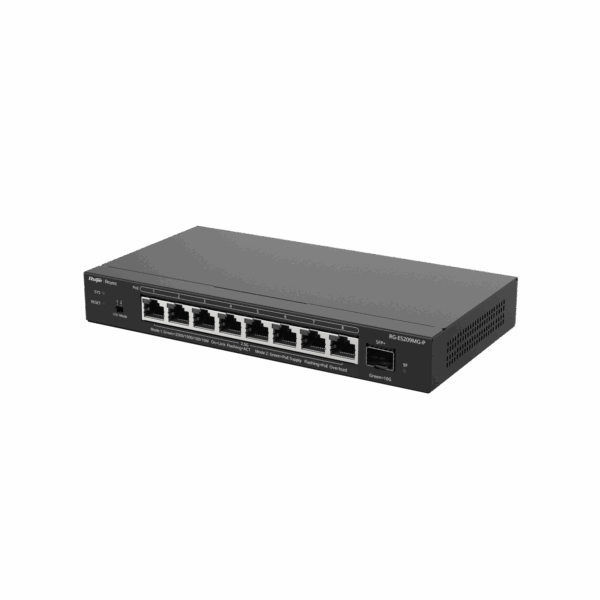

Ruijie Reyee RG-ES209MG-P

RG-ES209MG-P

Ruijie Reyee RG-ES209MG-P

9-Port 2.5G Smart Cloud Managed PoE Switch

  • 8×2.5Gbps PoE+ RJ45 ports with 1×10G SFP+ uplink
  • Supports IEEE 802.3af/at with 130W PoE budget
  • Layer 2 Smart Managed Switch with Ruijie Cloud Management
  • Supports Link Aggregation, PoE Watchdog and Port Isolation
  • 60Gbps switching capacity with 45Mpps forwarding rate
  • Fanless metal design ideal for Wi-Fi 7, CCTV and SMB networks
หมวดหมู่: , , ป้ายกำกับ: ,

Specifications Ruijie Reyee RG-ES209MG-P

Features Description
Device Type 9-Port Multi-Gigabit Smart Cloud Managed PoE Switch
Ports 8 × 2.5G PoE+ RJ45 Ports, 1 × 10G SFP+ Uplink Port
PoE Standard IEEE 802.3af / IEEE 802.3at
PoE Budget 130W Total PoE Budget
Switching Capacity 60Gbps
Forwarding Rate 45Mpps
MAC Address Table 8K Entries
Management Smart Cloud Managed via Ruijie Cloud / Reyee App / eWeb
Surge Protection 6kV Port Surge Protection
Application Wi-Fi 7, Enterprise, CCTV, Office, School, Retail Store and SMB Network
Switch Type Layer 2 Smart Cloud Managed Multi-Gigabit PoE Switch
Network Ports 8 × 2.5G PoE+ RJ45 Ports, 1 × 10G SFP+ Uplink
Transmission Mode Store-and-Forward
PoE Output Up to 30W per PoE Port
Installation Desktop / Rack Mount
Housing Metal Enclosure
SMART FEATURES
Cloud Management Lifetime Free Remote Monitoring and Configuration via Ruijie Cloud
10G SFP+ Uplink High-Speed Backbone Connectivity for Enterprise Networks
2.5G Multi-Gigabit Ports Optimized for Wi-Fi 6, Wi-Fi 6E and Wi-Fi 7 Access Points
Link Aggregation Supports Aggregation of up to 4 Ports for Higher Bandwidth and Redundancy
PoE Watchdog Automatically Detects and Restarts Unresponsive PoE Devices
Port Isolation Enhances Network Security by Isolating Downlink Ports
Lifetime Cloud Management Remote Monitoring, Configuration and Maintenance Anytime, Anywhere
GENERAL
Power Supply 100–240V AC, 50/60Hz
Operating Temperature 0°C to 40°C
Warranty 3 Years

Note: The RG-ES209MG-P is designed for high-performance Multi-Gigabit networking with eight 2.5G PoE+ ports and one 10G SFP+ uplink, making it ideal for Wi-Fi 7 and high-bandwidth applications. Product specifications and software features are subject to change without prior notice.

Important: Ruijie Reyee RG-ES209MG-P is a 9-port Smart Cloud Managed Multi-Gigabit PoE Switch featuring 8×2.5G PoE+ RJ45 ports and 1×10G SFP+ uplink for high-speed networking.

จัดจำหน่าย By บริษัทโฟกัส ซิสเต็ม แอนด์ ดีไซน์ ช่างติดเเละซ้อมกล้องวงจรปิด พัทยา ชลบุรี

Datasheet
