RG-ES211GS-LP

RG-ES211GS-LP

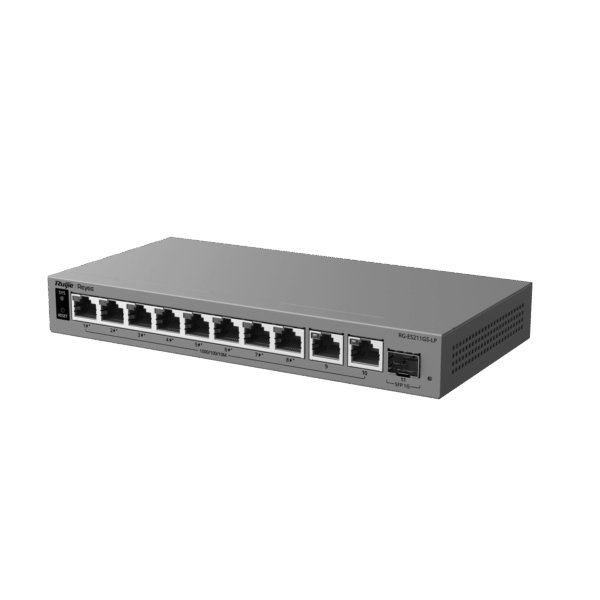

Ruijie Reyee RG-ES211GS-LP

11-Port Gigabit Smart Cloud Managed PoE Switch

  • 8×Gigabit PoE+ ports, 2×Gigabit RJ45 uplinks and 1×Gigabit SFP uplink
  • Supports IEEE 802.3af/at with 70W PoE budget
  • Layer 2 Smart Managed Switch with Ruijie Cloud Management
  • Supports PoE Watchdog, Perpetual PoE and Link Aggregation
  • 22Gbps switching capacity with 16.36Mpps forwarding rate
  • 6kV surge protection with fanless design for CCTV and SMB networks
หมวดหมู่: , , ป้ายกำกับ: ,

Specifications Ruijie Reyee RG-ES211GS-LP

Features Description
Device Type 11-Port Gigabit Smart Cloud Managed PoE Switch
Ports 8 × 10/100/1000BASE-T PoE+ RJ45 Ports, 2 × Gigabit RJ45 Uplink Ports, 1 × Gigabit SFP Uplink Port
PoE Standard IEEE 802.3af / IEEE 802.3at
PoE Budget 70W Total PoE Budget
Switching Capacity 22Gbps
Forwarding Rate 16.36Mpps
MAC Address Table 16K Entries
Management Smart Cloud Managed via Ruijie Cloud / Reyee App / eWeb
Surge Protection 6kV Port Surge Protection
Application CCTV, Office, Hotel, Factory, Retail Store and SMB Network
Switch Type Layer 2 Smart Cloud Managed PoE Switch
Network Ports 8 × Gigabit PoE+ Ports, 2 × Gigabit RJ45 Uplink Ports, 1 × Gigabit SFP Uplink Port
Transmission Mode Store-and-Forward
PoE Output Up to 30W per PoE Port
Installation Desktop / Wall Mount
Housing Metal Enclosure, Fanless Design
SMART FEATURES
Cloud Management Lifetime Free Remote Monitoring and Configuration via Ruijie Cloud
Flexible Uplink 2 × Gigabit RJ45 Uplink Ports and 1 × Gigabit SFP Port for Flexible Network Expansion
IPC Recognition Automatically Detects IP Cameras for Simplified CCTV Deployment
Perpetual PoE Keeps Connected PoE Devices Powered During Switch Restart
PoE Watchdog Automatically Detects and Restarts Unresponsive PoE Devices
Link Aggregation Supports Static Link Aggregation for Higher Bandwidth and Redundancy
Port Isolation Enhances Network Security by Isolating Downlink Ports
GENERAL
Power Supply 100–240V AC, 50/60Hz
Maximum Power Consumption 78W
Operating Temperature 0°C to 40°C
Dimensions 205 × 105 × 28mm
Warranty 3 Years

Note: The RG-ES211GS-LP is designed for reliable Gigabit PoE networking with 8 PoE+ ports, flexible uplink options, and lifetime cloud management. Product specifications and software features are subject to change without prior notice.

Important: Ruijie Reyee RG-ES211GS-LP is an 11-port Gigabit Smart PoE Switch with a 70W PoE budget, PoE Watchdog, Link Aggregation, and Ruijie Cloud management—ideal for CCTV, offices, and SMB networks.
