| Features |
Description |
| Device Type |

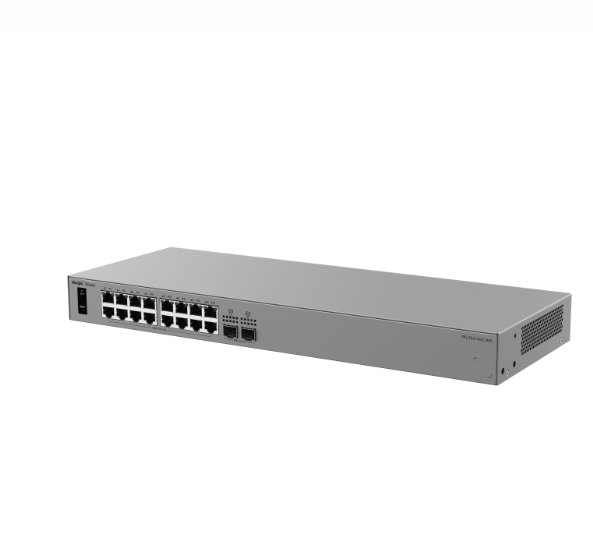

16-Port Gigabit Smart Cloud Managed Non-PoE Switch |
| Ports |
16 × 10/100/1000BASE-T RJ45 Ports, 2 × 2.5G SFP Uplink Ports |
| Switching Capacity |
42Gbps |
| Forwarding Rate |
31.25Mpps |
| MAC Address Table |
8K Entries |
| Management |
Smart Cloud Managed via Ruijie Cloud / Reyee App |
| PoE Support |
Non-PoE |
| Uplink Interface |
2 × 2.5GE SFP Ports |
| Surge Protection |
6kV Port Surge Protection |
| Cooling |
Fanless Design |
| Application |
CCTV, Office, Hotel, Factory, Retail Store and SMB Network |
| Switch Type |
Layer 2 Smart Cloud Managed Switch |
| Network Ports |
16 × Gigabit RJ45 Ports + 2 × 2.5G SFP Ports |
| Transmission Mode |
Store-and-Forward |
| Management Method |
Ruijie Cloud App / Ruijie Cloud Platform |
| Installation |
Rack Mount / Desktop |
| Housing |
Metal Enclosure |
| SMART FEATURES |
| Cloud Management |
Remote Monitoring, Configuration and Maintenance Anywhere |
| 2.5G Uplink |
High-Speed Uplink for NAS, Server and Network Backbone Connections |
| ERPS |
Supports Ethernet Ring Protection Switching for Network Reliability |
| Static Link Aggregation |
Combines Multiple Links for Higher Bandwidth and Redundancy |
| IP Camera Recognition |
Automatically Identifies IP Cameras for CCTV Network Optimization |
| VLAN Configuration |
Easy VLAN Setup via Ruijie Cloud App |
| Port Isolation |
Provides Network Segmentation and Enhanced Security |
| GENERAL |
| Power Supply |
100–240V AC, 50/60Hz |
| Operating Temperature |
0°C to 40°C |
| Dimensions |
280 × 126 × 44mm |
| Warranty |
3 Years |
Note: Cloud management requires Internet access to connect with Ruijie Cloud service. Product specifications and software features are subject to change without prior notice.
Important: The Ruijie Reyee RG-ES216GC2MS is a 16-port Gigabit smart cloud-managed non-PoE switch featuring 16 Gigabit RJ45 ports, 2 × 2.5G SFP uplinks, 42Gbps switching capacity, 31.25Mpps forwarding rate, ERPS, static link aggregation, IP camera recognition, VLAN management, port isolation, 6kV surge protection, and fanless design. It is suitable for CCTV, office, hotel, factory, retail, and SMB network deployments.
