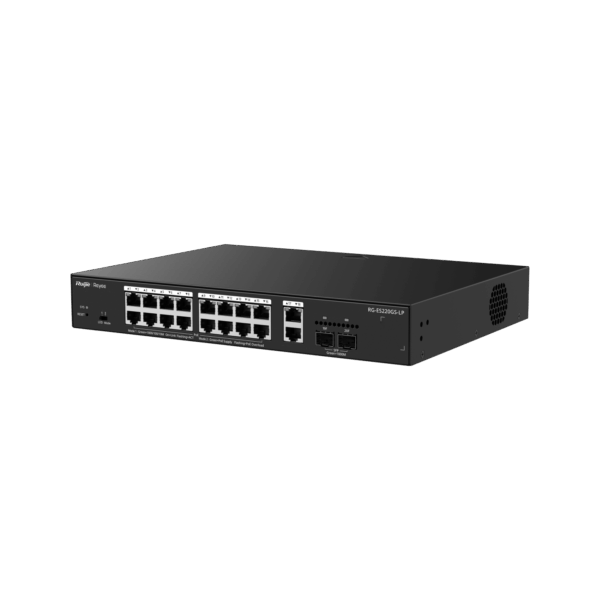

Ruijie Reyee RG-ES220GS-LP

20-Port Gigabit Smart Cloud Managed PoE Switch

  • 16×Gigabit PoE+ ports, 2×Gigabit RJ45 uplinks and 2×Gigabit SFP uplinks
  • Supports IEEE 802.3af/at with 130W PoE budget
  • Layer 2 Smart Managed Switch with Ruijie Cloud Management
  • Supports PoE Watchdog, Port Isolation and 250m Extend Mode
  • 40Gbps switching capacity with 29.76Mpps forwarding rate
  • Fanless metal design ideal for CCTV, SMB and enterprise networks
หมวดหมู่: , , ป้ายกำกับ:

Specifications Ruijie Reyee RG-ES220GS-LP

Features Description
Device Type 20-Port Gigabit Smart Cloud Managed PoE Switch
Ports 16 × 10/100/1000BASE-T PoE+ RJ45 Ports, 2 × Gigabit RJ45 Uplink Ports, 2 × Gigabit SFP Uplink Ports
PoE Standard IEEE 802.3af / IEEE 802.3at
PoE Budget 130W Total PoE Budget
Switching Capacity 40Gbps
Forwarding Rate 29.76Mpps
MAC Address Table 16K Entries
Management Smart Cloud Managed via Ruijie Cloud / Reyee App / eWeb
Surge Protection 6kV Port Surge Protection
Application CCTV, Office, Hotel, Factory, Retail Store and SMB Network
Switch Type Layer 2 Smart Cloud Managed PoE Switch
Network Ports 16 × Gigabit PoE+ Ports, 2 × Gigabit RJ45 Uplink Ports, 2 × Gigabit SFP Uplink Ports
Transmission Mode Store-and-Forward
PoE Output Up to 30W per PoE Port
Installation Desktop / Rack Mount
Housing Metal Enclosure, Fanless Design
SMART FEATURES
Cloud Management Lifetime Free Remote Monitoring and Configuration via Ruijie Cloud
Flexible Uplink 2 × Gigabit RJ45 Uplink Ports and 2 × Gigabit SFP Ports for Flexible Network Expansion
IPC Recognition Automatically Detects IP Cameras for Simplified CCTV Deployment
Automatic Loop Prevention Prevents Network Loops to Ensure Service Continuity
PoE Watchdog Automatically Detects and Restarts Unresponsive PoE Devices
Extend Mode Supports PoE Transmission up to 250 Meters for CCTV Deployment
Port Isolation Enhances Network Security by Isolating Downlink Ports
Intelligent PoE Adaptive Automatically Adjusts Power Allocation for Stable PoE Operation
GENERAL
Power Supply 100–240V AC, 50/60Hz
Operating Temperature 0°C to 40°C
Warranty 3 Years

Note: The RG-ES220GS-LP provides 16 Gigabit PoE+ ports with a 130W PoE budget, dual Gigabit RJ45 uplinks, dual Gigabit SFP uplinks, and lifetime Ruijie Cloud management. Product specifications and software features are subject to change without prior notice.

Important: Ruijie Reyee RG-ES220GS-LP is a 20-port Gigabit Smart PoE Switch with a 130W PoE budget, PoE Watchdog, 250m Extend Mode, Port Isolation, and Ruijie Cloud management—ideal for CCTV and SMB networks.

จัดจำหน่าย By บริษัทโฟกัส ซิสเต็ม แอนด์ ดีไซน์ ช่างติดเเละซ้อมกล้องวงจรปิด พัทยา ชลบุรี

Datasheet
