RG-ES220GS-P-V2

RG-ES220GS-P-V2

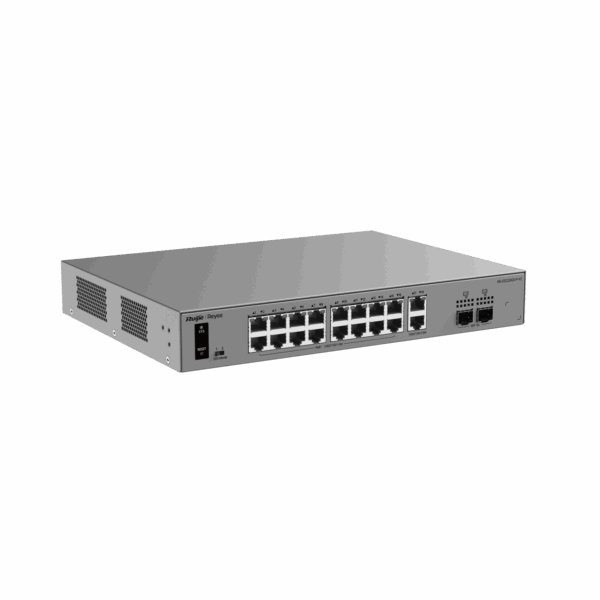

Ruijie Reyee RG-ES220GS-P-V2

20-Port Gigabit Smart Cloud Managed PoE Switch

  • 16×Gigabit PoE+ ports, 2×Gigabit RJ45 uplinks and 2×Gigabit SFP uplinks
  • Supports IEEE 802.3af/at with 250W PoE budget
  • Layer 2 Smart Managed Switch with Ruijie Cloud Management
  • Supports AI PoE Watchdog, Perpetual PoE and One-Click CCTV Mode
  • 40Gbps switching capacity with 29.76Mpps forwarding rate
  • 6kV surge protection with metal rackmount design for CCTV and SMB networks
หมวดหมู่: , , ป้ายกำกับ:

Specifications Ruijie Reyee RG-ES220GS-P-V2

Features Description
Device Type 20-Port Gigabit Smart Cloud Managed PoE Switch
Ports 16 × 10/100/1000BASE-T PoE+ RJ45 Ports, 2 × Gigabit RJ45 Uplink Ports, 2 × Gigabit SFP Uplink Ports
PoE Standard IEEE 802.3af / IEEE 802.3at
PoE Budget 250W Total PoE Budget
Switching Capacity 40Gbps
Forwarding Rate 29.76Mpps
MAC Address Table 16K Entries
Management Smart Cloud Managed via Ruijie Cloud / Reyee App / eWeb
Surge Protection 6kV Port Surge Protection
Application CCTV, Office, Hotel, Factory, Retail Store and SMB Network
Switch Type Layer 2 Smart Cloud Managed PoE Switch
Network Ports 16 × Gigabit PoE+ Ports, 2 × Gigabit RJ45 Uplink Ports, 2 × Gigabit SFP Uplink Ports
Transmission Mode Store-and-Forward
PoE Output Up to 30W per PoE Port
Installation Desktop / Rack Mount
Housing Metal Enclosure, Fanless Design
SMART FEATURES
Cloud Management Lifetime Free Remote Monitoring and Configuration via Ruijie Cloud
Flexible Uplink 2 × Gigabit RJ45 Uplink Ports and 2 × Gigabit SFP Ports for Flexible Network Expansion
IPC Recognition Automatically Detects IP Cameras for Enhanced CCTV Network Management
Smart Protection One-Click Smart Protection Prevents Common Network Issues and Ensures Service Continuity
Perpetual PoE Keeps Connected PoE Devices Powered During Switch Restart
PoE Watchdog Automatically Detects and Restarts Unresponsive PoE Devices
Port Isolation Enhances Network Security by Isolating Downlink Ports
GENERAL
Power Supply 100–240V AC, 50/60Hz
Operating Temperature 0°C to 40°C
Dimensions 440 × 208 × 44mm
Warranty 3 Years

Note: The RG-ES220GS-P-V2 is designed for medium to large PoE deployments with a 250W PoE budget, dual Gigabit RJ45 uplinks, dual Gigabit SFP uplinks, Smart Protection, and lifetime Ruijie Cloud management. Product specifications and software features are subject to change without prior notice.

Important: Ruijie Reyee RG-ES220GS-P-V2 is a 20-port Gigabit Smart PoE Switch with a 250W PoE budget, PoE Watchdog, Smart Protection, Port Isolation, and Ruijie Cloud management—ideal for CCTV and SMB networks.

จัดจำหน่าย By บริษัทโฟกัส ซิสเต็ม แอนด์ ดีไซน์ ช่างติดเเละซ้อมกล้องวงจรปิด พัทยา ชลบุรี

Datasheet
