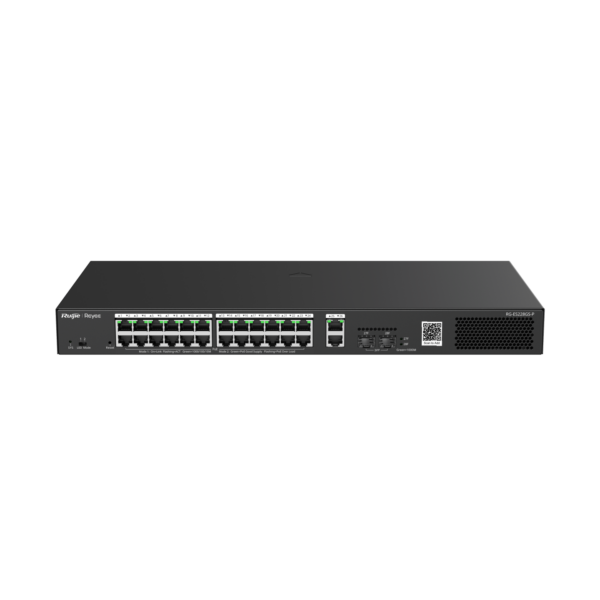

Specifications Ruijie Reyee RG-ES228GS-P
| Features | Description |
|---|---|
| Product Type | Layer 2 Smart Cloud Managed PoE+ Switch |
| Series | RG-ES200 Series |
| Total Ports | 28 Ports |
| PoE+ Ports | 24 × 10/100/1000BASE-T PoE+ |
| RJ45 Uplink Ports | 2 × 10/100/1000BASE-T |
| SFP Ports | 2 × 1GE SFP |
| PoE Standard | IEEE 802.3af/at |
| PoE Power Budget | 370W |
| Switching Capacity | 56Gbps |
| Forwarding Rate | 41.6Mpps |
| Management | Ruijie Cloud / Ruijie Reyee App / Web |
| HARDWARE | |
|---|---|
| PoE Downlink Ports | 24 × 10/100/1000BASE-T PoE+ |
| RJ45 Ports | 2 × 10/100/1000BASE-T |
| SFP Uplink Ports | 2 × 1GE SFP |
| Total RJ45 Ports | 26 |
| Total Optical Ports | 2 |
| PoE Standard | IEEE 802.3af / IEEE 802.3at |
| PoE Power Budget | 370W |
| PoE Power Pins | 1–2 (+), 3–6 (-) |
| PERFORMANCE | |
|---|---|
| Switching Capacity | 56Gbps |
| Forwarding Rate | 41.6Mpps |
| MAC Address Table | 8K |
| Packet Buffer | 4Mb |
| PoE Power Budget | 370W |
| NETWORK FEATURES | |
|---|---|
| VLAN | IEEE 802.1Q VLAN |
| VLAN Configuration | Supported via Ruijie Cloud App |
| Port Isolation | Supported |
| Loop Prevention | Automatic Loop Prevention |
| Flow Control | Supported |
| Port Mirroring | Supported |
| Storm Control | Supported |
| Port Speed Limiting | Supported |
| Cable Detection | Supported |
| POE FEATURES | |
|---|---|
| PoE Standard | IEEE 802.3af / IEEE 802.3at |
| PoE Budget | 370W |
| PoE Ports | 24 |
| PoE Watchdog | Supported |
| Intelligent PoE Adaptive | Supported |
| Remote Port Reboot | Supported |
| IP Camera Recognition | Supported |
| IP Camera Offline Alarm | Supported |
| PoE Device Detection | Automatic |
| CCTV FEATURES | |
|---|---|
| IP Camera Recognition | Supported |
| NVR Recognition | Supported |
| Camera Offline Alarm | Supported |
| Individual Port Reboot | Supported |
| Extended Transmission | Up to 250m* |
| Flexible Extend Mode | Supported |
| MANAGEMENT | |
|---|---|
| Cloud Management | Ruijie Cloud |
| Mobile Management | Ruijie Reyee App |
| Web Management | Supported |
| Cloud Configuration | Supported |
| Remote Management | Supported |
| SON | Zero-Touch Cloud Provisioning |
| Network Monitoring | Switch Statistics Monitoring via Cloud |
| PROTECTION | |
|---|---|
| Loop Protection | Automatic Loop Prevention |
| Port Isolation | Supported |
| PoE Protection | Supported |
| PoE Watchdog | Supported |
| POWER & GENERAL | |
|---|---|
| Power Supply | Internal AC Power Supply |
| PoE Power Budget | 370W |
| Operating Temperature | 0°C to 40°C |
| Installation | Desktop / Rack Mount |
| Warranty | 3 Years |
Note: The Ruijie Reyee RG-ES228GS-P is a 28-port Layer 2 Smart Cloud Managed PoE+ Switch featuring 24 × Gigabit PoE+ ports, 2 × Gigabit RJ45 ports and 2 × 1GE SFP uplink ports. It provides a 370W PoE power budget, 56Gbps switching capacity and 41.6Mpps forwarding rate. The switch supports IEEE 802.3af/at, VLAN, port isolation, automatic loop prevention, IP camera/NVR recognition, remote port reboot and Ruijie Cloud management.
Important: The Ruijie Reyee RG-ES228GS-P is a 28-Port Gigabit Smart Cloud Managed PoE+ Switch featuring 24 × Gigabit PoE+ ports, 2 × Gigabit RJ45 ports and 2 × 1GE SFP ports. It provides a total 370W PoE power budget, 56Gbps switching capacity and 41.6Mpps forwarding performance. The switch supports IEEE 802.3af/at, IEEE 802.1Q VLAN, automatic loop prevention, IP camera recognition, PoE Watchdog and Ruijie Cloud management.
